1.7.3 Floppy disk drive

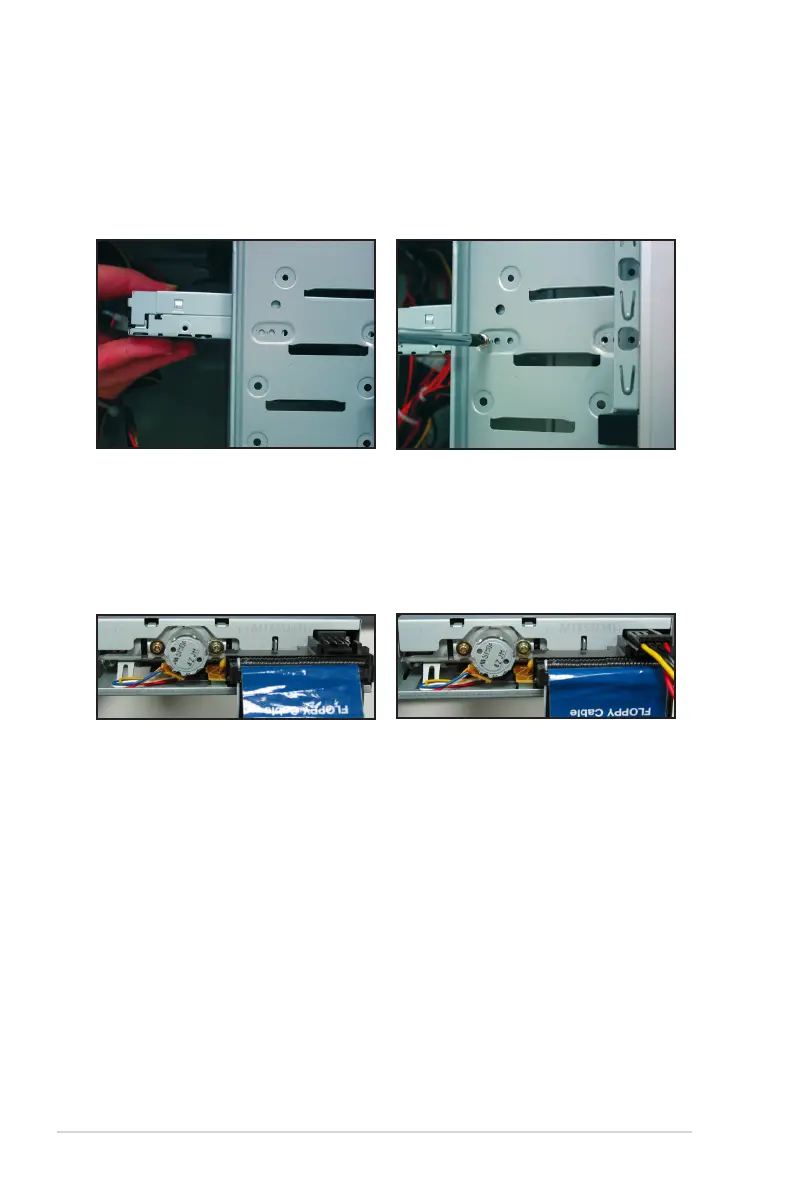

1. Remove the dummy cover and
insert the oppy disk drive into the
bay.
2. Align with the screw holes and
secure the disk drive with screws.
3. Orient and plug the oppy interface
cable into the oppy disk drive. The
red stripe on the cable is the pin1
end and should match pin1 on the
oppy disk drive.
4. Connect the oppy power cable to
the connector at the back of the
oppy disk drive.
