ASUS P8H77-I
1-29
7. Intel
®
H77 Serial ATA 3.0Gb/s connectors (7-pin SATA3G_1~4 [blue])
These connectors connect to Serial ATA 3.0 Gb/s hard disk drives and optical drives via
Serial ATA 3.0 Gb/s signal cables.
If you installed Serial ATA hard disk drives, you can create a RAID 0, 1, 5, and 0+1(10)
congurations with the Intel
®
Rapid Storage Technology through the onboard Intel
®
H77
chipset.
These connectors are set to [AHCI] by default. If you intend to create a Serial ATA RAID
set using these connectors, set the SATA Mode Selection item in the BIOS to [RAID].
See section 2.5.3 SATA Conguration for details.
Before creating a RAID set, refer to the RAID Supplementary Guide included in the
folder named Manual in the support DVD.
You must install Windows
®
XP Service Pack 3 or later version before using Serial ATA
hard disk drives. The Serial ATA RAID feature (RAID 0, 1, 5, and 10) is available only if
you are using Windows
®
XP SP3 or later version.
When using hot-plug and NCQ, set the
SATA Mode Selection item in the BIOS to
[AHCI]. See section 2.5.3 SATA Conguration for details.
P8H77-
I
SATA3G_2
GND
RSATA_TXP2
RSATA_TXN2
GND
RSATA_RXN2
RSATA_RXP2
GND
SATA3G_1
GND
RSATA_TXP1
RSATA_TXN1
GND
RSATA_RXN1
RSATA_RXP1
GND
SATA3G_3
GND
RSATA_TXP3
RSATA_TXN3
GND
RSATA_RXN3
RSATA_RXP3
GND
SATA3G_4
GND
RSATA_TXP4
RSATA_TXN4
GND
RSATA_RXN4
RSATA_RXP4
GND

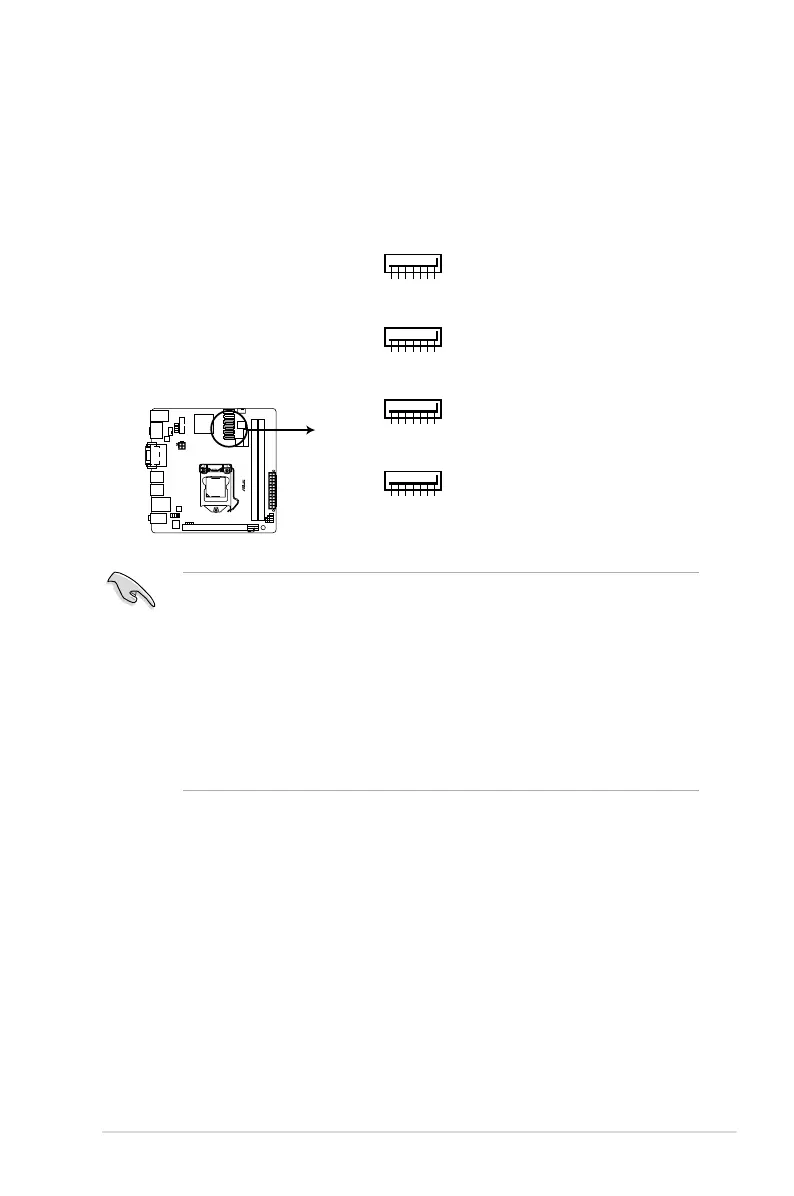

P8H77-I SATA 3.0Gb/s connectors
