Asus P8H77-M User Manual

1-50 Chapter 1: Product introduction
11. Extend volume setup is completed. Click Finish to recover the Intel
®
Rapid Start
Technology partition.
12. Reboot the system after deleting the partition.
13. Go to
Start > Control Panel > Programs > Programs and Features > to remove the
Intel
®
Rapid Start Manager for the complete deletion of Intel
®
Rapid Start Technology.
1.14.4 Intel
®
Smart Connect Technology
The Intel
®
Smart Connect Technology is a feature that provides the latest content updates
and energy efciency to your computer’s platform.
Once installed and activated, the Intel
®
Smart Connect Technology periodically wakes up the
system from sleeping mode, performs user state gathering, and initiates re-entry to sleeping
mode to wake-up after a set time interval.
• Intel
®
Smart Connect Technology supports Windows
®
Live Mail, Microsoft Outlook, and
Seesmic applications.
• It is necessary to enable the items of the PCH Conguration in the BIOS before applying
the Intel
®
Smart Connect Technology. Go to Advanced Mode > Advanced > PCH
Conguration, and enable the Intel
®
Smart Connect Technology.
Installing the Intel
®
Smart Connect Technology
1. Place the support DVD to the optical drive.
2. Go to
Utilities, and click Intel
®
Smart Connect Technology.
3. As the setup wizard appears, click
Next to begin the setup.
4. Tick
I accept the terms in the License Agreement, and click Next.

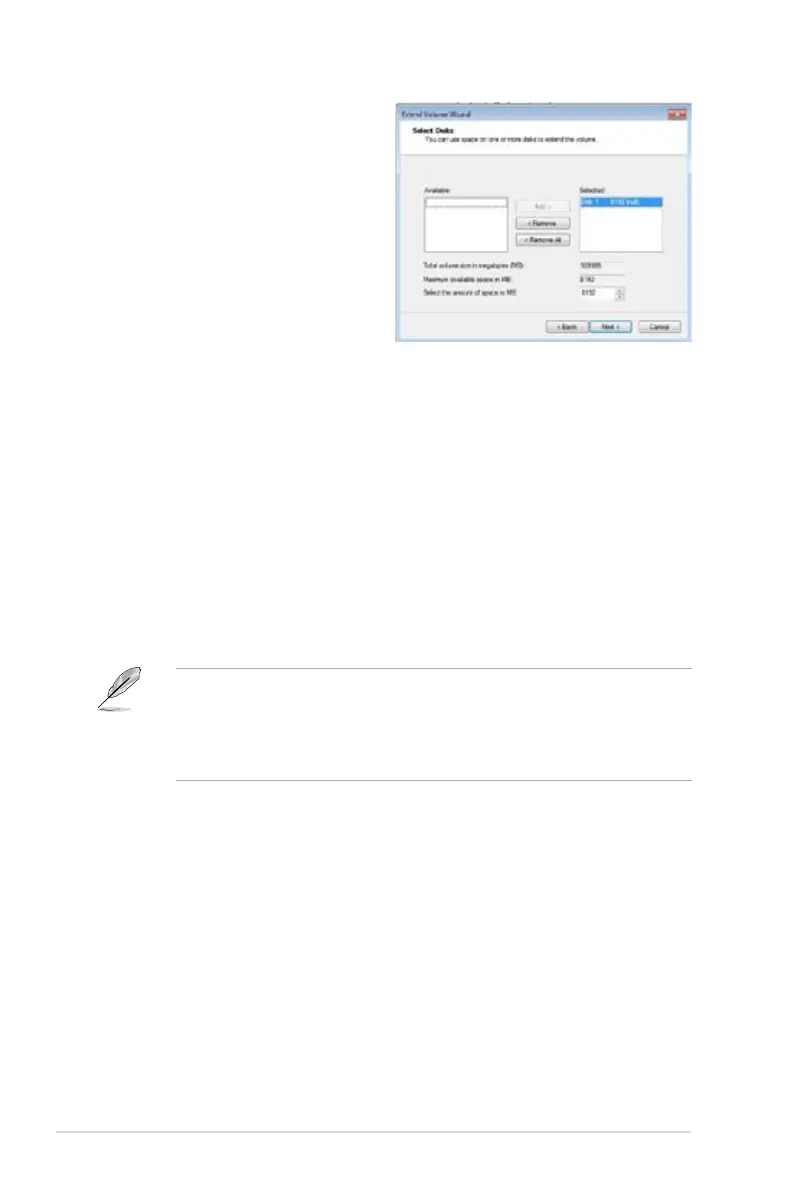

10. Click Next after selecting the default
selected disk.

Asus P8H77-M Specifications

General

ECC	No
Non-ECC	Yes
Memory voltage	1.5 V
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR3-SDRAM
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1800, 1866, 2000, 2133, 2200 MHz
Supported memory module capacities	16GB, 1GB, 2GB, 4GB, 8GB
System bus rate	5 GT/s
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
Maximum number of SMP processors	1
USB 2.0 connectors	3
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC887
Cooling type	Passive
Component for	PC
Power source type	ATX
Motherboard chipset	Intel H77
PC health monitoring	CPU, FAN, Temperature
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA II, SATA III
Cables included	SATA
Graphics card	HD Graphics
OpenGL version	3.2
DirectX version	11
Maximum resolution	2048 x 1536 pixels
Maximum graphics card memory	1696 MB
Parallel processing technology support	2-Way CrossFireX, LucidLogix Virtu, Quad-GPU CrossFireX
PCI Express slots version	2.0, 3.0
PCI Express configurations	1x4, 1x16
LAN controller	Realtek RTL8111F
Wi-Fi standards	Not supported
Networking features	Gigabit LAN
Ethernet interface type	Gigabit Ethernet
BIOS type	EFI AMI
ACPI version	2.0a
BIOS memory size	64 Mbit

Weight and Dimensions

Width	245 mm
