2.3.8 Front I/O Connector
IDE_LED
POWER SW
RESET SW
IDE_LED-
IDE_LED+
PWR
Reset
Ground
Ground
1 2
USB
AAFP

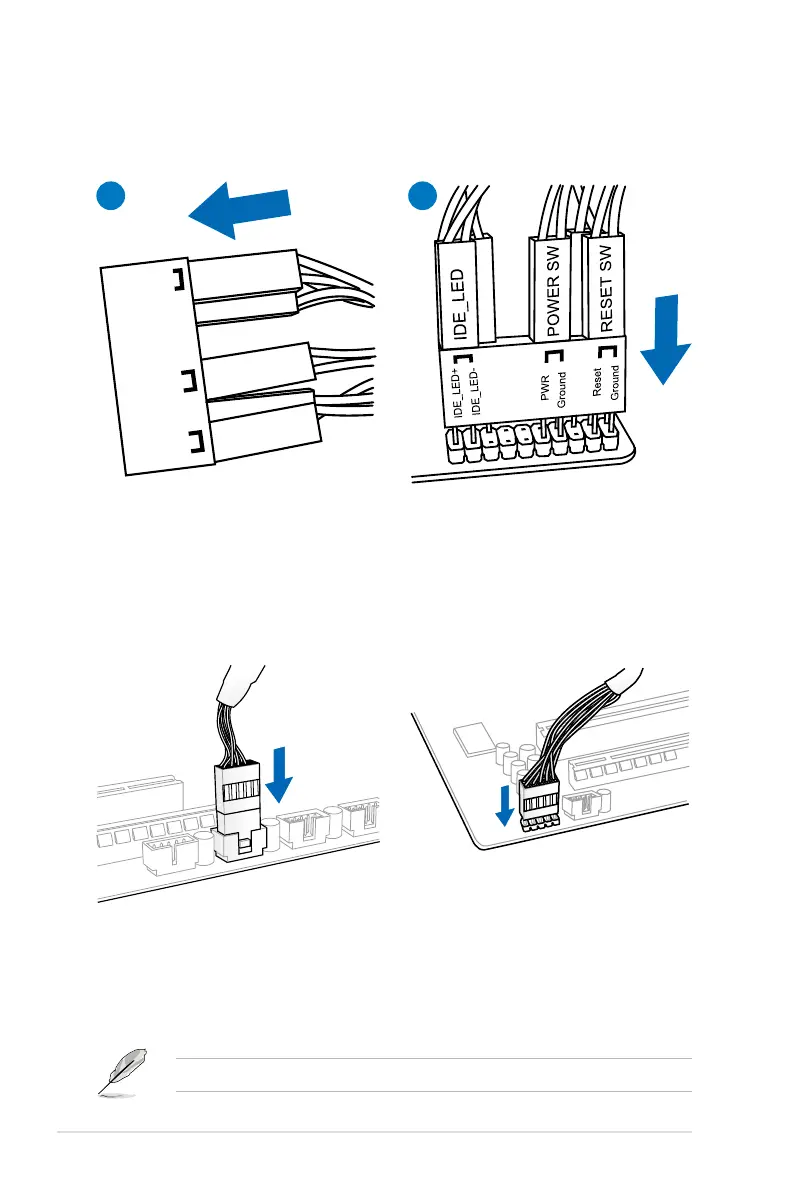

To install ASUS Q-Connector
To install USB Connector
To install front panel audio
connector
The actual location may vary with motherboards.
