Asus P8Z77-V LX - Expansion Slots

ASUS P8Z77-V LX 2-13
Chapter 2

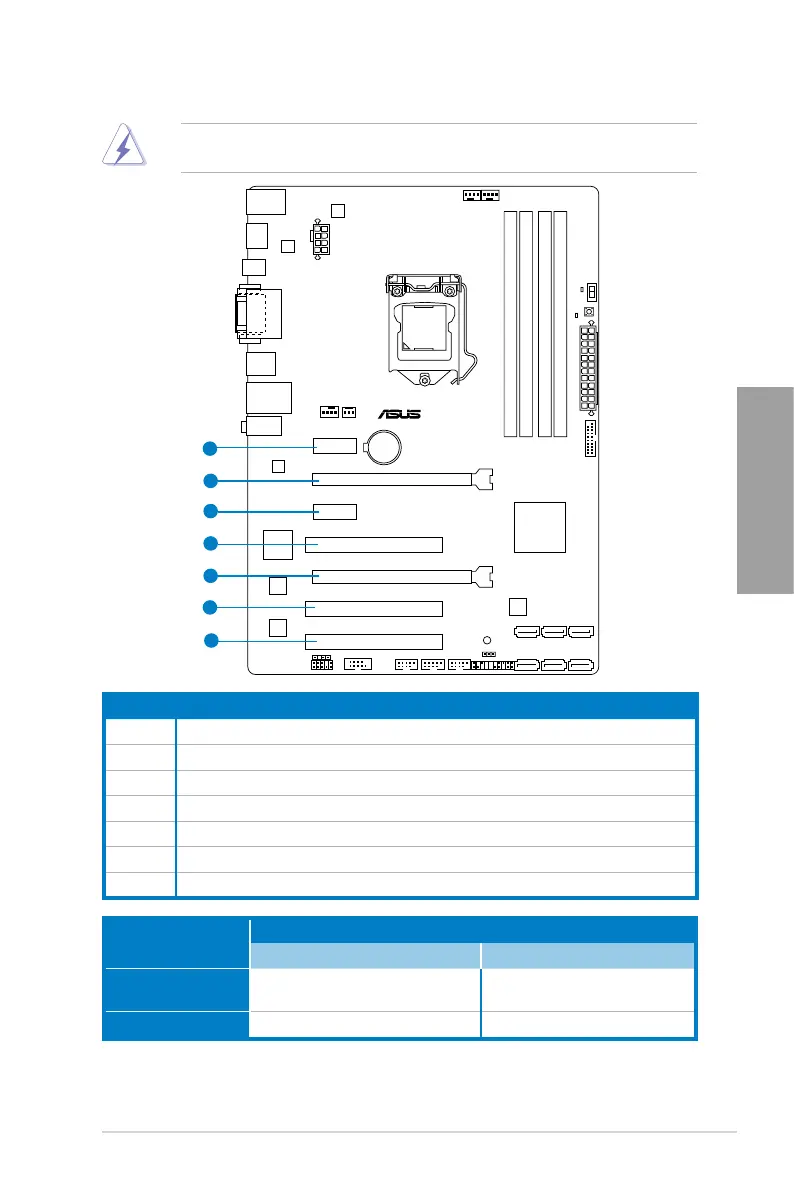

2.2.4 Expansion slots
Ensure to unplug the power cord before adding or removing expansion cards. Failure to do
so may cause you physical injury and damage motherboard components.
Slot No. Slot Description
1 PCIe 2.0 x1_1 slot
2 PCIe 3.0/2.0 x16_1 slot [blue] (at x16 mode)
3 PCIe 2.0 x1_2 slot
4 PCI slot_1
5 PCIe 2.0 x16_2 slot [black] (at x4 mode)
6. PCI slot_2
7. PCI slot_3
VGA conguration
PCI Express operating mode
PCIe 3.0/2.0 x16_1 PCIe 2.0 x16_2
Single VGA/PCIe card
x16
(Recommend for single VGA)
N/A
Dual VGA/PCIe card
x16 x4
P8Z77-V LX
LGA1155
1
2
3
4
5
6
7
