Asus P8Z77-V LX - Rear Panel Connection

ASUS P8Z77-V LX 2-37
Chapter 2

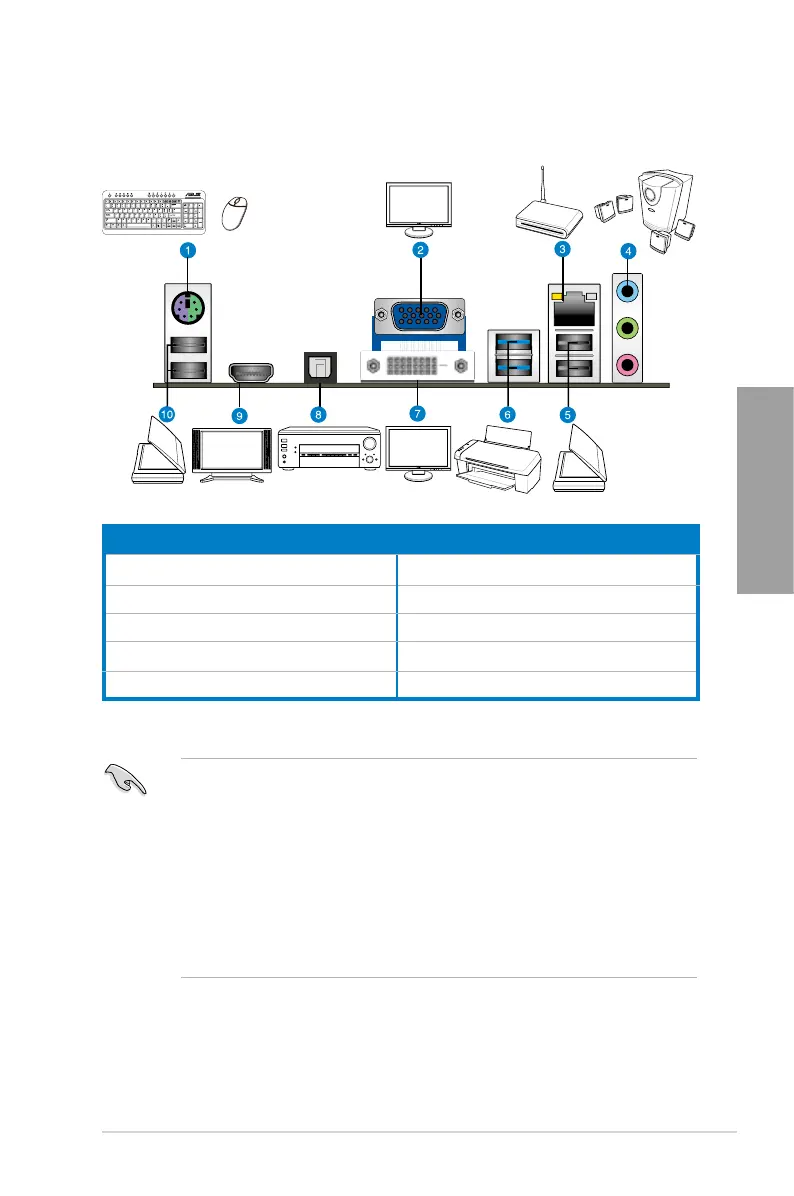

2.3.10 Rear panel connection
• Due to USB 3.0 controller limitations, USB 3.0 devices can only be used under
Windows
®
OS environment and after the USB 3.0 driver installation.
• USB 3.0 devices can only be used for data storage only.
• We strong recommend that you connect USB 3.0 devices to USB 3.0 ports for faster and
better performance from your USB 3.0 devices.
• This motherboard comes with multiple VGA outputs that feature desktop extension on
two monitors. You can connect two monitors to any two of the onboard VGA, DVI-D,
and HDMI ports.
• DVI-D cannot be converted to output RGB signal to CRT and is not compatible with
DVI-I.
* and **: Refer to the tables on the next page for LAN port LED and audio port denitions.
Rear panel connectors
1. PS/2 Keyboard/Mouse COMBO port 6. USB 3.0 ports 1 and 2
2.
Video Graphics Adapter (VGA) port 7. DVI port
3.
Realtek
®
LAN (RJ-45) port* 8. Optical S/PDIF Out port
4.
Audio I/O ports** 9. HDMI port
5. USB 2.0 ports 1 and 2 10. USB 2.0 ports 3 and 4
