2-24
Chapter 2: Hardware information
2.8.2 Internal connectors

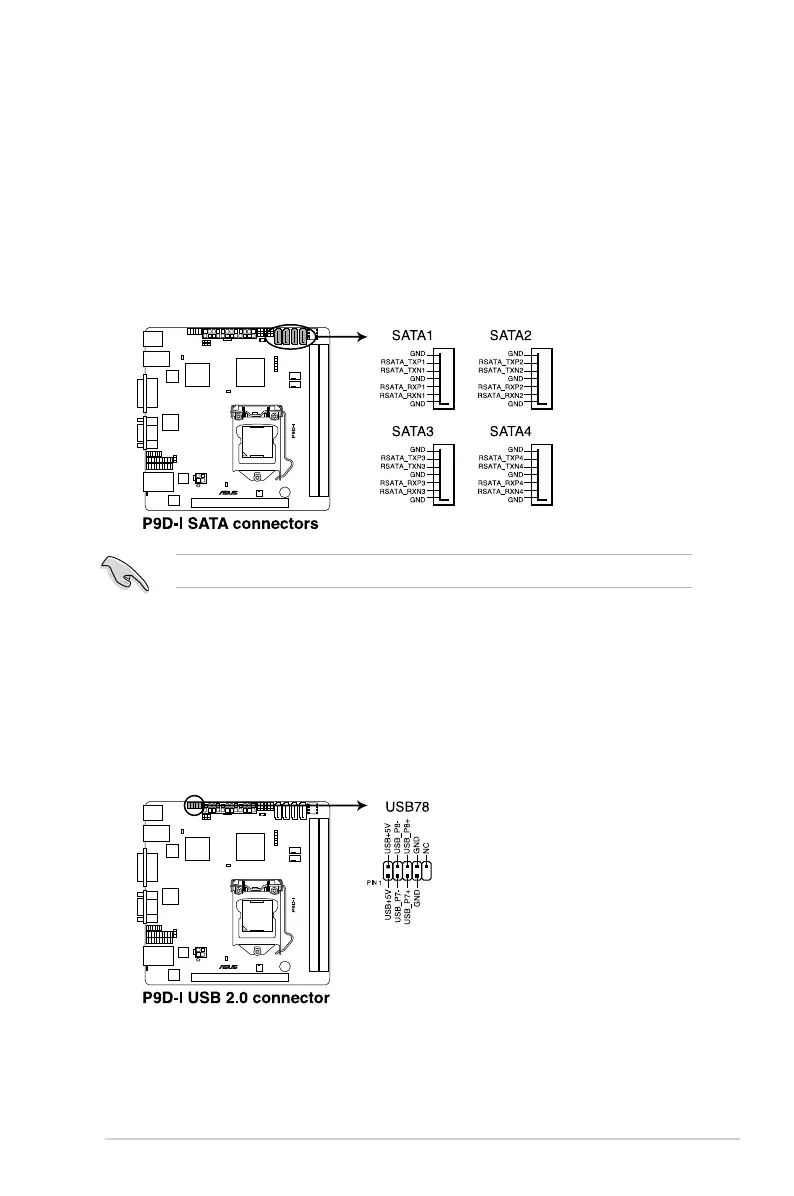

1. Serial ATA 6.0/3.0 Gb/s connectors
(7-pin SATA 6Gbps_
1-2 connector [Light Blue])
(7-pin SATA 3Gbps_3-4 connector [Black])
Supported by the Intel
®
C222 chipset, these connectors are for the Serial ATA signal
cables for Serial ATA hard disk drives that allows up to 6Gb/s or 3Gb/s of data transfer
rate.
If you installed Serial ATA hard disk drives, you can create a RAID 0, RAID 1, RAID 10,
or RAID 5 configuration.
The actual data transfer rate depends on the speed of Serial ATA hard disks installed.
2. USB 2.0 connector (10-1 pin USB78)
These connectors are for USB 2.0 ports. Connect the USB module cables to these
connectors. These USB connectors comply with USB 2.0 specification that supports up
to 480 Mbps connection speed.
