Asus PG49WCD - Page 17

CONFIDENTIAL – DO NOT COPY
Page 13 / 20
File No. SG-0000946

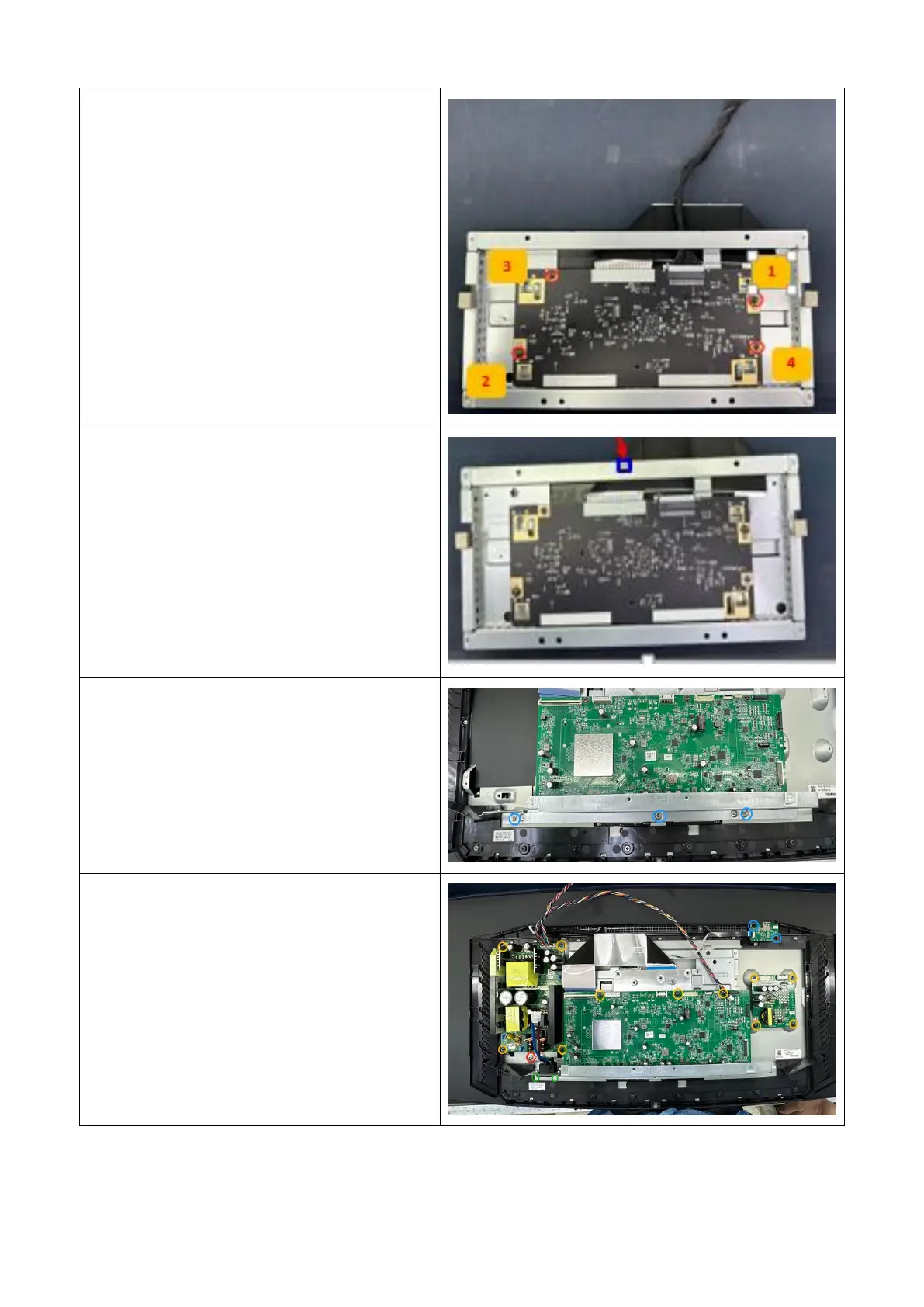

13-1. 锁 T-CON 板 4PCS 螺丝
13-1. Lock T-CON board with 4 screws
14-1. 贴导电泡棉 1PCS
14-1. Apply conductive foam 1PCS
15-1. 定位摆放锁主板 BKT3pcs 螺丝
15-1. Positioning and placing lock
motherboard BKT3pcs screws
16-1. 接地 1PCS+AC 接口 2PCS
16-1. Grounding 1PCS+AC interface
2PCS
16-2. 锁电源板 4pcs+主板 3pcs+小板
4PCS
16-2. Lock 4pcs of power board+3pcs of
motherboard+4pcs of small board
