3. Disassembly and Assembly Procedures
3.1 Disassembly SOP
Preparation before disassemble:
1. The person who repairs the machine must wear an electrostatic ring and gloves.
2. Make sure that the repaired table is clean before repairing.
3. Make sure the torque of the screw is correct.
4. Disconnect the AC power and DC power jack before disassembly MNT.
5. Make sure power supply is use correct.( Spec: 220
6. After repair is completed, turn it on again to confirm that the MNT display is normal
Warning:
Please follow this service manual use of substitute replacement parts which do not have
the same, specified safety characteristics, might create shock fire or other hazards.

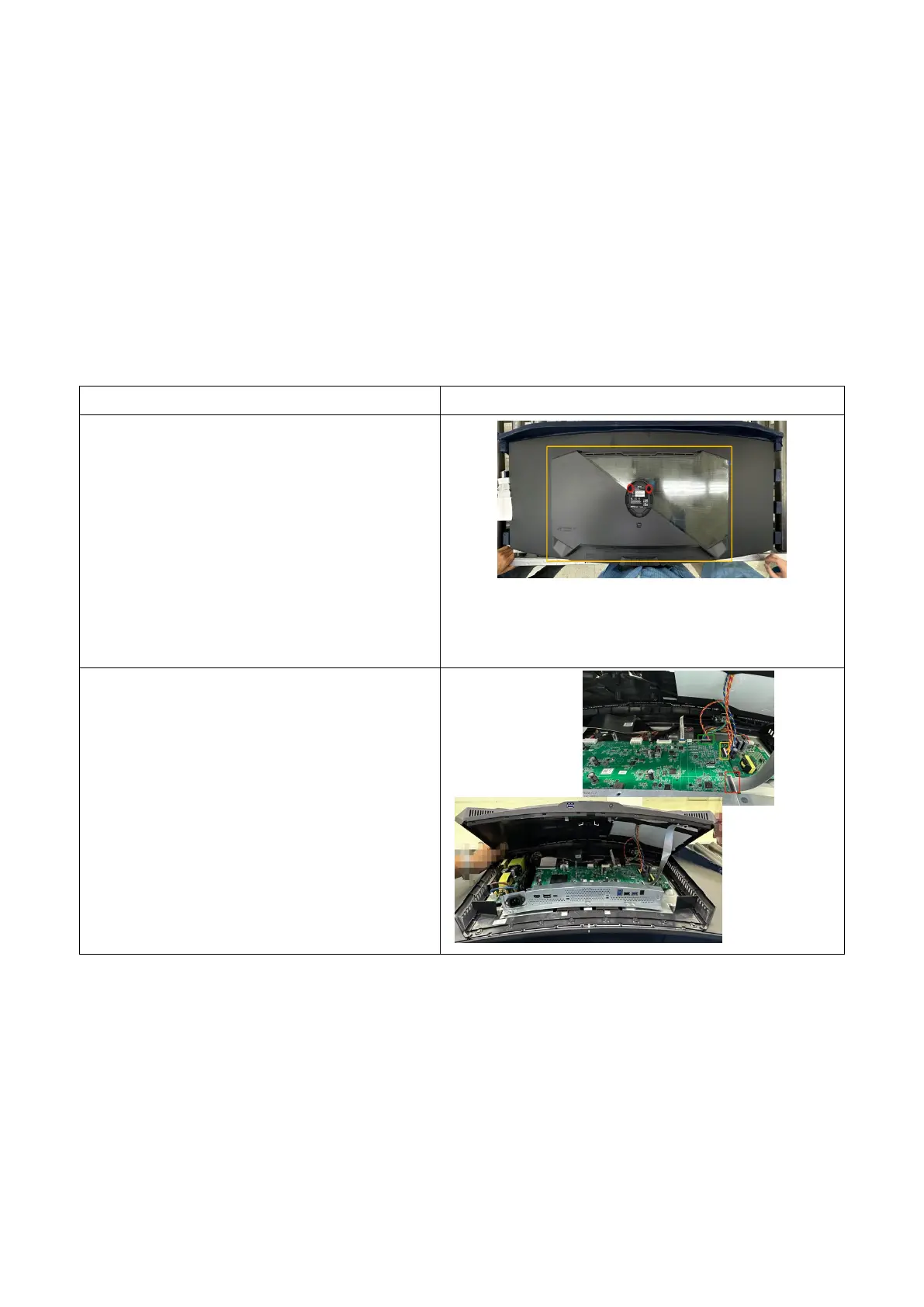

Descriptions
Refer photos
Remove the rear cover screws
1-1.拆后壳螺丝 2PCS
1-1. Remove 2 screws from the rear
housing
1-2.拆后壳
1-2. Remove the rear housing
2.拔按键线&LED 线
2. Pull out the button cable and LED
cable
