Page 14 / 20
File No. SG-0000946

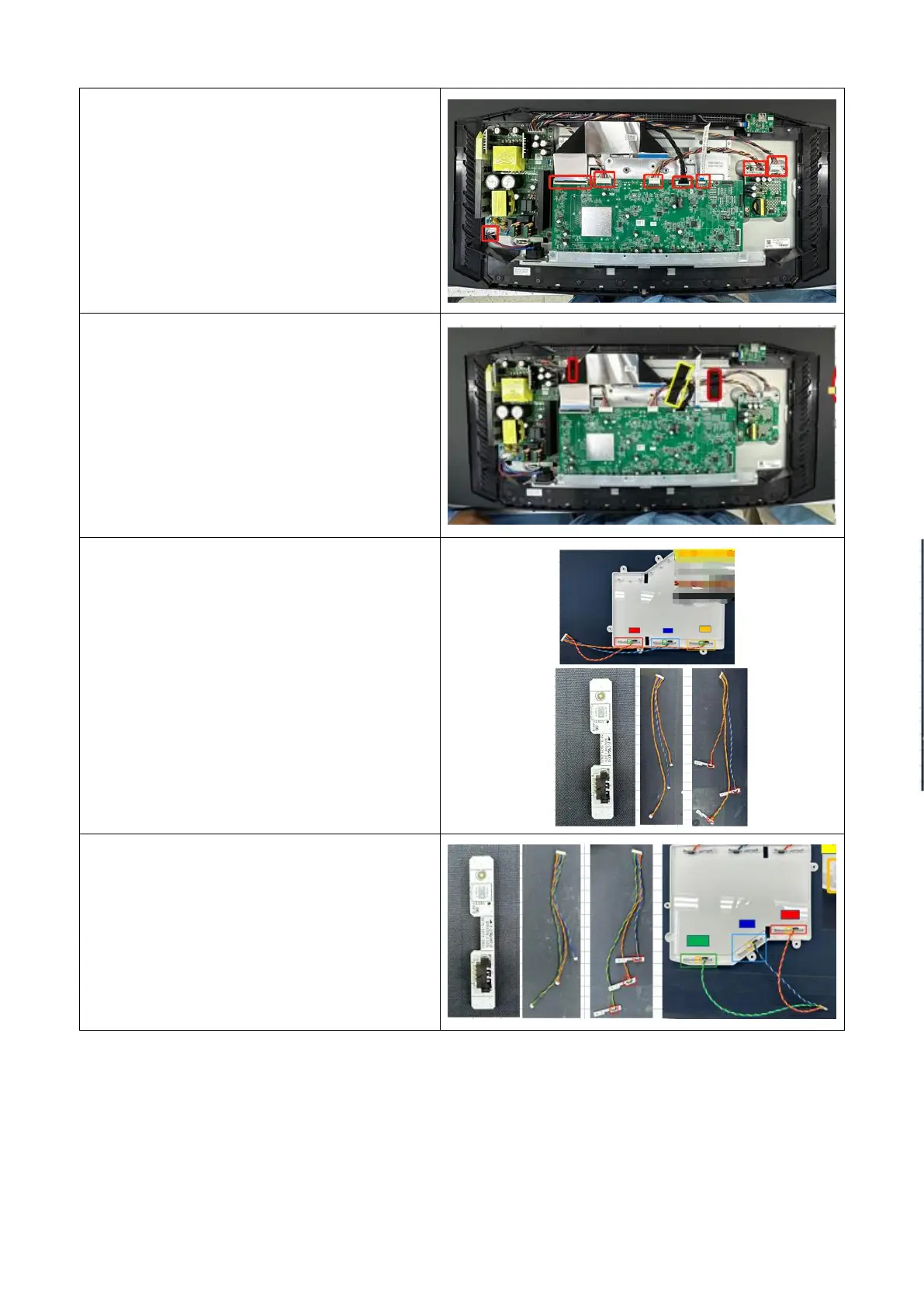

17-1. 打开钢琴盖插 2PCS FFC 线，插电
源排线/排线
17-1. Open the piano cover and plug in
2PCS FFC cable, then plug in the power
cable/cable
18-1. 贴固定线材 3PCS 胶带
18-1. Apply 3PCS adhesive tape to fix the
wire
19-1. 插长线材与 LED 板对接，安装如图
颜色卡合 LED 灯板
19-1. Insert the long wire and connect it to
the LED board, and install it in the color
shown in the picture to fit the LED light
board
19-2. 插短材与 LED 板对接，安装如图颜
色卡合 LED 灯板
19-2. Insert the short material and
connect it with the LED board, and install
the LED light board with the color as
shown in the picture
