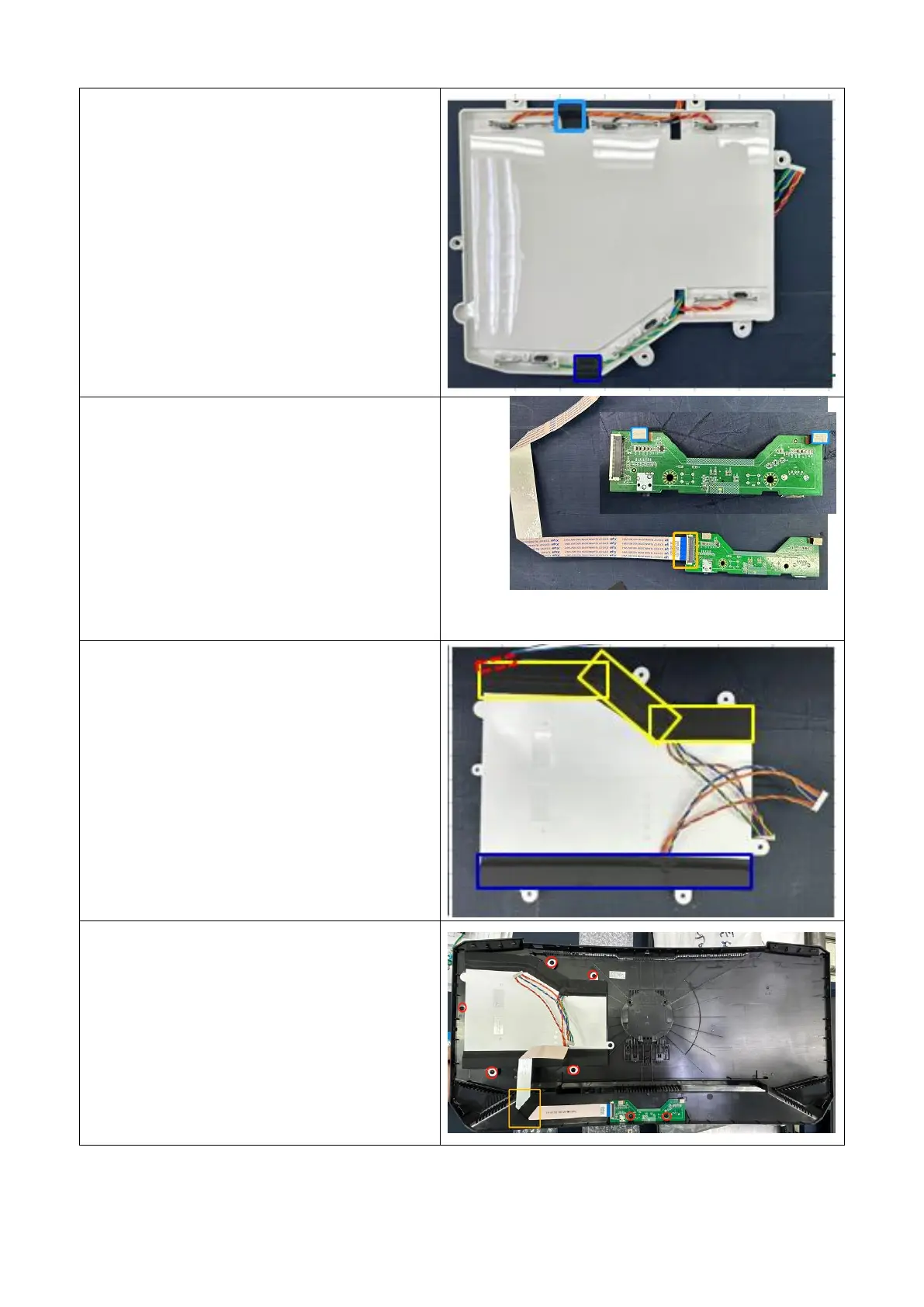

20-1. 2PCS 固定线材胶带
20-1. 2PCS fixed wire tape
21-1. 打开钢琴盖插按键 FFC 线
21-1. Open the piano cover and insert the
button FFC cable
21-2. 贴按键板 2PCS 导电泡棉
21-2. Paste 2 pieces of conductive foam
on the button board
22-1. 贴 LED 灯漏光 4PCS 胶带
22-1. Apply LED light leakage 4PCS tape
23-1. 锁 LED 灯与按键板 8PCS 螺丝
23-1. Lock the LED light and button board
with 8 screws
23-2. 贴 1PCS 胶带固定线材
23-2. Fix the wire with 1 piece of adhesive
tape
