Asus PRIME H310M-E - Product Introduction; Motherboard Overview

ASUS PRIME H310M-E
1-1
Product introduction
1
Motherboard overview
• Unplugthepowercordfromthewallsocketbeforetouchinganycomponent.
• Beforehandlingcomponents,useagroundedwriststraportouchasafelygrounded
objectorametalobject,suchasthepowersupplycase,toavoiddamagingthemdue
tostaticelectricity.
• Beforeyouinstallorremoveanycomponent,ensurethattheATXpowersupplyis
switchedofforthepowercordisdetachedfromthepowersupply.Failuretodoso
maycauseseveredamagetothemotherboard,peripherals,orcomponents.
• Unplugthepowercordbeforeinstallingorremovingthemotherboard.Failuretodoso
cancauseyouphysicalinjuryanddamagetomotherboardcomponents.

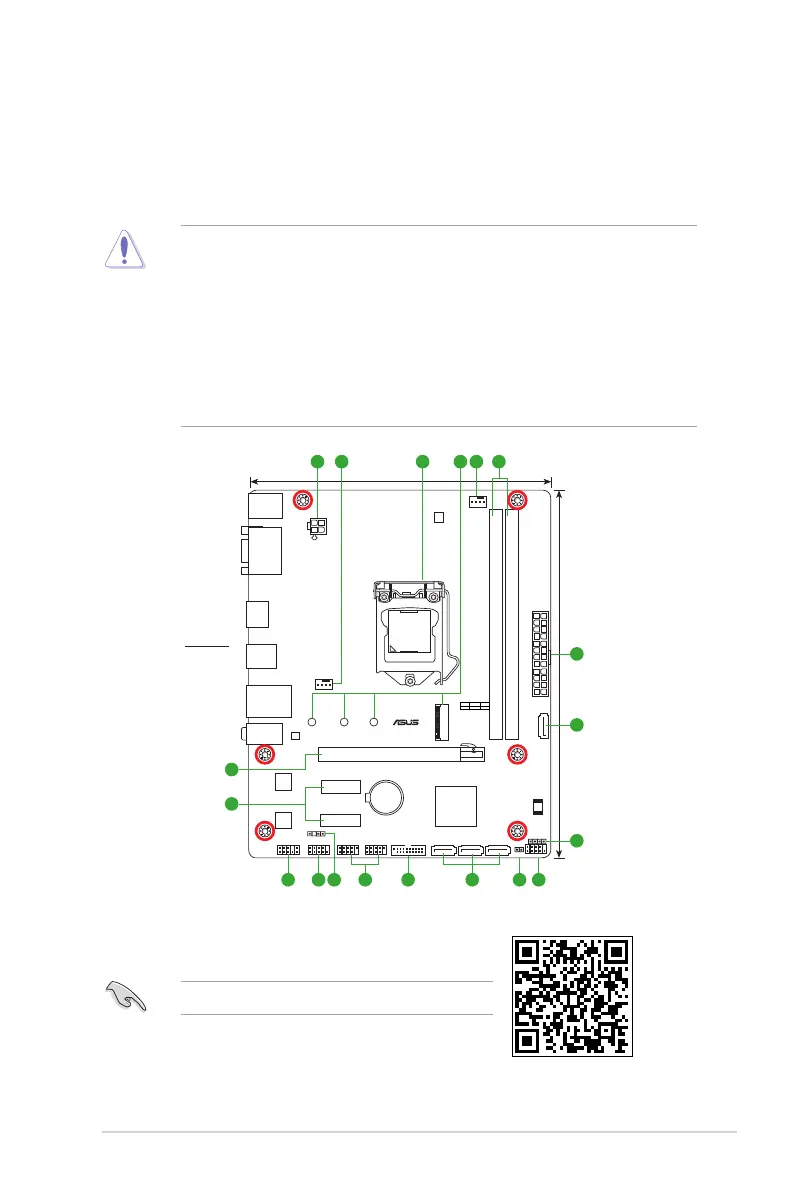

Place this
side towards
the rear of the
chassis
ScantheQRcodetogetthedetailedpindenitions.
PRIME H310M-E
M.2(SOCKET3)
PCIE SATA IRST
X2 V X
PCIEX16
PCIEX1_1
PCIEX1_2
SPEAKER
CLRTC
F_PANEL
SPDIF_OUT
USB1011
USB914
U31G1_12
AAFP
COM
EATXPWR
CPU_FAN
CHA_FAN
BATTERY
Super
I/O
ALC
887
DIGI
+VRM
22.6cm(8.9in)
DDR4 DIMM_B1* (64bit, 288-pin module)
LGA1151
2280 2260 2242
M.2(SOCKET3)
DDR4 DIMM_A1* (64bit,288-pin module)
AUDIO
KBMS
LAN_USB56
U31G1_34
HDMI
18.5cm(7.3in)
128Mb
BIOS
SATA6G_1
SATA6G_4 SATA6G_3 SATA6G_2
VGA
Intel
®
H310
ATX12V
Realtek
8111H
1 52 23 4
1
6 9 810
1
1
6
1
7
15
1113 1214
16
