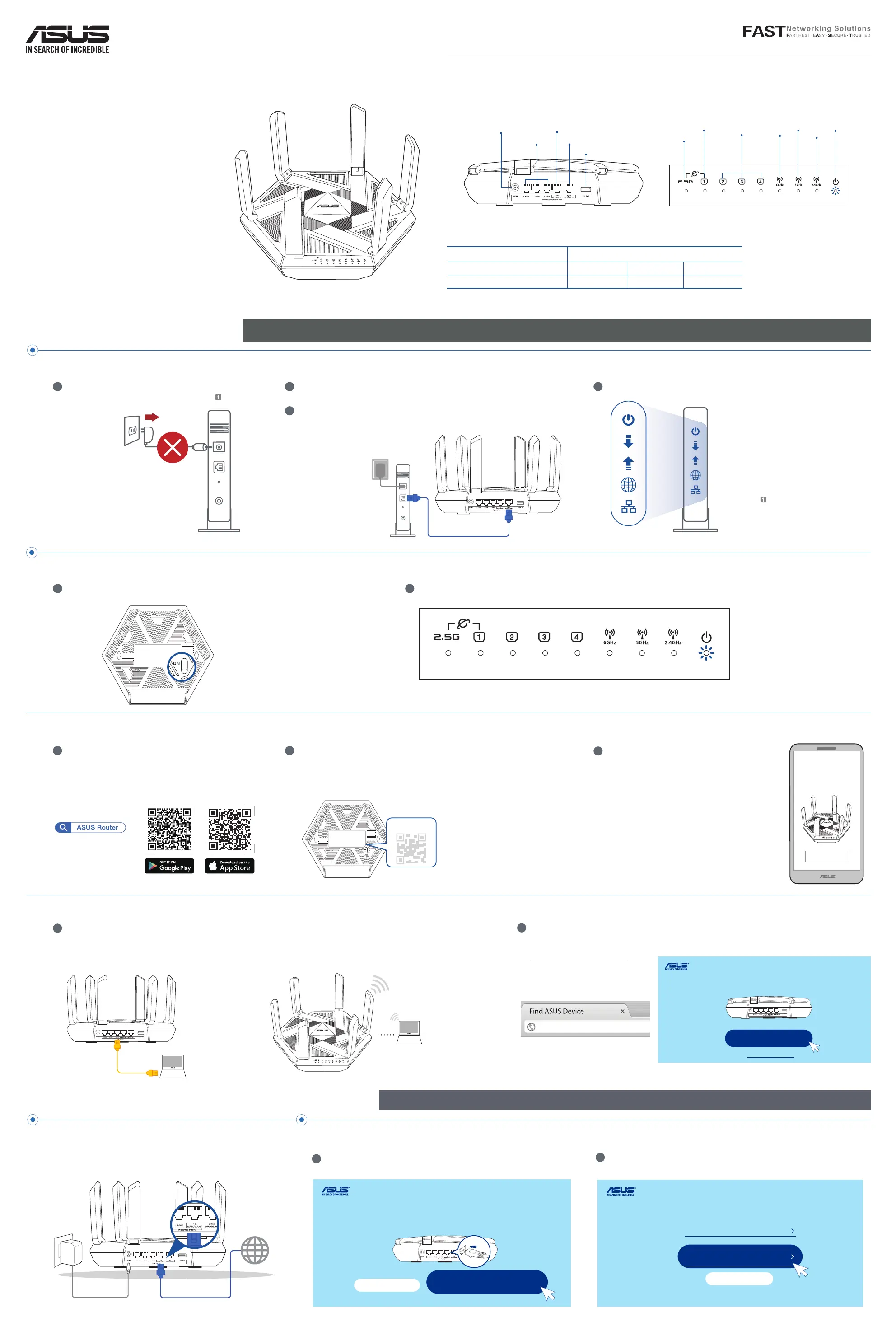

Asus RT-AXE7800 User Manual

RT-AXE7800
Wireless-AXE7800 Tri-band Gigabit Router
Quick
Start Guide
Hardware Explanations
I/O Ports Overview LED Lights Overview
1G Port WAN Type Setup Steps
Prepare your Router
01
Connect the modem to the WAN port (1G WAN/LAN1) with a
network cable.
DC Power adapter DC Output: +12V with 3.0A current
Operating Temperature 0~40
o
C Storage 0~70
o
C
Operating Humidity 50~90% Storage 20~90%
Specications:
Prepare your Modem
01
1
Unplug the power of cable / DSL modem. If it
has a battery backup, remove the battery.
5
[App] Launch ASUS Router App and follow the
instructions to complete the setup.
Modem back
Unplug
Install your Router
02
1
Plug the adapter into the DCIN port, and press the Power switch.
2
Connect your modem to WAN port at the back side of the router with the
network cable provided. The WAN port is set as 2.5G by default.
3
Power on the modem. Plug modem to the power
outlet and power on.
Modem back
4
Check the modem LED lights to ensure the connection is active.
If you are using DSL for internet,
you will need your username
/ password from your Internet
service provider (ISP) to properly
congure your router.
Modem front
– Or via web browser
3
[Wired] Connect your PC to LAN port at the
back side of the router using an additional
network cable.
[Wireless] Connect to the network with default
SSID shown on the product label on the back side
of your router “ASUS_XX”.
Login and Connect – Setting to 1G WAN under factory default settings
02
1
[ASUS Setup Wizard] Select “manual setting”.
2
[ASUS Setup Wizard] Select “1G Ethernet”, then follow the instructions to
complete the setup of SSID and login information.
4
[Wired / Wireless] Open a web browser.
You will be redirected to the ASUS Setup Wizard. If not, navigate to
http://www.asusrouter.com.
Follow the instructions to complete
the setup.















– Via app
3
[App] On your iOS or Android mobile device, go
to the app store, search forASUS Router, and
download the app.
4
[App] On your iOS or Android mobile device, tapSettings > Wi-Fi, connect
to the default network SSID shown on the product label on the back side of
the router. Or scan the QR code on the product label to connect the default
network SSID.
* XX refers to the last two digits
of MAC address. You can nd it
on the label on the back of your
router.

_



LAN
1G WAN/LAN1
2.5G WAN/LAN1
5GHz
2.4GHz
POWER
2
The power LED will light up when the hardware is ready.
DCIN port
LAN ports 2-4
1G WAN/LAN1 port
2.5G WAN/LAN1 port
USB 3.2 Gen 1 port
6GHz
* Please connect your PC to either LAN2, LAN3 or LAN 4
port.
Router Setup Steps
http://www.asusrouter.com/

Asus RT-AXE7800 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	4804 Mbit/s
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (third band)	2402 Mbit/s
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, WAN
VPN server	IPSec, OVPN, PPTP
VPN support	VPN Client L2TP VPN Client OVPN VPN Client PPTP VPN Client WireGuard VPN Server IPSec VPN Server OVPN VPN Server PPTP VPN Server WireGuard VPN Fusion
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	-
Number of guest networks (2.4 GHz)	3
Cables included	LAN (RJ-45)
Antennas quantity	6
Flash memory	256 MB
Internal memory	512 MB
Processor cores	4
Processor frequency	1700 MHz
Output current	3 A
Output voltage	12 V
AC input voltage	110 - 240 V
Power source type	AC, DC
AC input frequency	50 - 60 Hz
Ethernet LAN (RJ-45) ports	5
NAT functionality	PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough, PPPoE relay
Security algorithms	SSH, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPS

Weight and Dimensions

Weight	1033 g

Summary

Hardware Explanations

I/O Ports Overview

Details the various input/output ports on the router, including DCIN, WAN/LAN, and USB.

LED Lights Overview

Explains the status indicators for different network connections and power.

Router Setup Steps

Prepare Your Modem

Instructions to unplug the modem and remove its battery backup if applicable.

Install Your Router

Steps for connecting the router to power and network, including app and web browser methods.

1G Port WAN Type Setup Steps

Prepare Your Router for 1G WAN

Connects the modem to the router's 1G WAN/LAN port with a network cable.

Login and Connect to 1G WAN

Guides through manual setting and selecting 1G Ethernet for initial setup.

Start to Use

Router Reboot and Connection

Details the router reboot process after setup and initial internet connection.

LED Indicators Status

Provides a table explaining the status and meaning of various LED indicators on the router.

Frequently Asked Questions

Finding More Information

Directs users to the technical support site for additional information about the wireless router.

Service and Support

Video Tutorials

Provides a link to video tutorials for assistance with router setup and features.

Safety and Compliance Information

REACH Compliance

Information on the REACH regulatory framework and chemical substances in products.

Federal Communications Commission (FCC) Statement

Details FCC compliance rules, warnings, and RF exposure limits for the device.

Innovation, Science and Economic Development Canada (ISED) Compliance

Covers ISED compliance, RF exposure information, and operating conditions for Canada.

General Safety Notices

Provides important safety warnings regarding product usage, environment, and maintenance.
