Connection 17

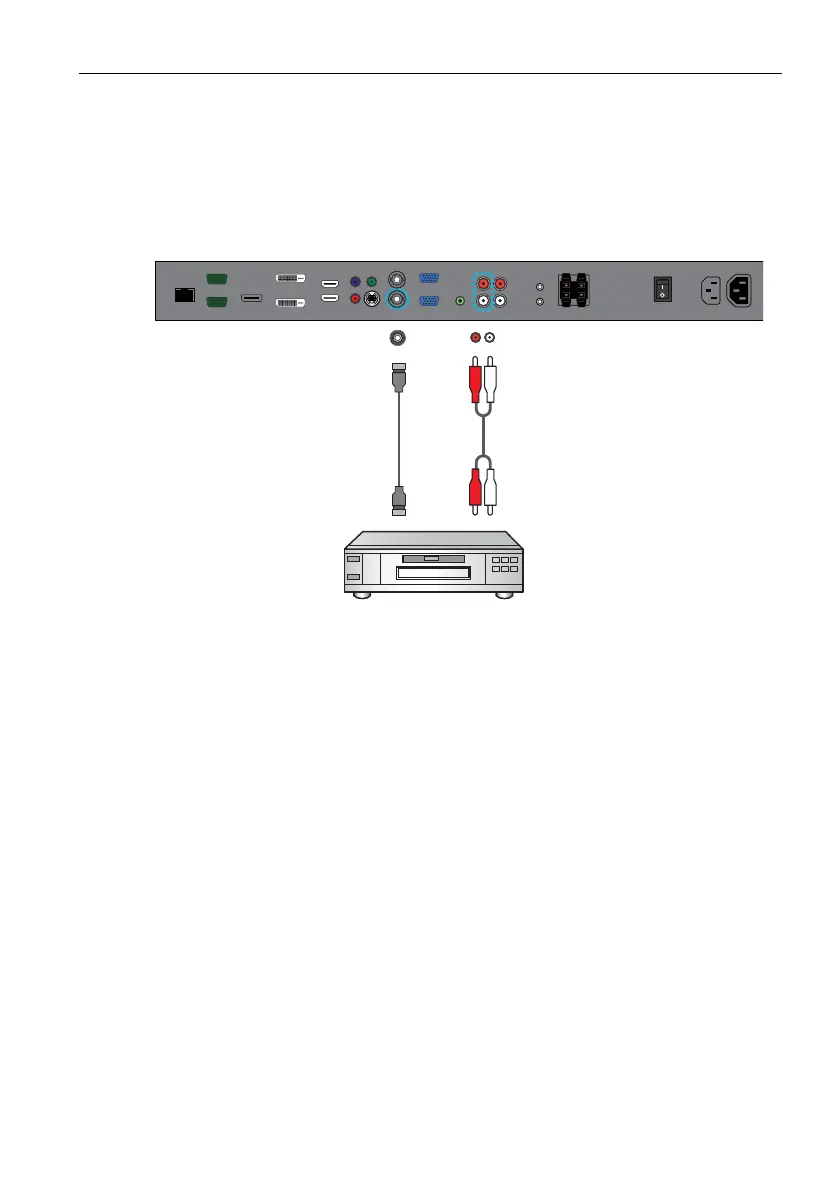

Connecting the composite video (AV) input
1. Connect the AV IN jack on the display to the composite video (AV) output jack on an A/
V device (such as a VCR or DVD player) using a composite video cable.
2. Connect the A/V device’s audio output jacks to the AUDIO IN (AUDIO 2) jacks on the
display using a suitable audio cable. To select an appropriate audio source, see "Audio
Source" on page 39 for details.
3. To view video image from this input, press the AV button on the remote control, or
select AV from the source selection bar.
Note:
• The cables are not supplied and should be purchased separately.
Audio cable
DVD player / VCR
Composite video cable
