Asus VA24D Series User Manual

2-2 Chapter 2: Setup
2.2 Detaching the arm/base
(for VESA wall mount)
The detachable arm/base of this monitor is specially designed for VESA wall mount.

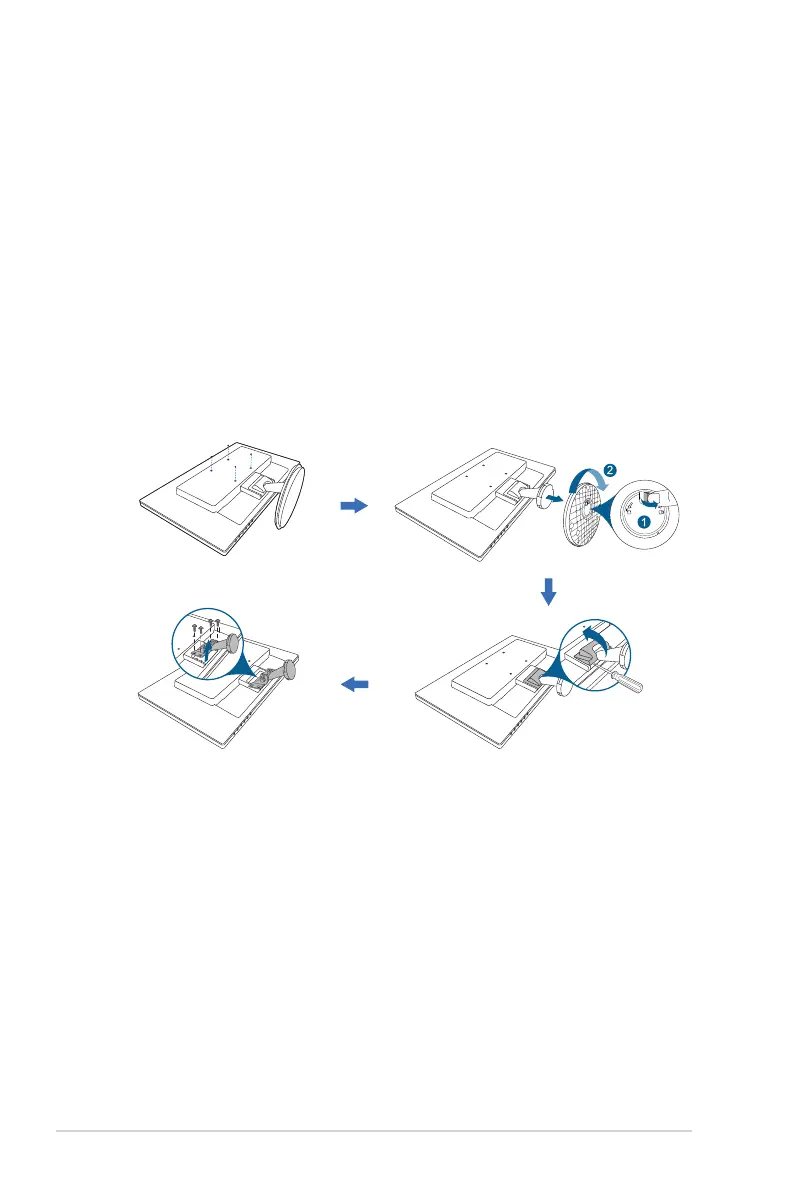

To detach the arm/base:
VA24DQ
1. Have the front of the monitor face down on a table.
2. Remove the rubbers in the four screw holes. (Figure 1)
3. Remove the base (Figure 2).
4. Remove the hinge cover (Figure 3).
5. Use a screwdriver to remove the screw(s) on the hinge (Figure 4), then
remove the hinge.
(
Figure 1
)
(
Figure 2
)
(
Figure 3
)
(
Figure 4
)

Asus VA24D Series Specifications

General

Brand	Asus
Model	VA24D Series
Category	Monitor
Language	English
