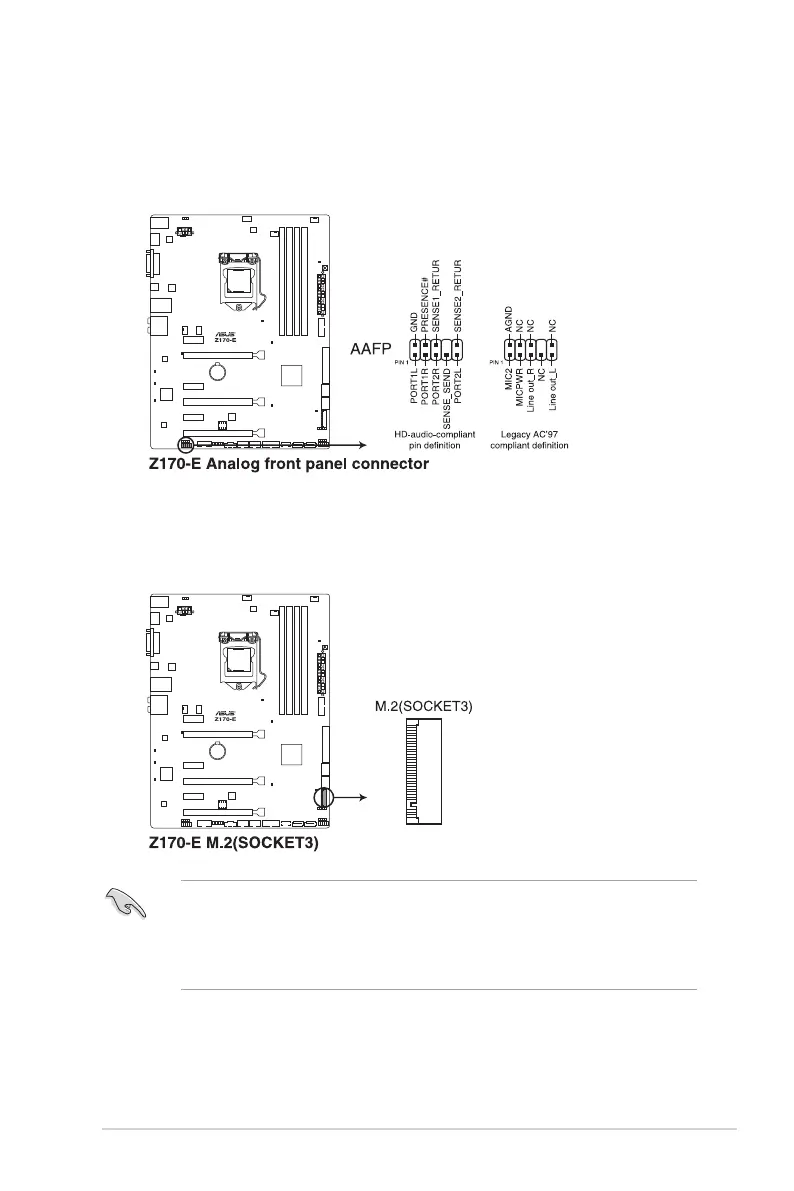

7. Front panel audio connector (10-1 pin AAFP)
This connector is for a chassis-mounted front panel audio I/O module that supports
either HD Audio or legacy AC’97 audio standard. Connect one end of the front panel
audio I/O module cable to this connector.
8. M.2 socket 3
This socket allows you to install an M.2 (NGFF) SSD module.
• This socket supports M Key and type 2242/2260/2280/22110 storage devices.
• The M.2 (NGFF) SSD module is purchased separately.
• The M.2 shares SATA mode with SATA Express. Change this item before installing
M.2 SATA devices.
