Chapter 2: BIOS Setup

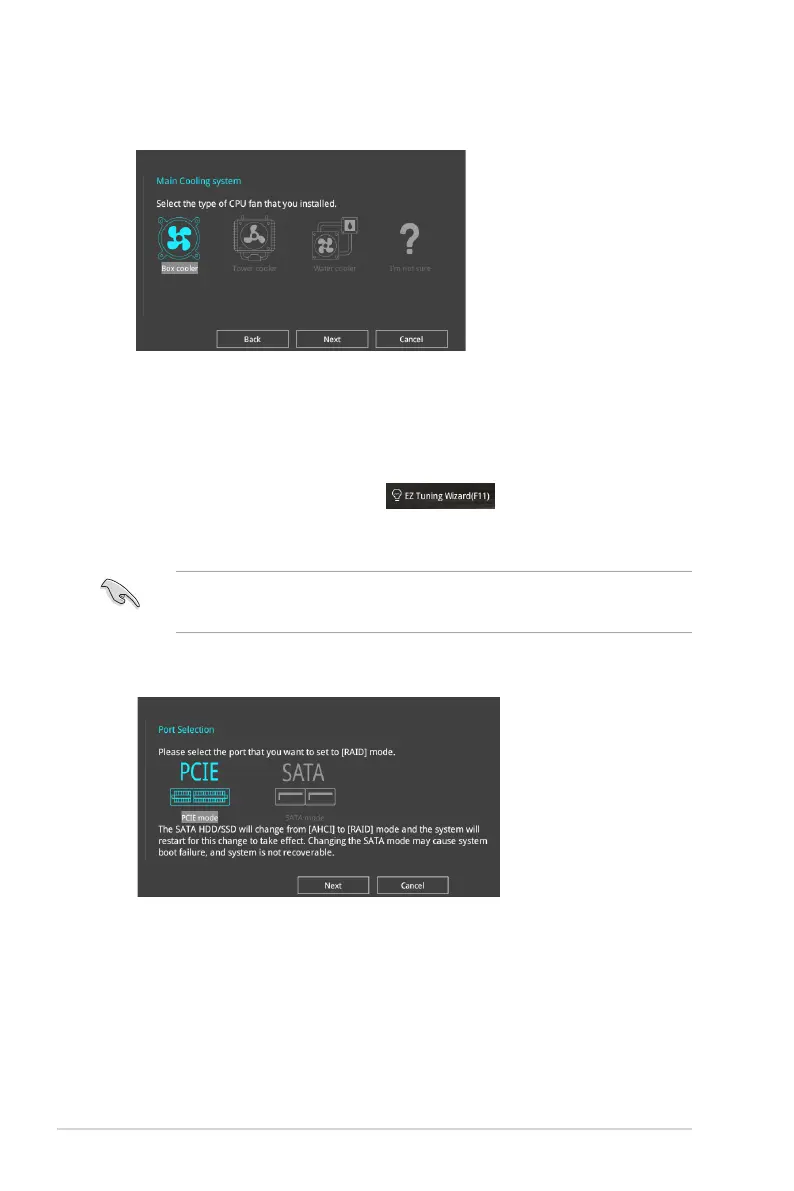

Creating RAID
To create RAID:
1. Press <F11> on your keyboard or click from the BIOS screen to open
EZ Tuning Wizard screen.
2. Click RAID then click Next.
• Ensure that your HDDs have no existing RAID volumes.
• Ensure to connect your HDDs to Intel
®
SATA connectors.
3. Select the port that you want to set to [RAID] mode, PCIE or SATA, then click Next.
4. Select a Main Cooling System BOX cooler, Tower cooler, Water cooler, or I’m not
sure, then click Next.
5. After selecting the Main Cooling System, click Next then click Yes to start the OC
Tuning.

Asus Z170-E Specifications

General

Chipset	Intel Z170
Socket	LGA 1151
Form Factor	ATX
Memory Slots	4
Memory Type	DDR4
Maximum Memory	64 GB
Memory Speed	DDR4 3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz
PCI Express x16 Slots	2
PCI Express x1 Slots	3
SATA Ports	6 x SATA 6Gb/s
M.2 Slots	1
USB 3.0 (Gen 1)	6
USB 2.0	6
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
LAN	Intel I219V, 1 x Gigabit LAN Controller(s)
RAID Support	RAID 0, 1, 5, 10
Multi-GPU Support	AMD CrossFireX
USB 3.1 (Gen 2)	2 (1 x Type-A + 1 x Type-C)
