Chapter 1: Product introduction

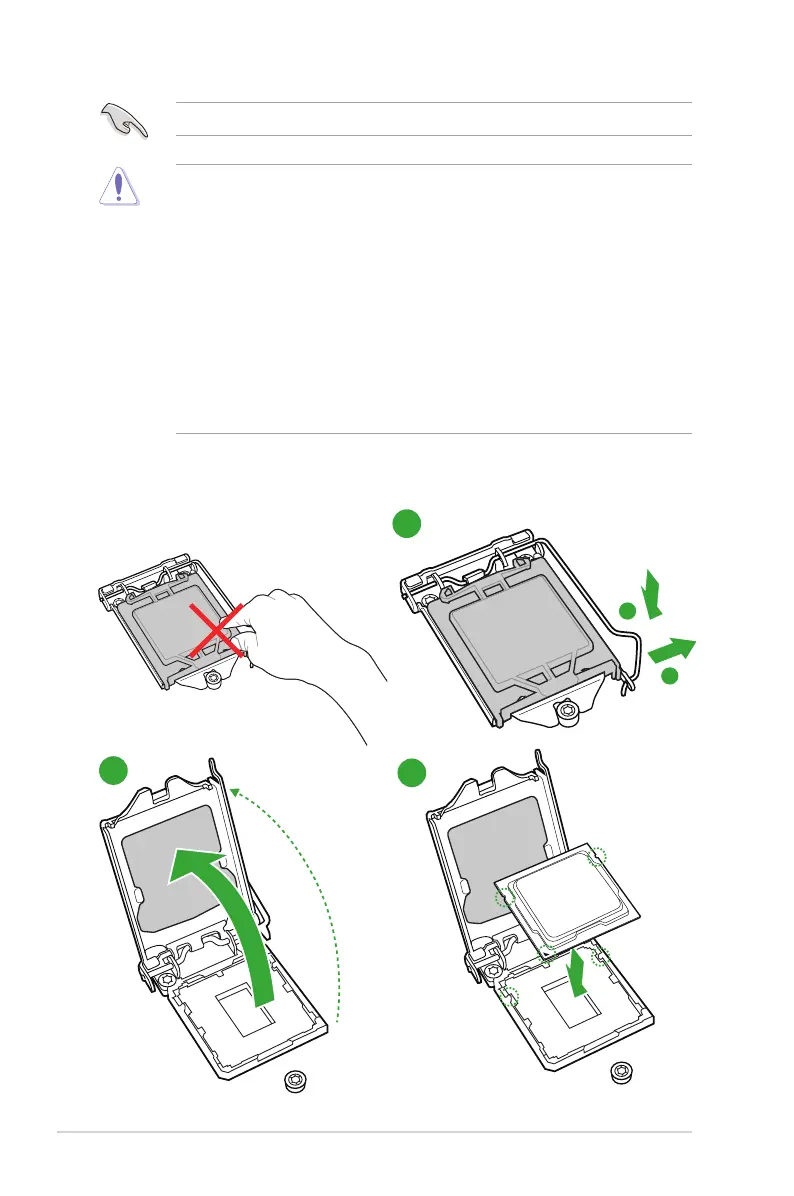

1.3.1 Installing the CPU
1
2
3
A
B
UnplugallpowercablesbeforeinstallingtheCPU.
• EnsurethatyouinstallthecorrectCPUdesignedfortheLGA1151socketonly.DO
NOTinstallaCPUdesignedforLGA1150,LGA1155andLGA1156socketsonthe
LGA1151socket.
• Uponpurchaseofthemotherboard,ensurethatthePnPcapisonthesocketand
the socket contacts are not bent. Contact your retailer immediately if the PnP cap
ismissing,orifyouseeanydamagetothePnPcap/socketcontacts/motherboard
components.
• Keepthecapafterinstallingthemotherboard.ASUSwillprocessReturnMerchandise
Authorization(RMA)requestsonlyifthemotherboardcomeswiththecaponthe
LGA1151socket.
• Theproductwarrantydoesnotcoverdamagetothesocketcontactsresultingfrom
incorrectCPUinstallation/removal,ormisplacement/loss/incorrectremovalofthePnP
cap.

Asus Z170-P D3 Specifications

General

Chipset	Intel Z170
Socket	LGA 1151
Memory Type	DDR3
Memory Slots	4
Maximum Memory	64GB
Form Factor	ATX
Audio	Realtek ALC887 8-Channel High Definition Audio CODEC
RAID Support	RAID 0, 1, 5, 10
Expansion Slots	2 x PCIe 3.0 x16, 2 x PCIe 3.0 x1, 2 x PCI
Storage Interface	6 x SATA 6Gb/s
USB Ports	6 x USB 3.0 (4 rear, 2 via header), 6 x USB 2.0 (2 rear, 4 via header)
LAN	Realtek RTL8111H, 1 x Gigabit LAN
Video Outputs	1 x DVI-D, 1 x VGA
