Chapter 6: Multiple GPU support
Chapter 6
6.1.5 Installing four CrossFireX™ graphics cards
ToinstallfourCrossFire™graphicscards:
1. Prepare four CrossFireX-ready graphics cards.
2. Insert the four graphics cards into the PCIEX16 slots. Refer to Chapter 1 in this user
manual for the locations of the PCIEX16 slots recommended for multi-graphics card
installation.
3. Ensure that the cards are properly
seated on the slots.

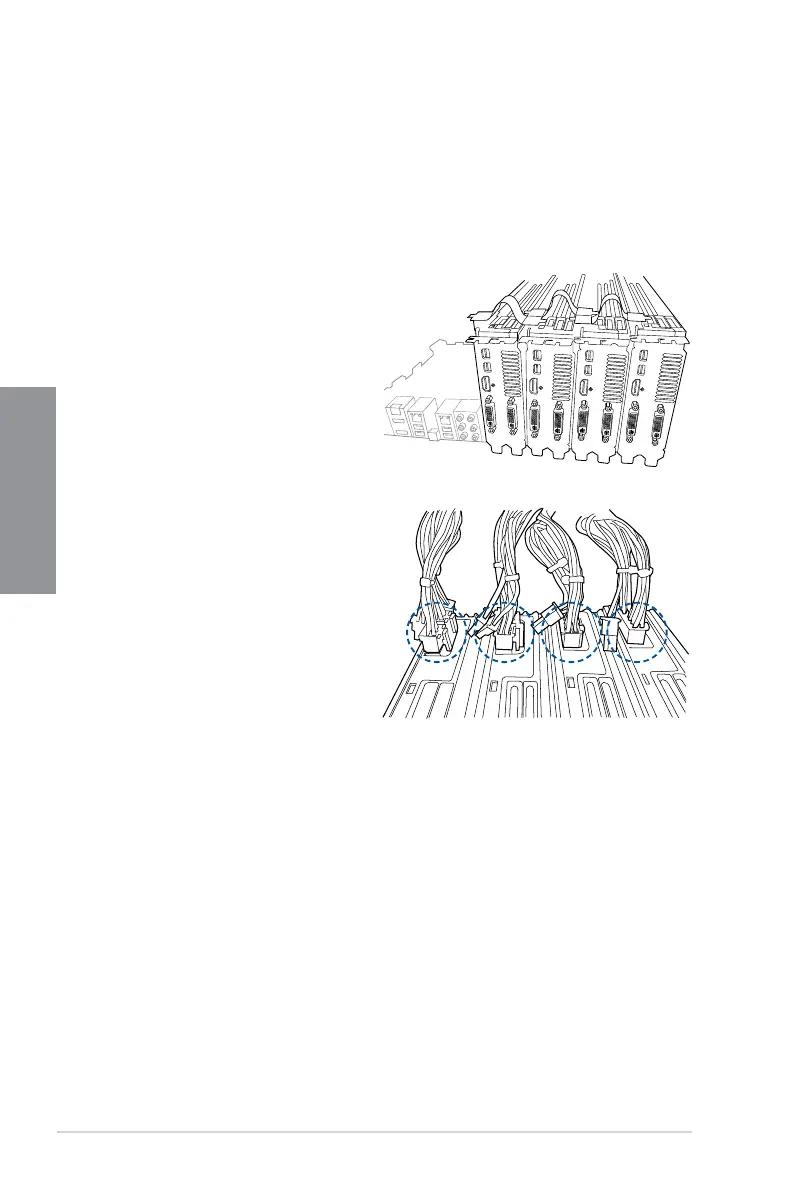

4. Alignandrmlyinsertthethree
CrossFireX bridge connectors to the
goldngersoneachgraphicscard.
Ensurethattheconnectorsarermly
in place.
5. Connect four independent auxiliary
power sources from the power supply
to the four graphics cards separately.
6. ConnectaVGAoraDVIcabletothe
graphics card.

Asus Z170-WS Specifications

General

Socket	LGA 1151
Chipset	Intel Z170
Form Factor	ATX
Memory Slots	4
Maximum Memory	64 GB
PCIe 3.0 x16 Slots	4
Audio	Realtek ALC1150
Storage Interface	6 x SATA 6Gb/s
M.2 Slots	1
USB 3.1 (Gen2)	2
USB 3.0 (Gen1)	4
USB 2.0	6
RAID Support	RAID 0, 1, 5, 10
