Asus Z87-WS - 1.2.2 Motherboard Layout

ASUS Z87-WS
1-9
Chapter 1
Refer to 1.2.6 Internal connectors and 2.3.1 Rear I/O connection for more information
about rear panel connectors and internal connectors.

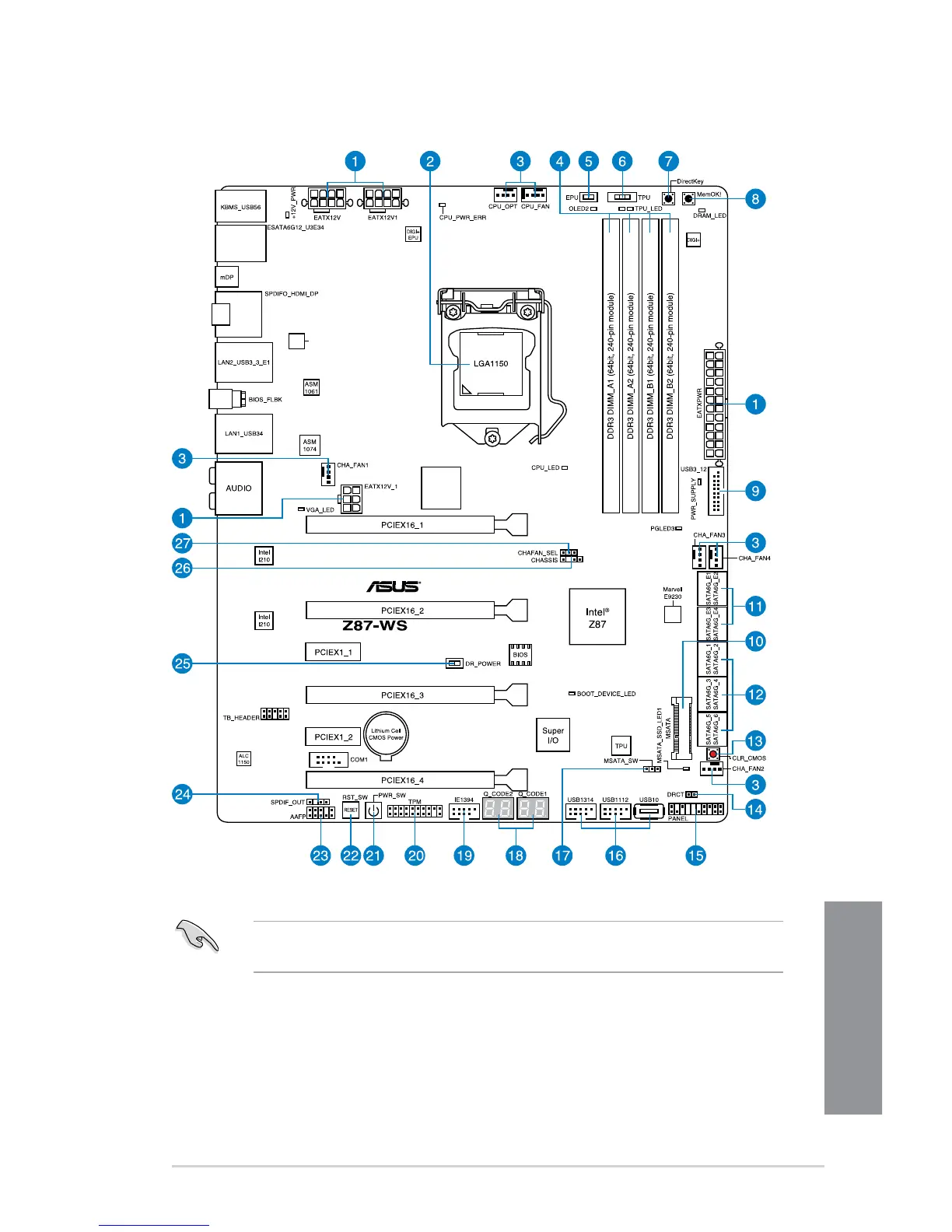

1.2.2 Motherboard layout
Parade
PS8201
PLX
PEX8747
