Asus Z87-WS - Audio I;O Connections

ASUS Z87-WS
2-15
Chapter 2
Connect to Headphone and Mic
Connect to Stereo Speakers

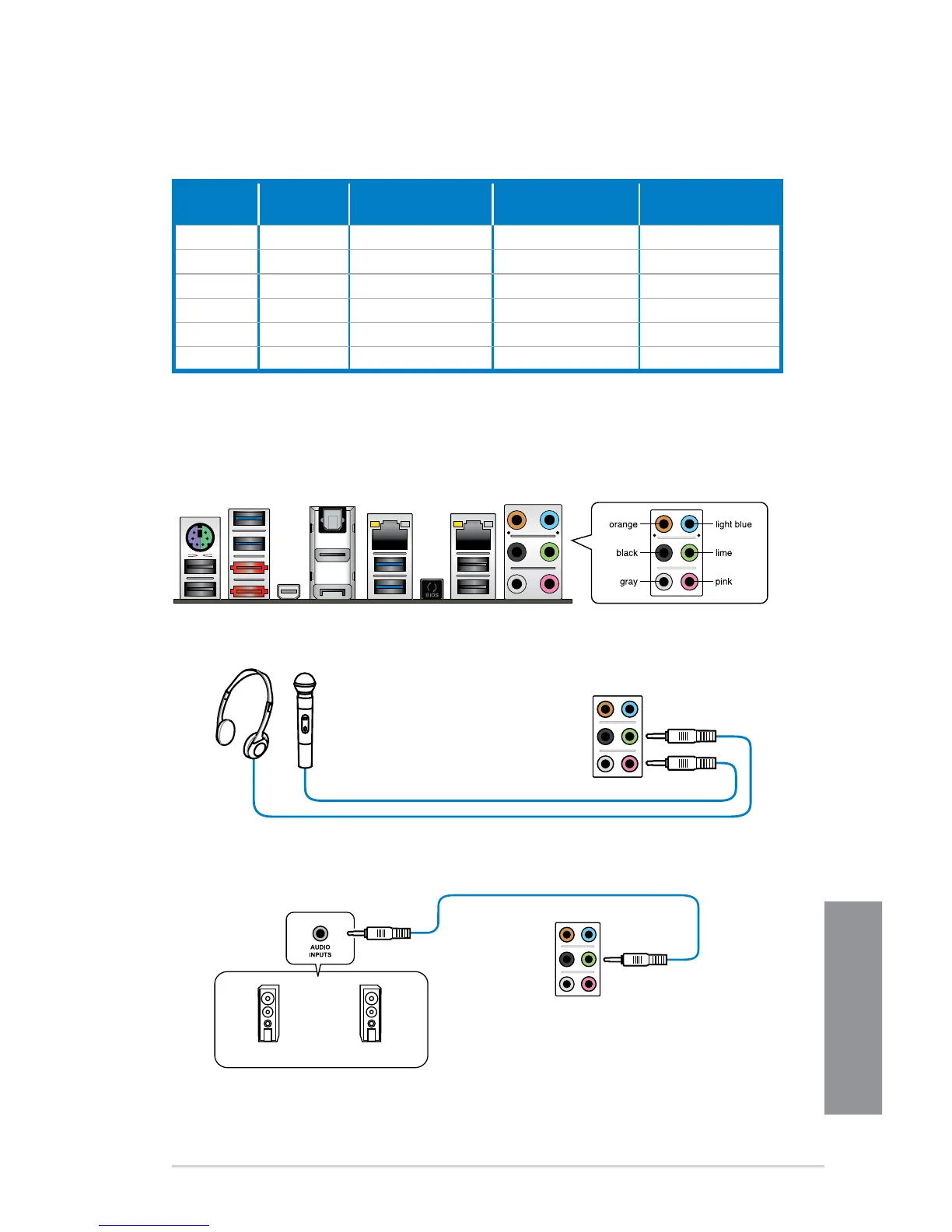

2.3.2 Audio I/O connections
Audio I/O ports
** Audio 2, 4, 6, or 8-channel conguration
Port Headset
2-channel
4-channel 6-channel 8-channel
Light Blue Line In Line In Line In Line In
Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out
Pink Mic In Mic In Mic In Mic In
Orange – – Center/Subwoofer Center/Subwoofer
Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
Gray – – – Side Speaker Out
