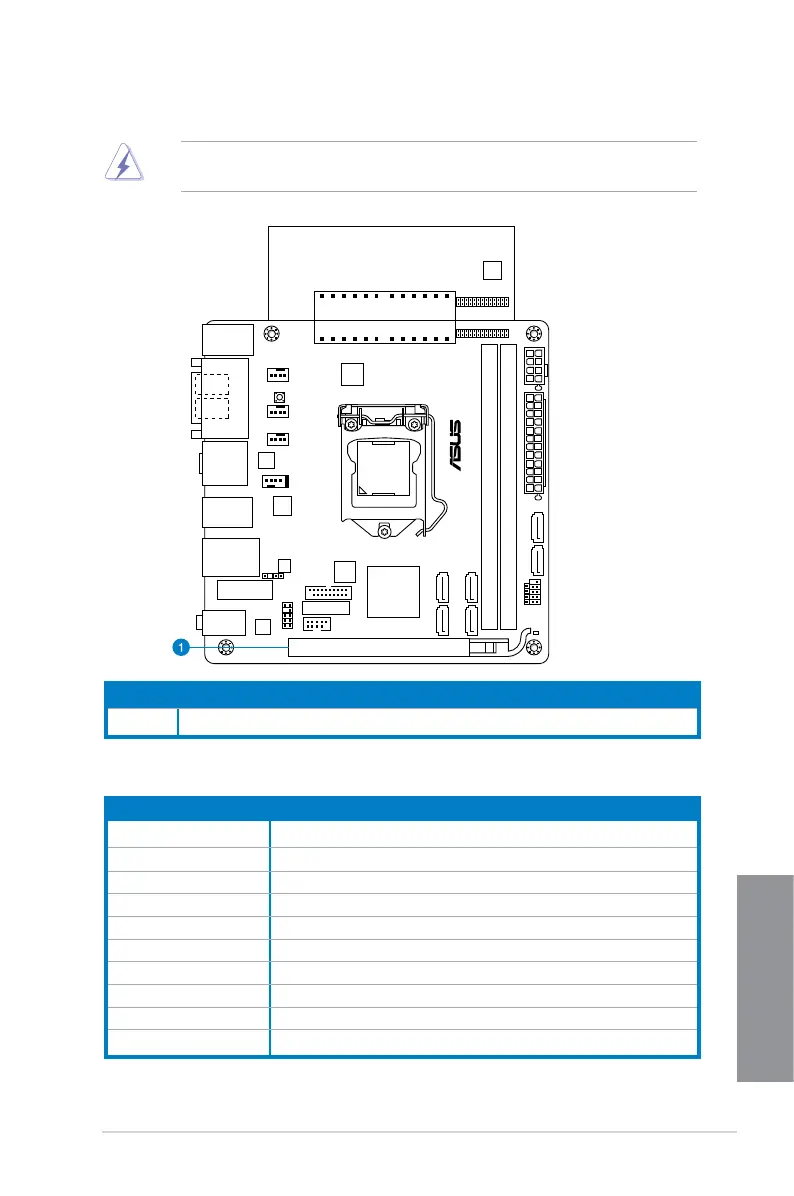

1.2.5 Expansion slots
Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
Slot No. Slot Description
1 PCIe 3.0 x16 slot
A B C D E F G H
PCIe x16 Shared Shared Shared Shared - - - -
SMBUS Controller - - Shared - - - - -
Wi-Fi - - - Shared - - - -
Intel® SATA Controller - - - Shared - - - -
Intel® LAN - - - - Shared - - -
Intel® xHCI - - - - - Shared - -
Intel® EHCI #0 - - - - - - - Shared
Intel® EHCI #1 Shared - - - - - - -
HD Audio - - - - - - Shared -
ASMedia® 1042 Shared - - - - - - -
IRQ assignments for this motherboard
-DELUXE
I
7
8
Z
6
PCIEX16

Asus Z87I-DELUXE Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 3000 MHz
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z87
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Parallel processing technology support	Not supported
LAN controller	Intel® I217-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
