Chapter 3: BIOS setup
Chapter 3
3.2.2 Advanced Mode
The Advanced Mode provides advanced options for experienced end-users to congure

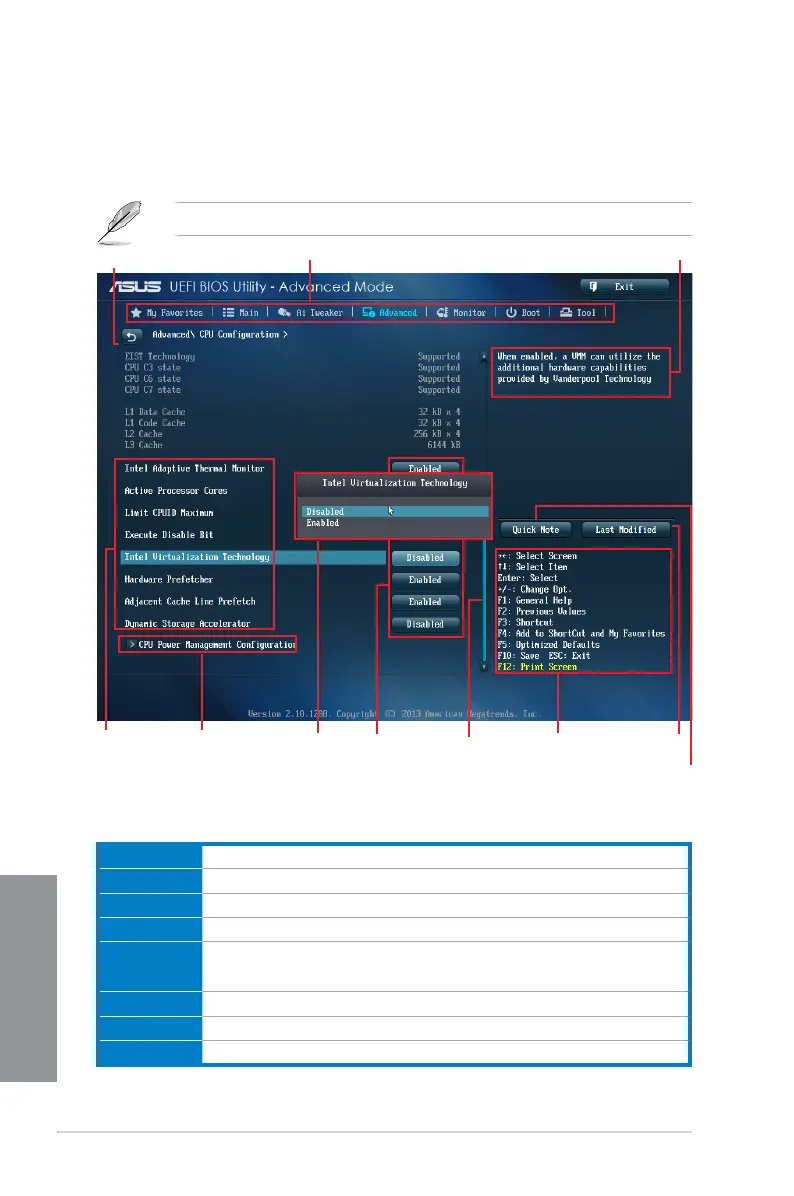

the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To access the Advanced Mode, click Exit, then select Advanced Mode or press F7 hotkey.
Menu bar
The menu bar on top of the screen has the following main items:
My Favorites For saving the frequently-used system settings and conguration.
Main For changing the basic system conguration
Ai Tweaker For changing the overclocking settings
Advanced For changing the advanced system settings
Monitor
For displaying the system temperature, power status, and changing the
fan settings.
Boot For changing the system boot conguration
Tool For conguring options for special functions
Exit For selecting the exit options and loading default settings
Navigation keys
Conguration elds
Back button
Menu bar
General help
Submenu item
Menu items
Pop-up window
Scroll bar
Last modied
settings
Quick note

Asus Z87I-DELUXE Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM
Supported memory clock speeds	1333, 1600, 1800, 1866, 2000, 2133, 2200, 2400, 2600, 2666, 2800, 3000 MHz
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel Celeron, Intel Pentium
Maximum number of SMP processors	1
Number of SATA III connectors	6
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	4
Component for	PC
Power source type	ATX
Motherboard chipset	Intel® Z87
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
RAID levels	0, 1, 5, 10
Supported storage drive interfaces	SATA III
Parallel processing technology support	Not supported
LAN controller	Intel® I217-V
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Ethernet interface type	Gigabit Ethernet
BIOS type	UEFI AMI
ACPI version	5.0
BIOS memory size	64 Mbit

Weight and Dimensions

Width	170 mm
