Asyril Asycube 530 User Manual

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
37/50

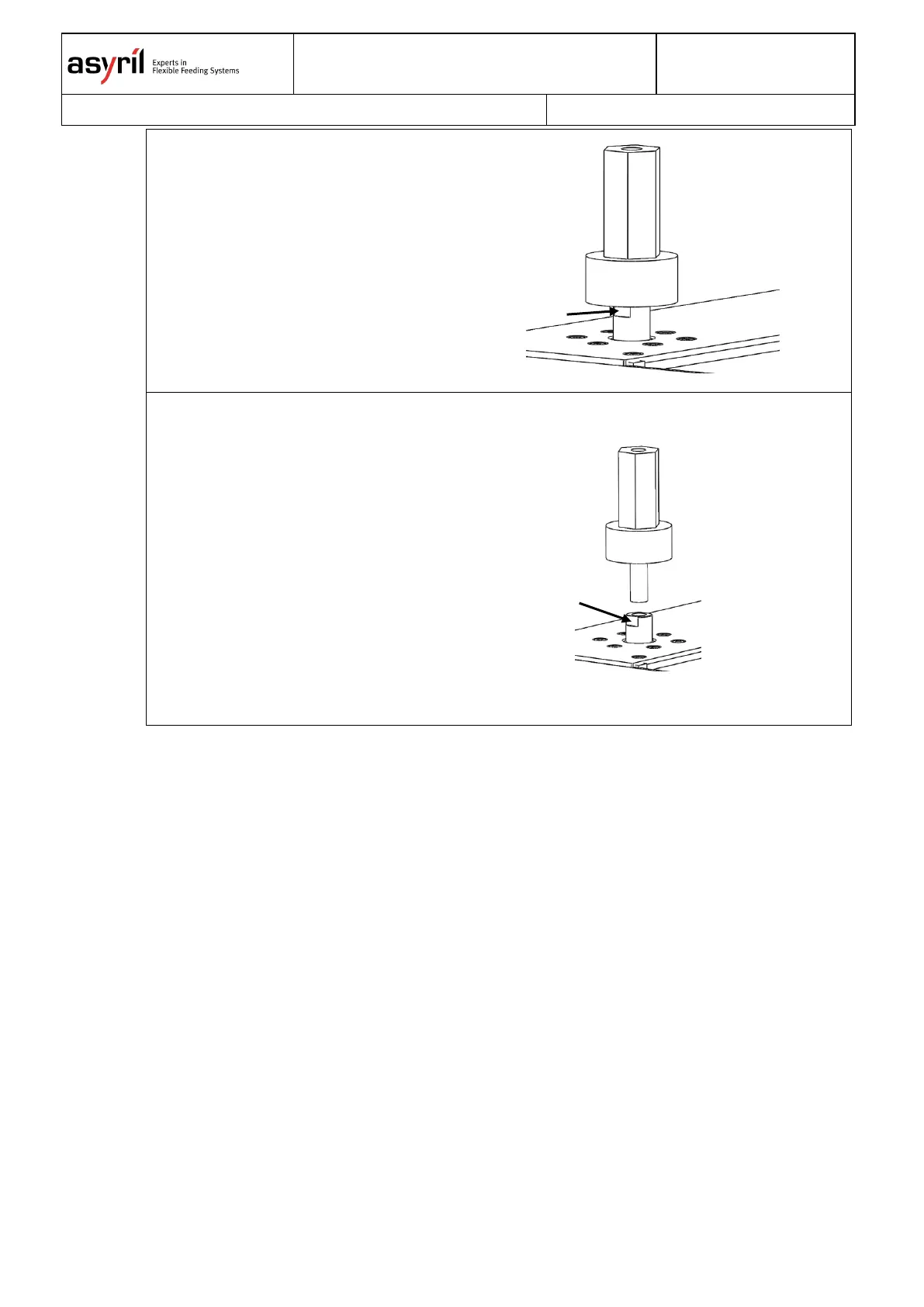

Step 3
Hold the axis (C) with a size 10
open-end wrench whilst you
loosen the ball joint (D)
Step 4
Apply a drop of adhesive (type:
Loctite 243 or similar) to the
outer thread of the new ball
joint.
Securely tighten the new ball
joint (D) BY HAND (do not use
a tool) (mounting bush +
extension), whilst maintaining
the axis (C) with a size 10
open-end wrench
(C)
(D)
(D)
(C)
