Asyril Asycube 530 User Manual

Asycube 380 & 530
Operating Manual
000.101.151
Version: B
38/50

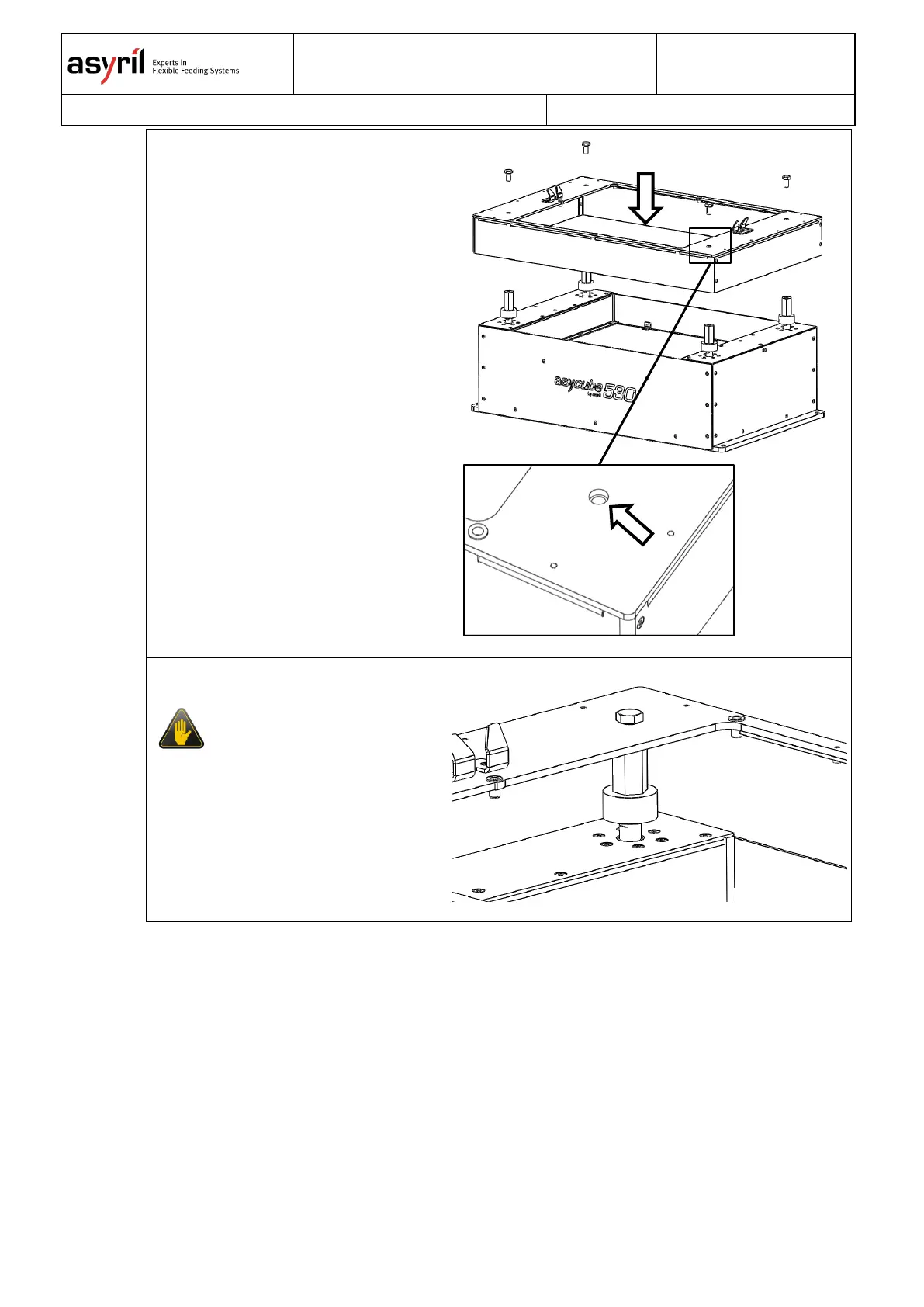

Step 5
Place the upper assembly (B)
on the 4 ball joints and
carefully align the holes
opposite the threads
Step 6
Apply a drop of adhesive (type:
Loctite 243 or similar) to the
nuts
Tighten (4.4 Nm) the four nuts
WHILST HOLDING the
hexagonal extension (H) with a
size 17 open-end wrench
(B)
(H)
