Step 5
Step 6
Step 7

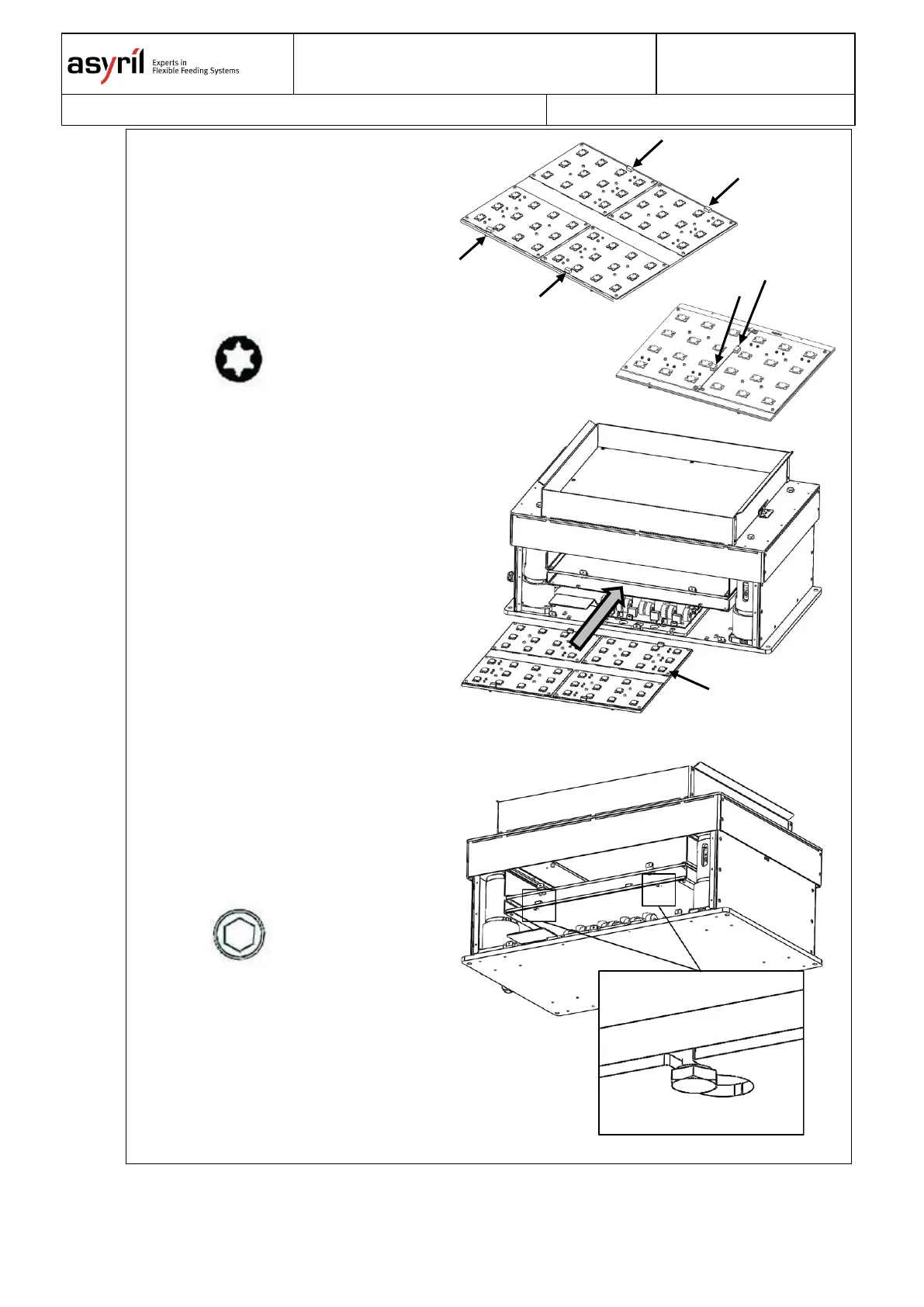

Replace the backlight boards
respecting the position of the
connector (F), and tighten the 8
screws (0.7 Nm)
Take care to remove the
protective film on the underside
of the backlight board
Use a torx key size 10
Insert the backlight assembly
(G) and align it with the support
Tighten the four
bolts (H)
Use a flat wrench size 5.5
(F)
(G)
(H)
530
380
(F)
