2. Asycube integration

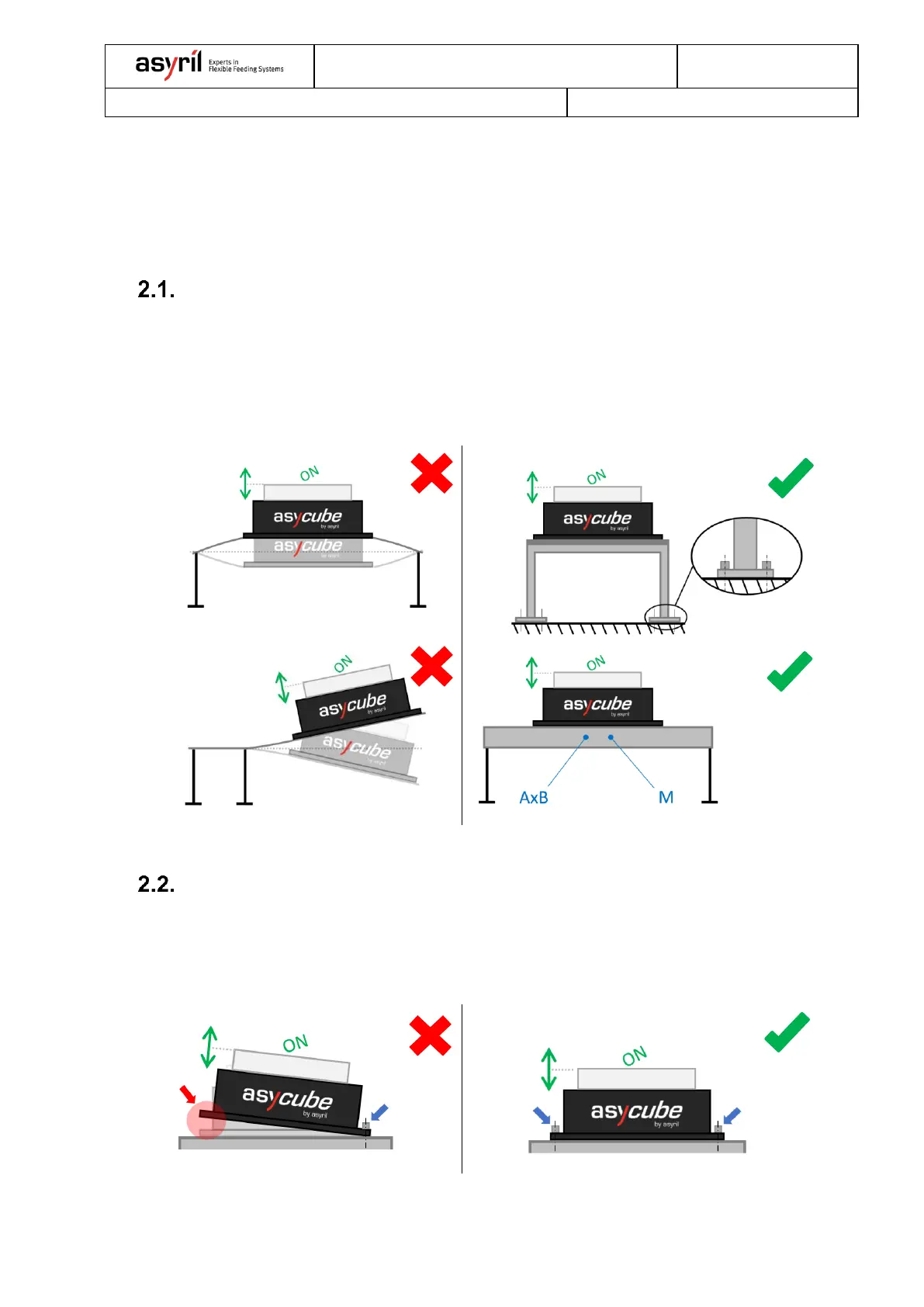

To ensure good vibration behavior the Asycube must be correctly fixed on a support specifically
defined for the application. An incorrect installation of the Asycube could compromise the
performances of the product.
Asycube position on support and support characteristics
The Asycube must be fixed either on a rigid support screwed to the ground or on a "free" heavy
support. For the second application the mass [M] and the dimensions [AxB] of the support must
be large enough to absorb the vibrations generated by the feeder. These mass and dimensions
are summarized in: Table 5-1 - Support characteristics.
Fixing the Asycube on its support
The Asycube must be properly screwed on the support. The quantity of screws necessary to
fix the base plate of the Asycube and the screws dimensions are summarized in: Table 5-2 -
Screws detail.
