Atari 2600 Installation Instructions

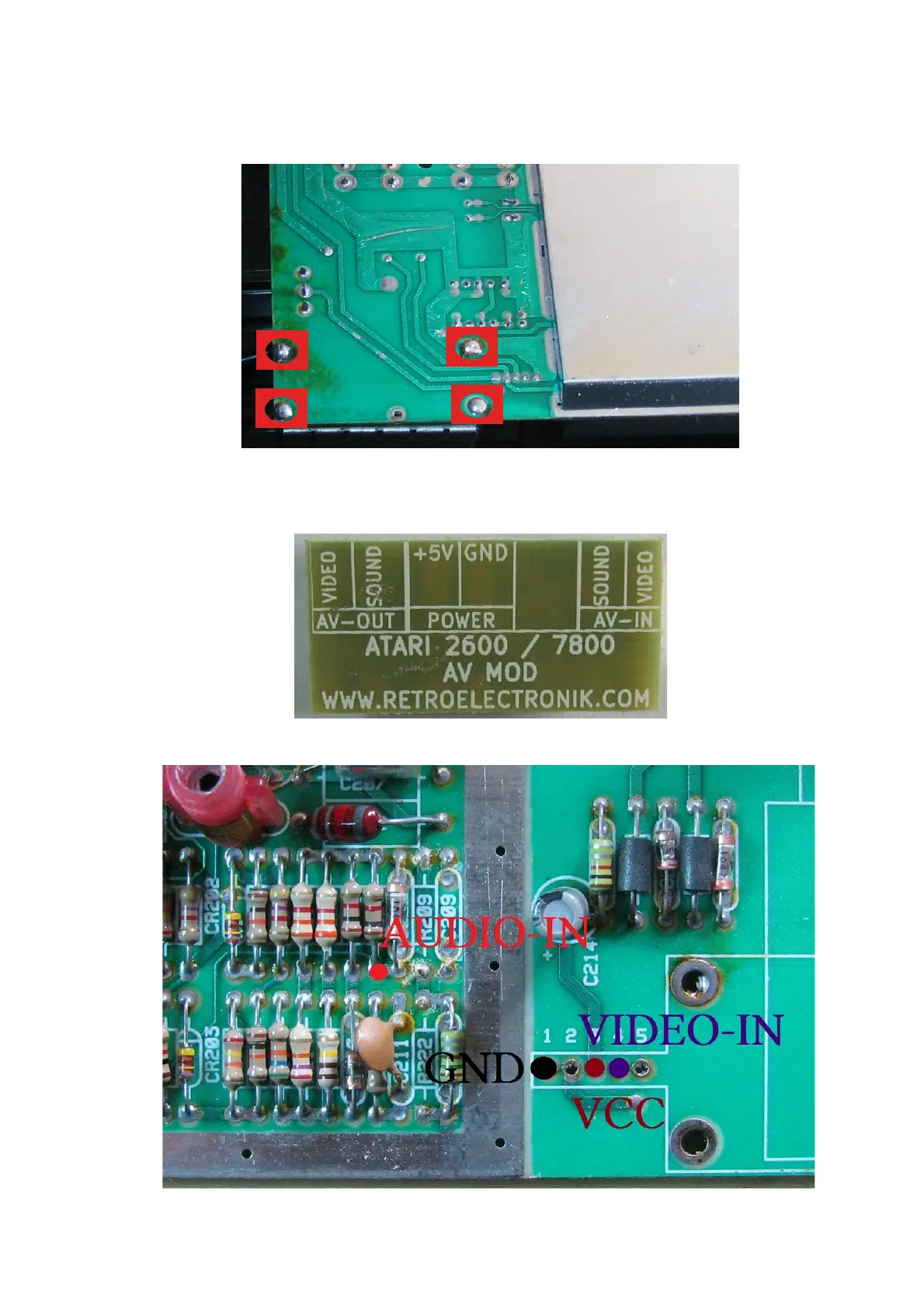

We can also optionally unsolder and remove completely the RF Box as we're not going to use it
anymore. To do that,there is 4 big solder points to desolder, they're linked to the GND so it's easy to
do and there is no major risks.points to unsolder :
To connect your AV mod ,only 4 solder points are needed.See the back of your AV mod to know
which wire to solder ( Concerning GND please solder the biggest wire to the motherboard)
Below are the 4 solder points to do :

Atari 2600 Specifications

General

Manufacturer	Atari, Inc.
Release Date	September 11, 1977
CPU	MOS Technology 6507
CPU Speed	1.19 MHz
RAM	128 bytes
Graphics	Television Interface Adaptor (TIA)
Media	ROM cartridge
Successor	Atari 5200
Colors	128
Sound	2 channels
ROM	4 KB
Controller Input	Joystick
