Atari 2600 Installation Instructions

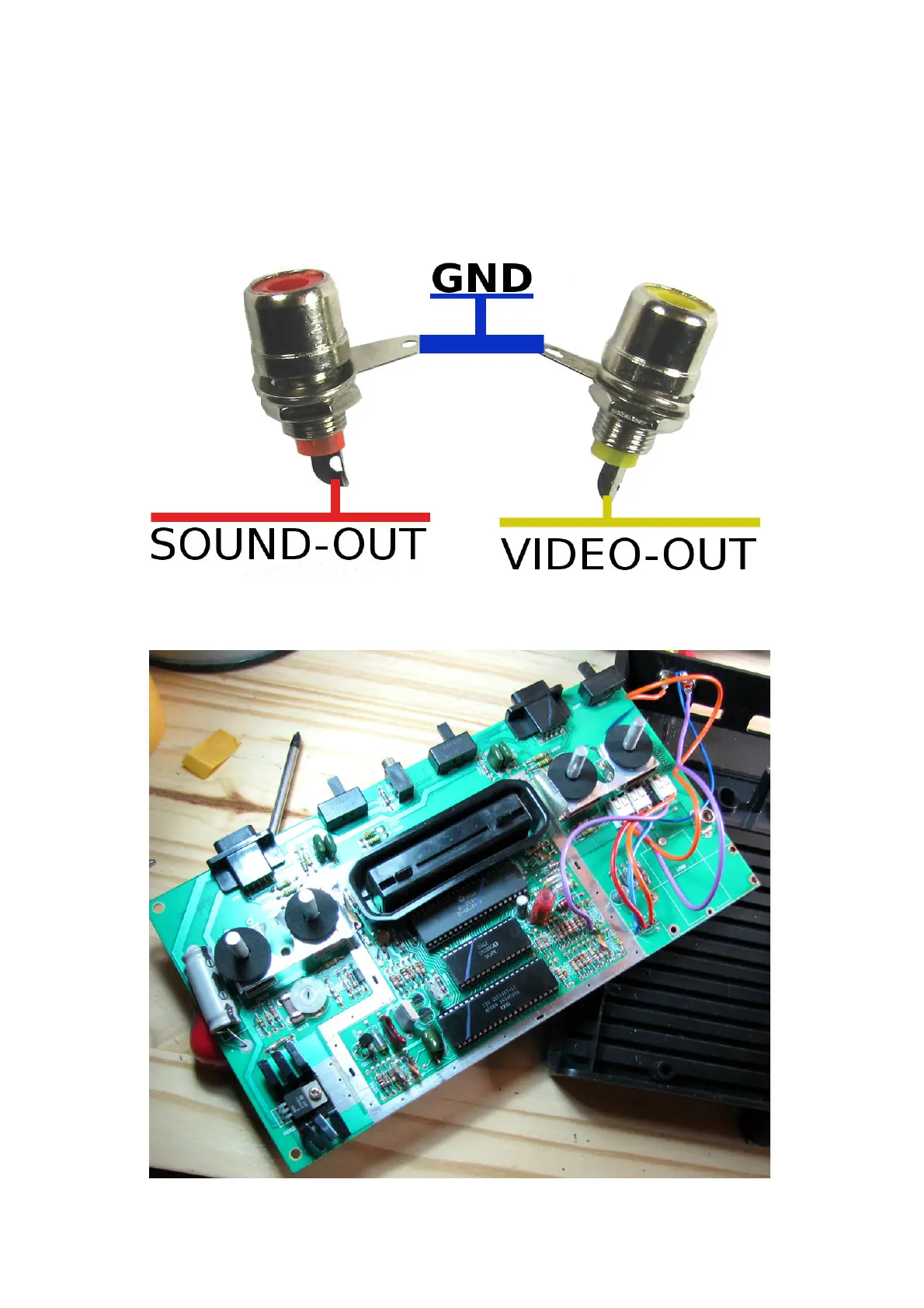

Now solder the Audio-out on the white or red (may vary) RCA connector , solder de Video-out to
the red or black RCA connector. Then connect both RCA GND together and to the GND power
small wire ,just like this :
you can now fix your AV mod with the double sided tape provided. There is a perfect place just near
the « Game Reset » switch. The result should be something like :

Atari 2600 Specifications

General

Manufacturer	Atari, Inc.
Release Date	September 11, 1977
CPU	MOS Technology 6507
CPU Speed	1.19 MHz
RAM	128 bytes
Graphics	Television Interface Adaptor (TIA)
Media	ROM cartridge
Successor	Atari 5200
Colors	128
Sound	2 channels
ROM	4 KB
Controller Input	Joystick
