Atari 800XL Wiring Diagram

1 2 3 4 5 6
1 2 3 4 5 6
A
B
C
D
A
B
C
D
Date: 2020-01-15
KiCad E.D.A. kicad (5.1.4-0-10_14)
Rev: 2Size: A4
Id: 2/11

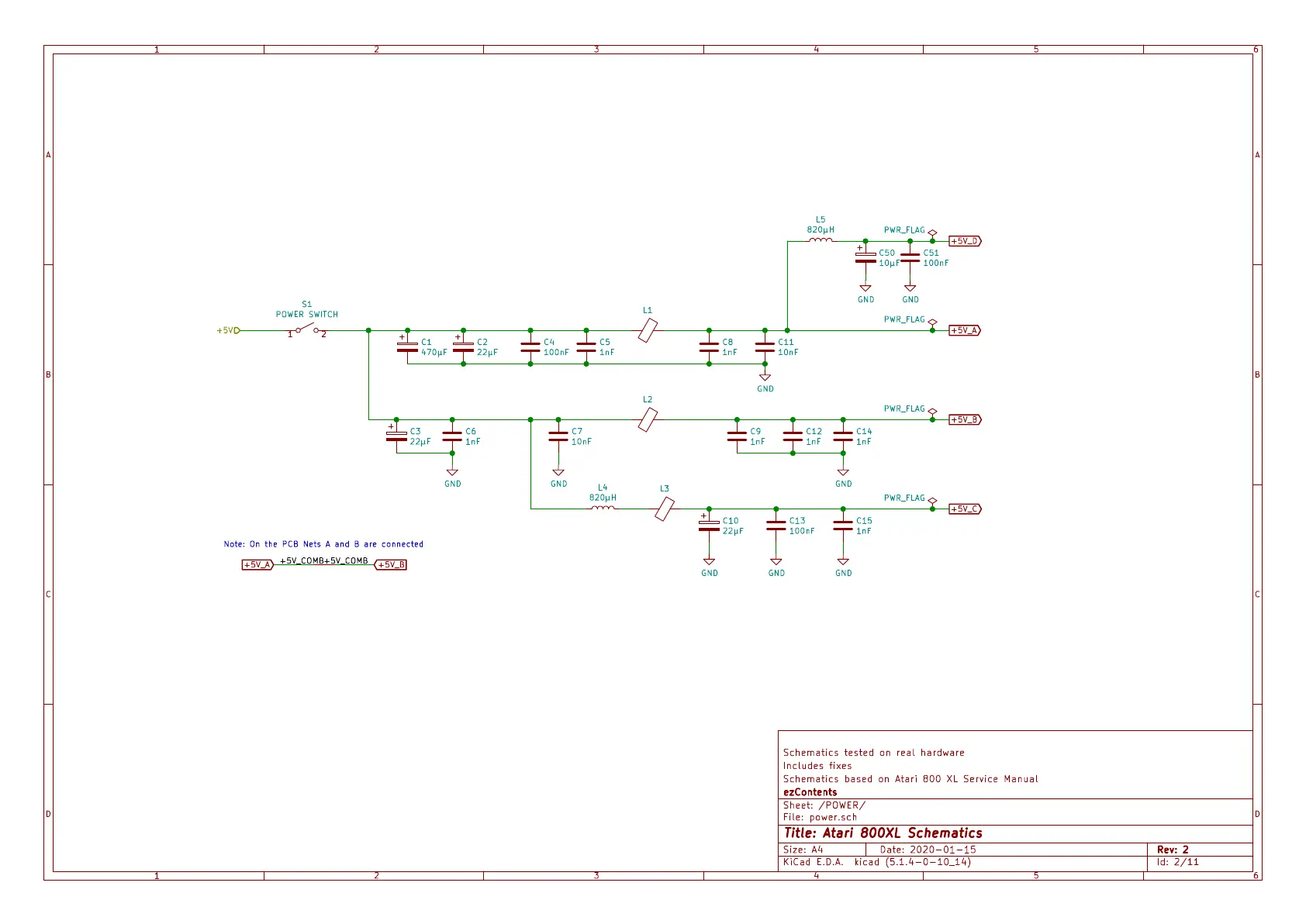

Title: Atari 800XL Schematics
File: power.sch
Sheet: /POWER/
ezContents
Schematics based on Atari 800 XL Service Manual
Includes fixes
Schematics tested on real hardware
C6
1nF
C5
1nF
C8
1nF
C11
10nF
PWR_FLAG
PWR_FLAG
PWR_FLAG
PWR_FLAG
1 2
S1
POWER SWITCH
L3
L2
L1
GNDGND
GND
C51
100nF
C50
10µF
C3
22µF
C7
10nF
C4
100nF
L5
820µH
GNDGNDGND
C15
1nF
C13
100nF
C10
22µF
L4
820µH
GNDGND
C2
22F
C1
470F
C9
1nF
C12
1nF
C14
1nF
GND
+5V +5V_A
+5V_B
+5V_C
+5V_D
+5V_A +5V_B
+5V_COMB +5V_COMB
Note: On the PCB Nets A and B are connected
