Atari PONG 4P User Manual

PONG 4P D&B Manual
11/18/2019
36

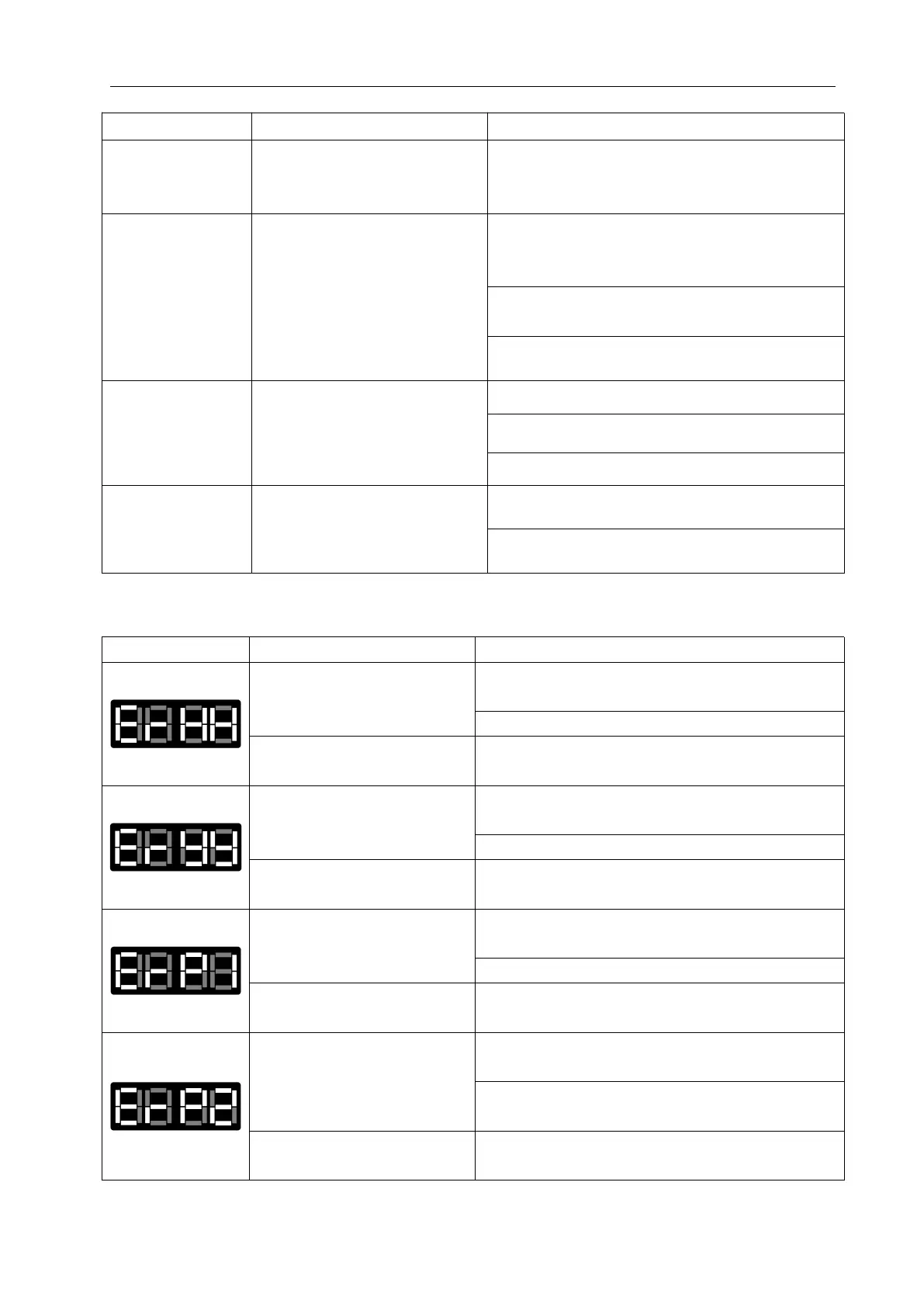

Symptom
Possible Cause
Recommended action
Glass playfield
has scratches
There is friction between
the rail and underneath
glass graphics.
Adjust the rail magnet height downward.
Digital board
error of LED
display
The sensor is not working,
the motor is not working.
Check the motor works normally or not, if
not normal, check the driver and
corresponding motor and fuse.
If motor works normally, check the
corresponding sensor.
Replace the fuse, sensor and driver.
LED light strip
not work
Light strip connectors are
loose, fuse blown.
Check the light strip connects properly.
Check the fuse.
Replace light strip.
The motor
doesn’t work
The driver is broken,
causes fuse overload
protection.
Replace the driver or check the motor.
Check and replace the fuse.
Error code
Possible Cause
Recommended action
Motors of Ball X axle
doesn’t work.
Check the connection of motors of Ball X
axle.
Check the motors of Ball X axle.
Malfunctioning Sensor of
Ball X axle
Check the sensor of Ball X axle.
Motor of Ball Y axle
doesn’t work.
Check the connection of motor of Ball Y
axle.
Check the motor of Ball Y axle.
Malfunctioning Sensor of
Ball Y axle
Check the sensor of Ball Y axle.
Motor of Red player(P1)
Paddle doesn’t work.
Check the connection of motor of Red
player(P1) Paddle.
Check the motor of Red player(P1) Paddle.
Faulty Sensor of Red
player(P1) Paddle
Check the sensor of Red player(P1) Paddle.
Motor of Yellow player(P2)
Paddle doesn’t work.
Check the connection of motor of Yellow
player(P2) Paddle.
Check the motor of Yellow player(P2)
Paddle.
Faulty Sensor of Yellow
player(P2) Paddle.
Check the sensor of Yellow player(P2)
Paddle.
