Atari PONG 4P User Manual

PONG 4P D&B Manual
11/18/2019
41
Kit list (Following accessories)
No.
Part No.
Name
Qty
1
P163-131-000
Adjust plate A (Short)
1
2
P163-132-000
Adjust plate B (Long)
1
3
P163-362-000
Cross recessed pan
head screw set
2

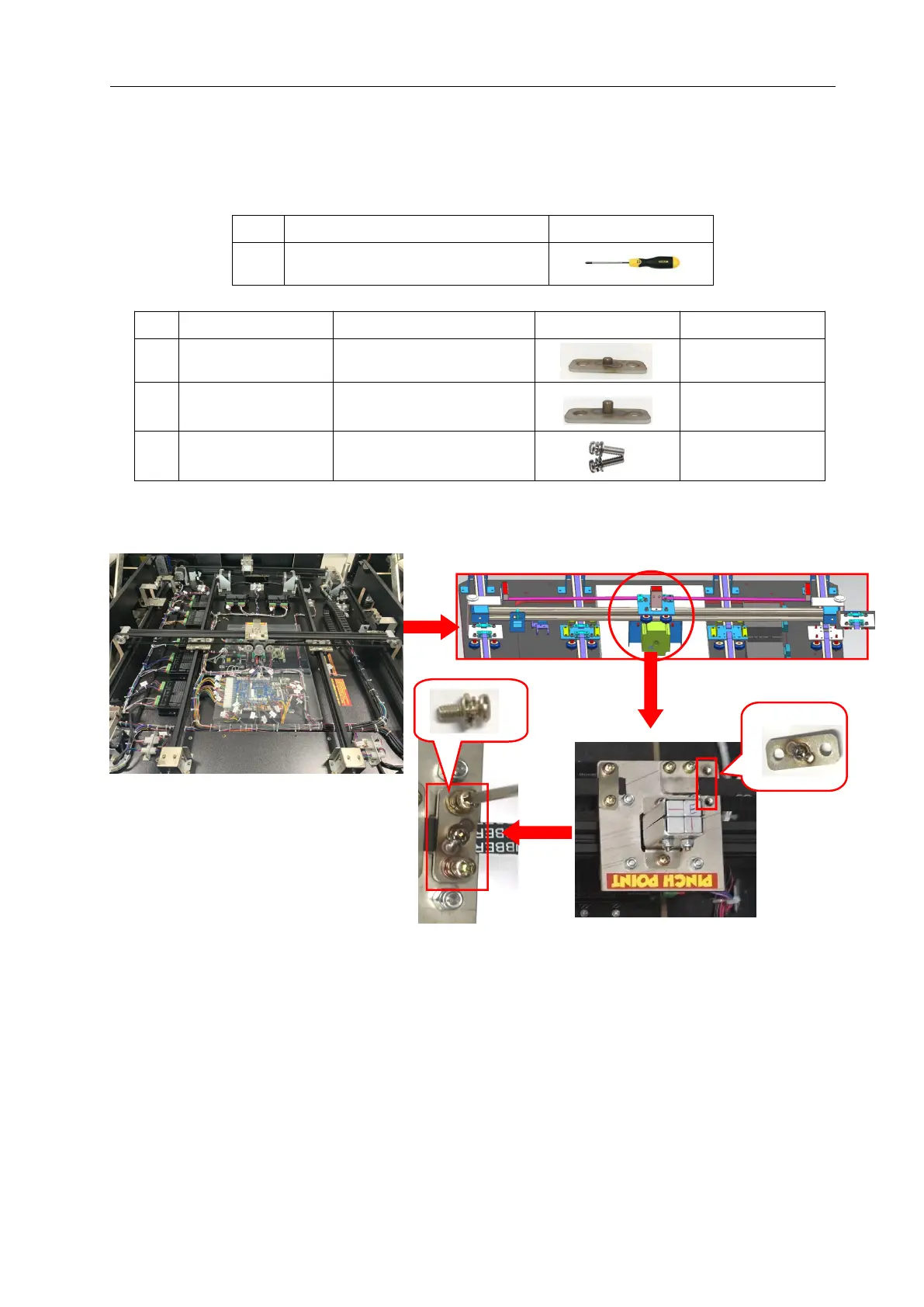

8.7 Belt Tension Adjustment Instruction for Y Axle
If noise is heard from the axles inside the machine, one of the reasons is that the belt has
loosened. Here is the process to tighten the belt.
Before processing ensure you have the following tool.
Step 1 Follow the 8.6 steps to access Movement Mechanism.
Step 2 Locate Ball movement mechanism and place Adjust plate A on it. Utilize Phillip's
screwdriver to tighten two screws to fix the Adjust plate A to the Ball movement mechanism.
Step 3 If the belt is still loose, please remove Adjust plate A and install Adjust plate B to the Ball
movement mechanism. (The installation method is the same as Step 2.)
No.
Name
1
Phillip's screwdriver
