8.10 Marquee Monitor Replacement
Before processing assure you have the following tools.
NO.
Name
1
Phillips screwdriver
2
Allen wrench
3
Ladder

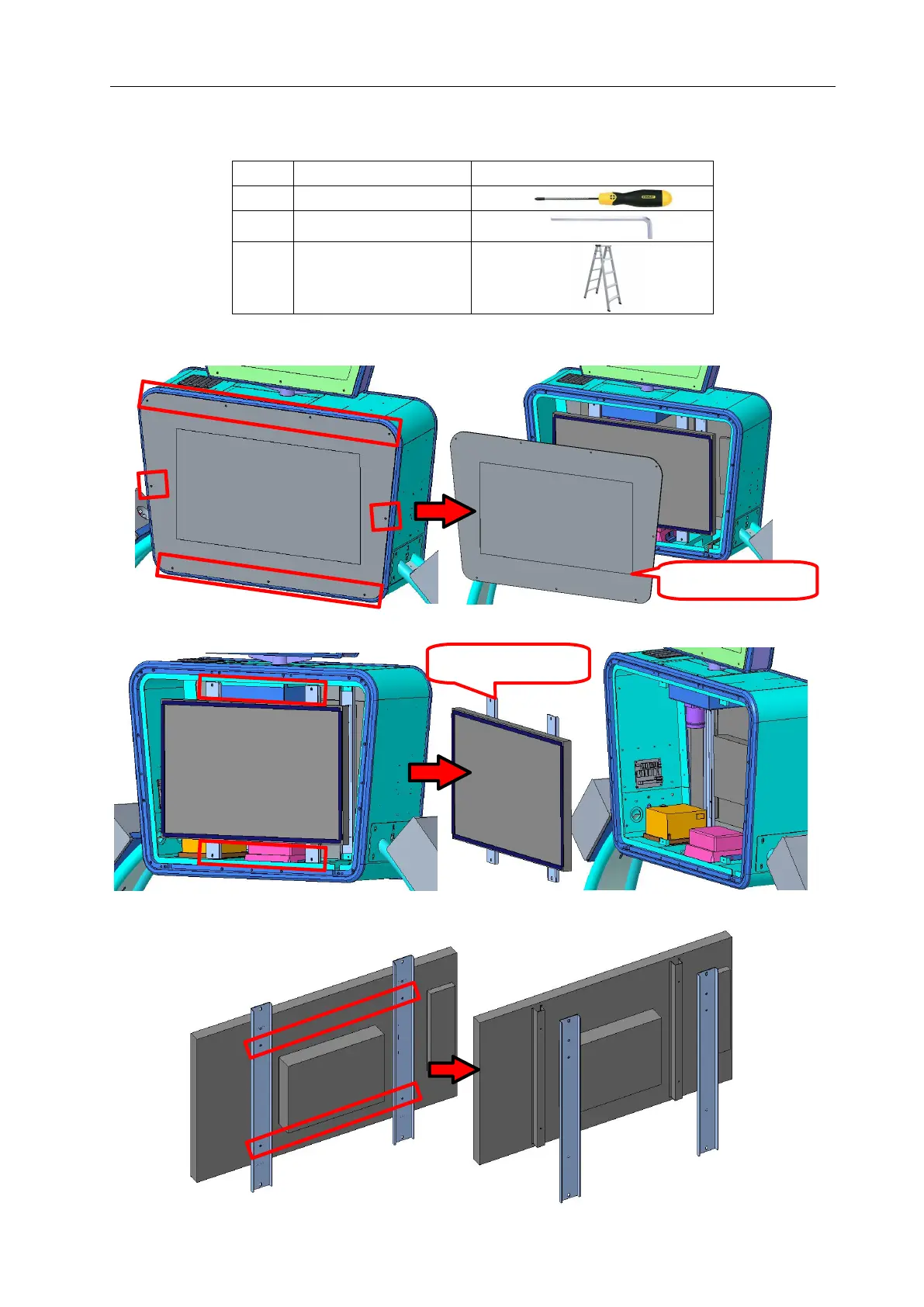

Step 1 Utilize Allen wrench to loosen 9 screws indicated by rectangles; remove the Monitor
plastic and put aside.
Step 2 Utilize Phillips screwdriver to loosen 4 screws on the Monitor brackets; remove the
Monitor assembly.
Step 3 Utilize Phillips screwdriver to loosen 4 screws on the Monitor brackets; remove the
Monitor. Replace with a new Monitor and install in reverse order.
Note: Use extreme caution and safety with supervision.
Monitor bracket
Monitor plastic
