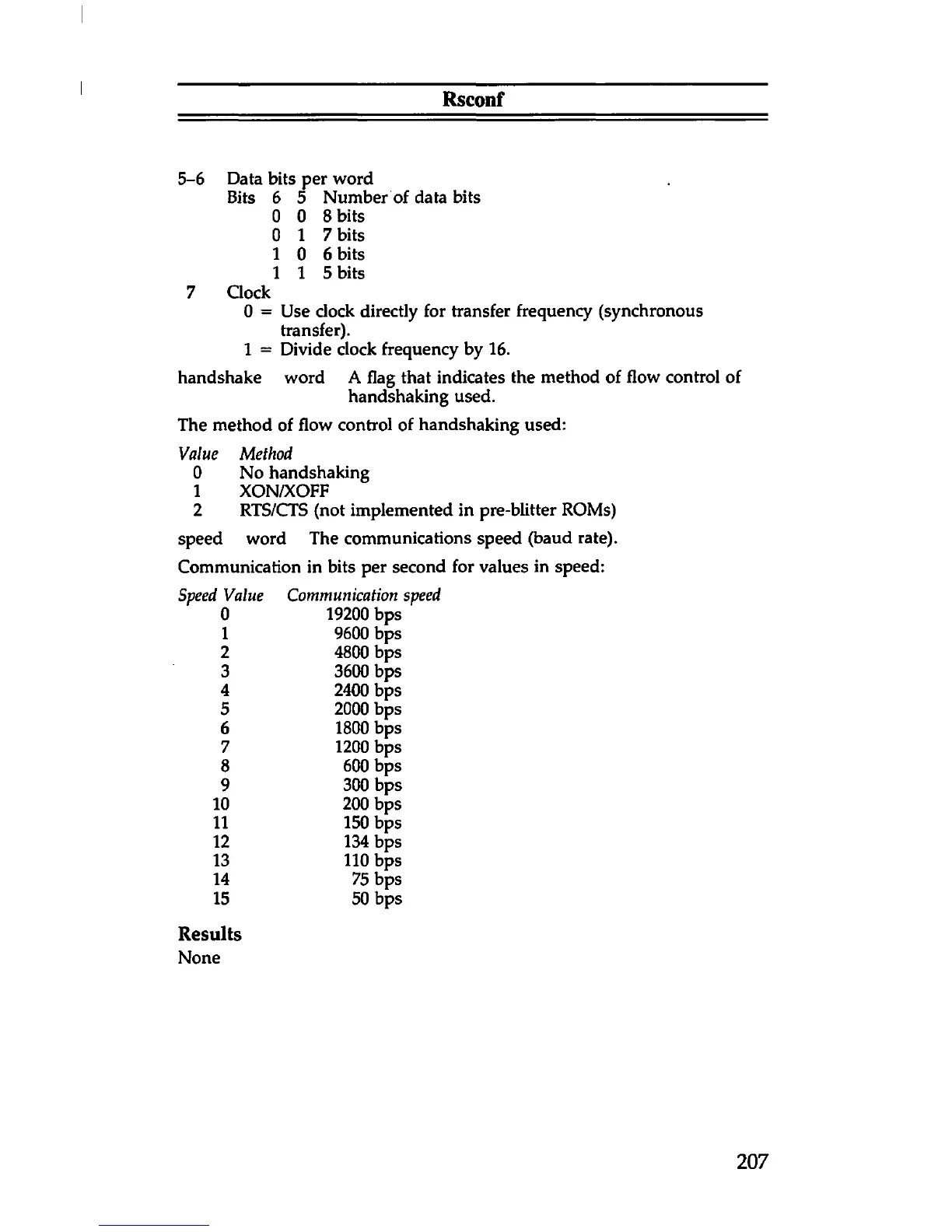

Rsconf
D ata bitsI p e r w o rd
Bits 6 5
N u m b er o f da ta b its
0 0 8 bits
0 1 7 bits
1
0
6 bits
1 1
5 bits
7 C lo ck
0 = U s e clo ck directly fo r tran sfe r freq u en cy (s yn ch ro n o u s
tra n s fe r).
1 = D iv id e clo ck fre q u en cy b y 16.
h a n d sh ak e w o rd A flag th at in d icate s th e m eth o d o f flow con tro l of
h an d sh ak in g u se d .
T h e m eth o d of flow co n tro l o f h an d sh a k in g u se d :
Value Method
0 N o h an d sh ak in g
1 X O N /X O F F
2 R TS/C T S (n o t im p le m e n te d in p re -b litter R O M s)
sp eed w o rd T h e co m m u n ica tio n s sp e ed (b au d ra te).
C o m m u n ica tio n in bits p er se co n d for v alu es in s p eed :
Speed Value Communication speed
0 1 92 00 bp s
1 9 6 00 b p s
2
4 8 0 0 b p s
3
3 60 0 b ps
4
2 4 0 0 b p s
5 2 0 00 b p s
6 18 00 b p s
7 1 200 bp s
8 6 0 0 b p s
9 3 0 0 b p s
10 2 0 0 b p s
11
15 0 b p s
12
13 4 bp s
13 11 0 b ps
14
75 b p s
15 5 0 b p s
Results
N o n e
