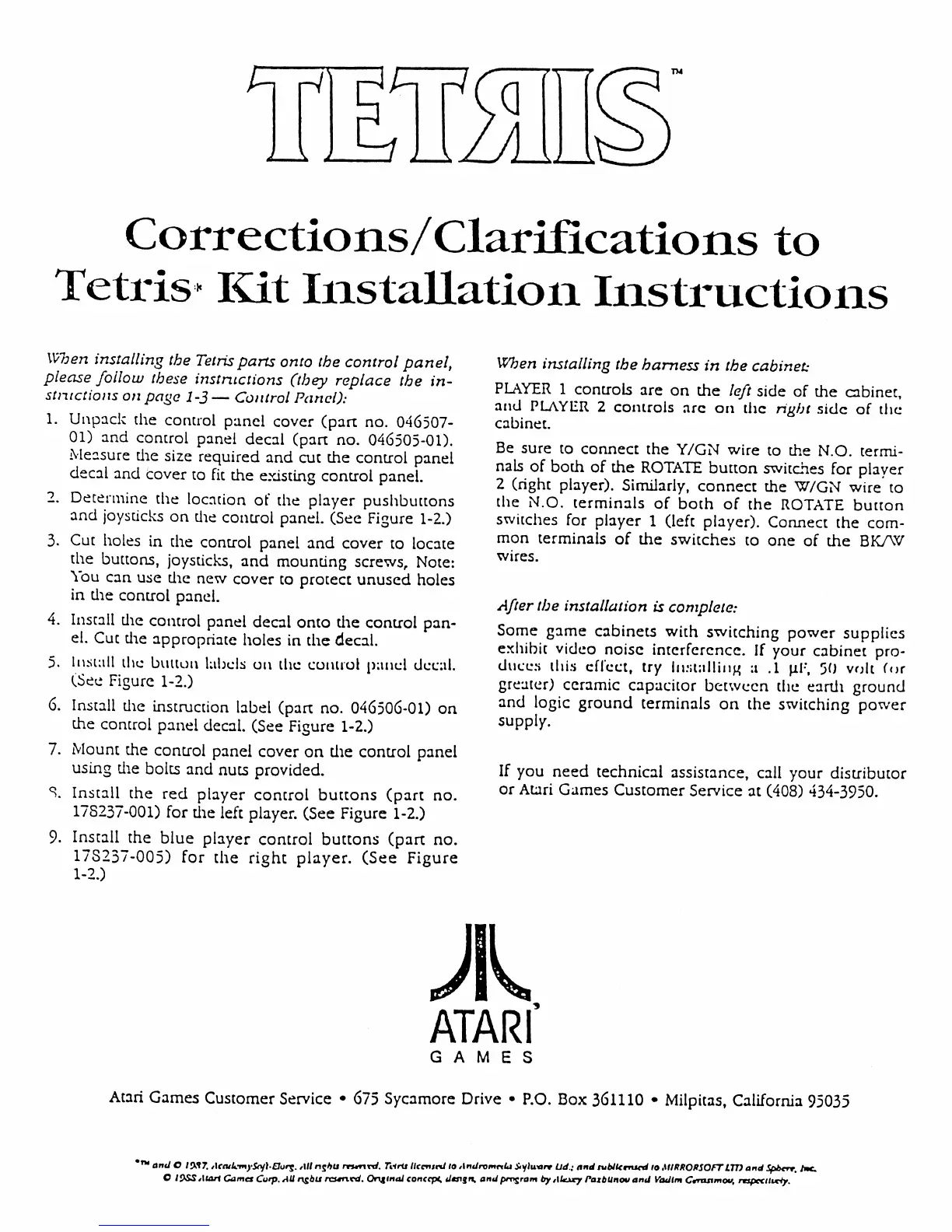

Corrections/ Clarifications to
Tetl·is* IUt Il1stallatioll 111St1
9
uctiOl1.S
\\i7Jen installing the Tetris parts onto the control panel,
please follow these instruc/ions (they replace the in-
s/ntctiollS 012 page 1-3 - COl/troL Pane/):
1. Unpack the control pancl cover (part: no. 046507-
01) and comrol panel dec:J.I (p:J.rt: no. 046505-01).
!\'ie::!sure the size required and cut the control panel
dec:J.I and cover to fit the existing control panel.
., Determine the loc:ttion of [he player pushbu[(ons
and joysticks on tile control paneL (See Figure 1-2.)
3. Cut holes in (he control panel and cover to loc:lte
the buttons, joysticks, and mounting screws, Note:
You c:m use the new cover to protect unused holes
in the control pando
4. Install the comrol panel deal onto the control pan-
el. Cut the :J.ppropriatc holes in the decal.
5. 11lSl:dl lhe LHIllLlll I:lbds Ull tht: t:ul1lrul p:l1ld 1.1I.:c.::11.
(Set.: Figure 1-2.)
6. Inst:J.ll the instruction bbel (part no. 046506-01) on
the control panel decal. (See Figure 1-2.)
7. Mount the control panel cover on the control p:mel
using the bolts and nuts provided.
S. Ins(::tll (he red player control buttons (part no.
178237-001) for the left player. (See Figure 1-2.)
9. Install the blue player control burtons (part no.
173237-005) for the right player. (See Figure
1-2.)
When installing the harness in the cabinet:
PLWER 1 controls are on the left side of the Clbiner,
:lIlU PLAYER 2 controls ;'Irc on thc right sidc of tile
cabinet.
Be sure to connect the Y/GN wire to me N.O. termi-
nals of both of the ROTATE button switches for player
2 (right player). Similarly, connect the W/GN wire to
the N.O. terminals of both of the ROTATE bu[[on
switches for player 1 (left player). Connect the com-
mon terminais of the switches to one of the BK.I\V
wires.
~fter (be installalion is complete:
Some gJ.me c:lbinets with switching power supplies
exhibit video noise interference. If your c::Ibinet pro-
UlIl:c.::; this cefc.:t:t, try Ill:ilalliJlg a .1 ~F. 50 volt (or
gre:Hl.!r) ceramic capac.:itor between tht! earth ground
and logic ground terminals on the switching power
supply.
If you need technic:ll assistance, call your distributor
or AWri Games Customer Service :It (408) 434-3950.
