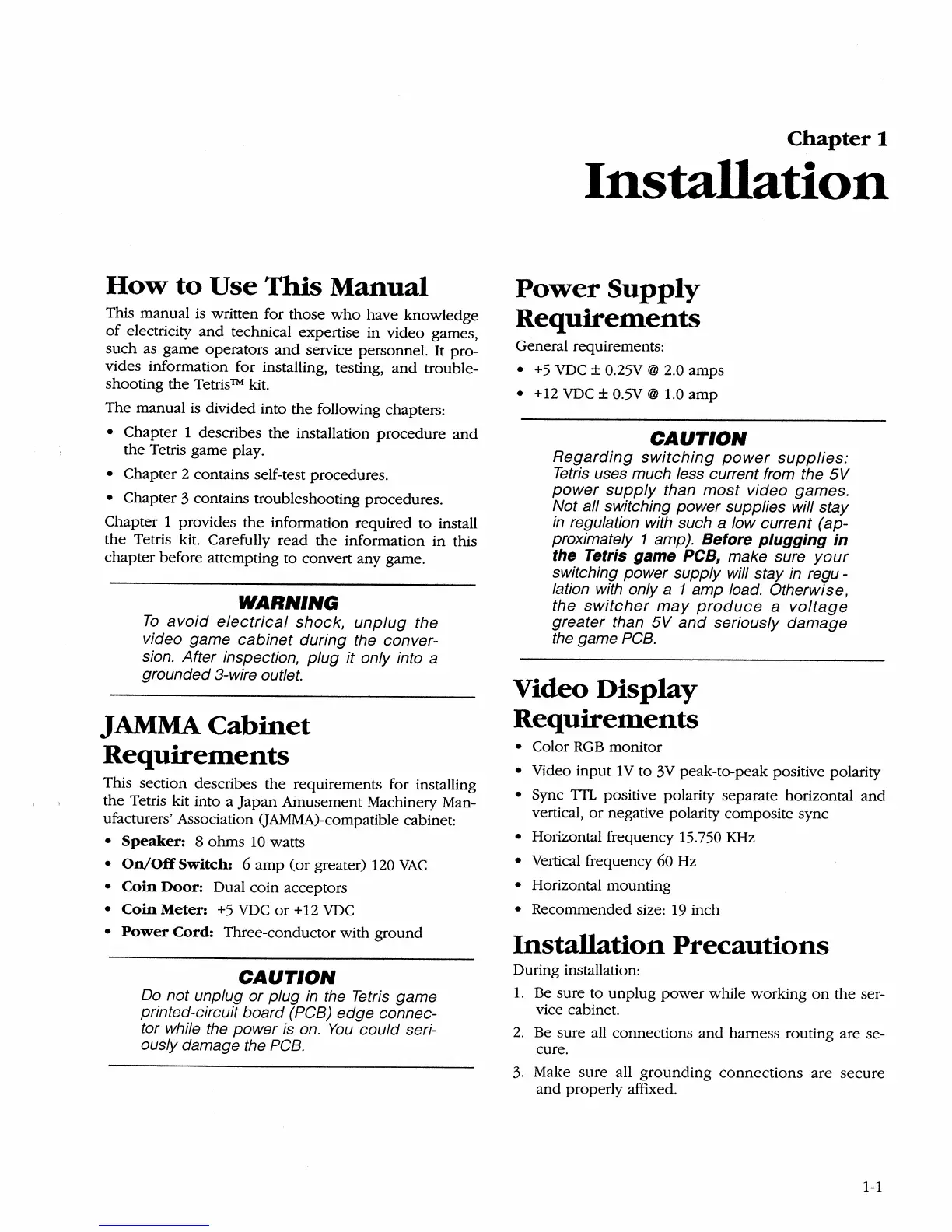

How
to
Use
This
Manual
This manual is written for those
who
have knowledge
of
electricity
and
technical expertise in video games,
such
as
game
operators
and
service personnel.
It
pro-
vides information for installing, testing,
and
trouble-
shooting
the
Tetris™ kit.
The manual
is
divided into the following chapters:
• Chapter 1 describes
the
installation
procedure
and
the
Tetris
game
play.
• Chapter 2 contains self-test procedures.
• Chapter 3 contains troubleshooting procedures.
Chapter 1 provides
the
information required to install
the
Tetris kit. Carefully
read
the
information
in
this
chapter before attempting to convert any game.
WARNING
To
avoid
electrical
shock,
unplug
the
video game
cabinet
during the conver-
sion. After inspection, plug it only into
a
grounded 3-wire outlet.
JAMMA
Cabinet
Requirements
This section describes
the
requirements for installing
the Tetris kit into a
Japan
Amusement Machinery Man-
ufacturers' Association QAMMA)-compatible cabinet:
• Speaker: 8
ohms
10
watts
•
On/Off
Switch: 6
amp
(or
greater) 120
VAC
•
Coin
Door: Dual coin acceptors
•
Coin
Meter:
+5
VDC
or
+12
VDC
•
Power
Cord: Three-conductor with
ground
CAUTION
00
not unplug or plug
in
the
Tetris game
printed-circuit board (PCB)
edge
connec-
tor while
the
power is
on.
You
could seri-
ously damage the
PCB.
Chapter
1
Installation
Power
Supply
Requirements
General requirements:
•
+5
VDC
± 0.25V @ 2.0 amps
•
+12
VDC
±
O.5V
@ 1.0
amp
CAUTION
Regarding
switching
power
supplies:
Tetris
uses much less current from the
5V
power
supply
than
most
video games.
Not all switching power supplies will stay
in
regulation with such a low current (ap-
proximately
1 amp). Before plugging in
the
Tetris game PCB, make sure
your
switching power supply will stay
in
regu-
1ation
with only a 1 amp load. Otherwise,
the
switcher
may
produce
a
voltage
greater than
5V
and
seriously damage
the game
PCB.
Video
Display
Requirements
• Color
RGB
monitor
• Video input IV to
3V
peak-to-peak positive polarity
• Sync
TTL
positive polarity separate horizontal
and
vertical,
or
negative polarity composite sync
• Horizontal frequency 15.750
KHz
• Vertical frequency
60
Hz
• Horizontal mounting
• Recommended size:
19
inch
Installation
Precautions
During installation:
1. Be sure to unplug
power
while working
on
the ser-
vice cabinet.
2.
Be sure all connections
and
harness routing are se-
cure.
3.
Make
sure
all
grounding
connections
are
secure
and
properly affixed.
1-1
