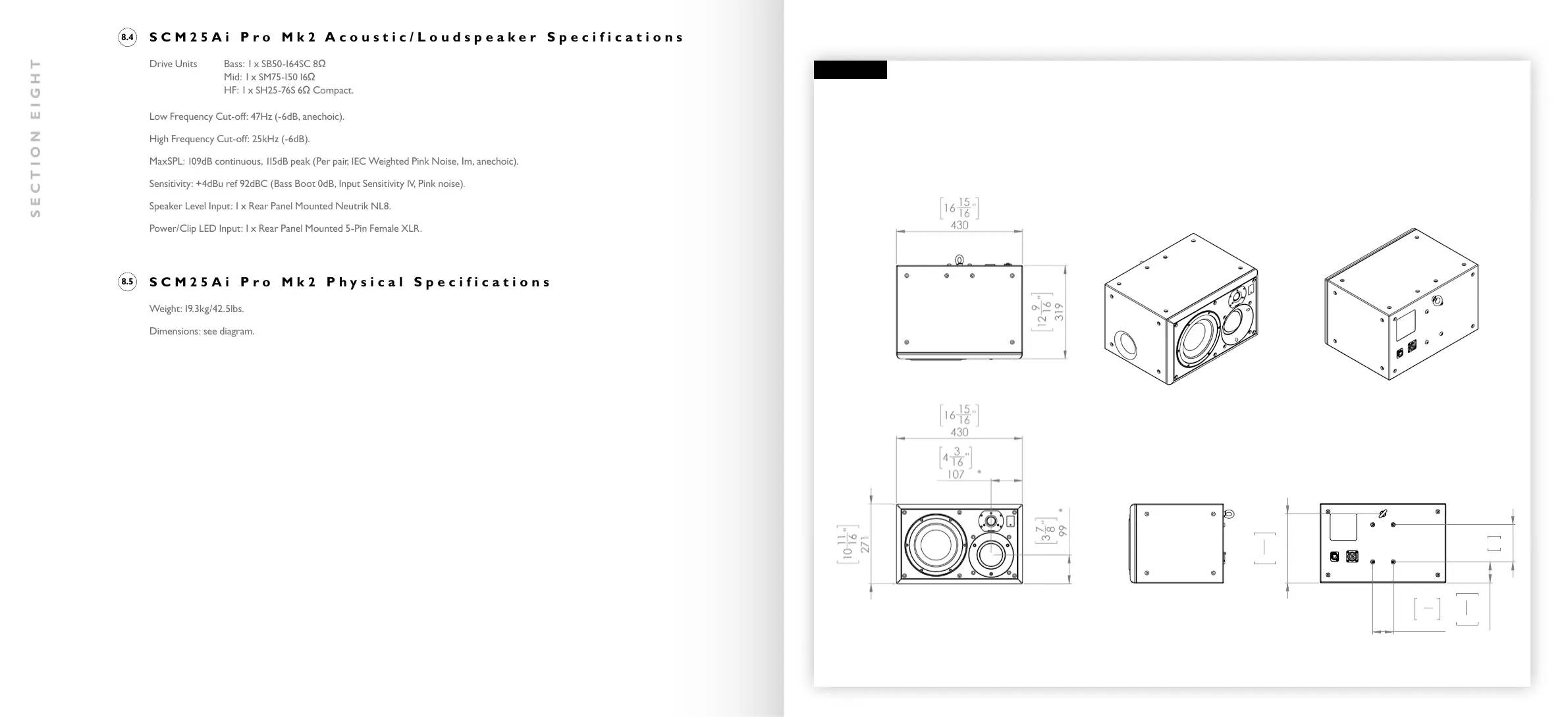

ATC PRO Series - SCM25 Ai Pro Mk2 Acoustic;Loudspeaker Specifications; SCM25 Ai Pro Mk2 Physical Specifications

Drive Units Bass: 1 x SB50-164 SC 8Ω
Mid: 1 x SM75-15 0 16 Ω
HF: 1 x SH25-76S 6Ω Compact.
Low Frequency Cut-off: 47Hz (-6dB, anechoic).
High Frequency Cut-off: 25kHz (-6dB).
MaxSPL: 109dB continuous, 115 d B peak (Per pair, IEC Weighted Pink Noise, 1m, anechoic).
Sensitivity: +4dBu ref 92dBC (Bass Boot 0dB, Input Sensitivity 1V, Pink noise).
Speaker Level Input: 1 x Rear Panel Mounted Neutrik NL8.
Power/Clip LED Input: 1 x Rear Panel Mounted 5-Pin Female XLR.
Weight: 19.3kg/42.5lbs.
Dimensions: see diagram.
SECTION EIGHT
SCM25Ai Pro M k 2 Acoustic/Loudspeaker Specifications
SCM25Ai Pro M k 2 Physical Specifications
8.4
8.5
10
11 16
"
271
16
15
16
"
430
3
7 8
"
99
*
4
3
16
"
107
*
5"
127
2
13 16
"
72
2
3
4
"
70
9
5
16
"
236
12
9
16
"
319
16
15
16
"
430
SUPPLIED IN MIRROR IMAGE PAIRS. LEFT SPEAKER SHOWN
* ACOUSTIC CENTRE
D
E
F
C
1 2 3 4
B
A
3 2 1 5
C
D
4 6 7 8
A
B
1:8 A3
5 6 7 8
E
F
DO NOT SCALE - IF IN DOUBT ASK !
STRICTLY PRIVATE AND CONFIDENTIAL - ADDRESSEE ONLY
ASSY - SCM25Ai PRO MK2
REV
DRAWN
***
***
WEIGHT
MATERIAL:
05-01-23
PROJECT
TOLERANCES UNLESS OTHERWISE STATED
MODIFICATION APPV'D
©LOUDSPEAKER TECHNOLOGY LTD 2012
ALL RIGHTS RESERVED.
This form and any attachments to it, may not be
reproduced or transmitted, in any form or by any
means, or stored in any system, without the prior
written consent of Loudspeaker Technology Ltd,
and if requested, must be immediately returned
to LoudspeakerTechnology Ltd.
SCALE
LOUDSPEAKER TECHNOLOGY LTD
GYPSY LANE
ASTON DOWN
STROUD
GLOUCESTERSHIRE GL6 8HR
TELEPHONE: 01285 760561
www.atc.gb.net
***
SCM25A PRO MK2
A
REV
*
00-00-00
SHEET METAL DIMENSIONS
INTERNAL EXTERNAL
UNDER 15 : +0.20 -0.20
15 TO 100 : +0.35 -0.35
OVER 100 : +0.50 -0.50
THIRD ANGLE PROJECTION
***
TITLE
CHK'D
MACHINED DIMENSIONS
ONE DECIMAL PLACE : +/- 0.25MM
TWO DECIMAL PLACES: +/- 0.10MM
ANGULAR: +/- 0.50DEG
NEW DRAWING - SOLIDWORKS
All copyright, design rights and any other intellectual property rights in
the contents of, or in any attachments to, this form, to include any plans,
design, photographs, specifications and other materials, remain the
exclusive property of Loudspeaker Technology Ltd, are strictly private
and confidential, and may not be reproduced or transmitted, in any form
or by any means, or stored in any system, without the prior written
consent of Loudspeaker Technology Ltd and, if requested, must be
immediately returned to Loudspeaker Technology Ltd.
PAPER
DWG NO.
RJN
***
FINISH:
***
ALL DIMENSIONS IN MILLIMETRES U.O.S. - REMOVE SHARP EDGES
DATE
SCM25Ai PRO MK2
A
REMOVE ALL BURRS & SHARP EDGES 1.
(BREAK ALL EDGES - MAX 0.2 RAD)
PLEASE PACK & HANDLE TO AVOID ANY 2.
DENTS, BRUISING & SCRATCHES
THIS IS A COSMETIC PART 3.
THERE MUST BE NO VISIBLE MACHINING MARKS 4.
SHEET 2 OF 2
DIAGRAM 12
SCM25Ai PRO MK2
