ATEN CN8000 User Manual

1. Introduction
11

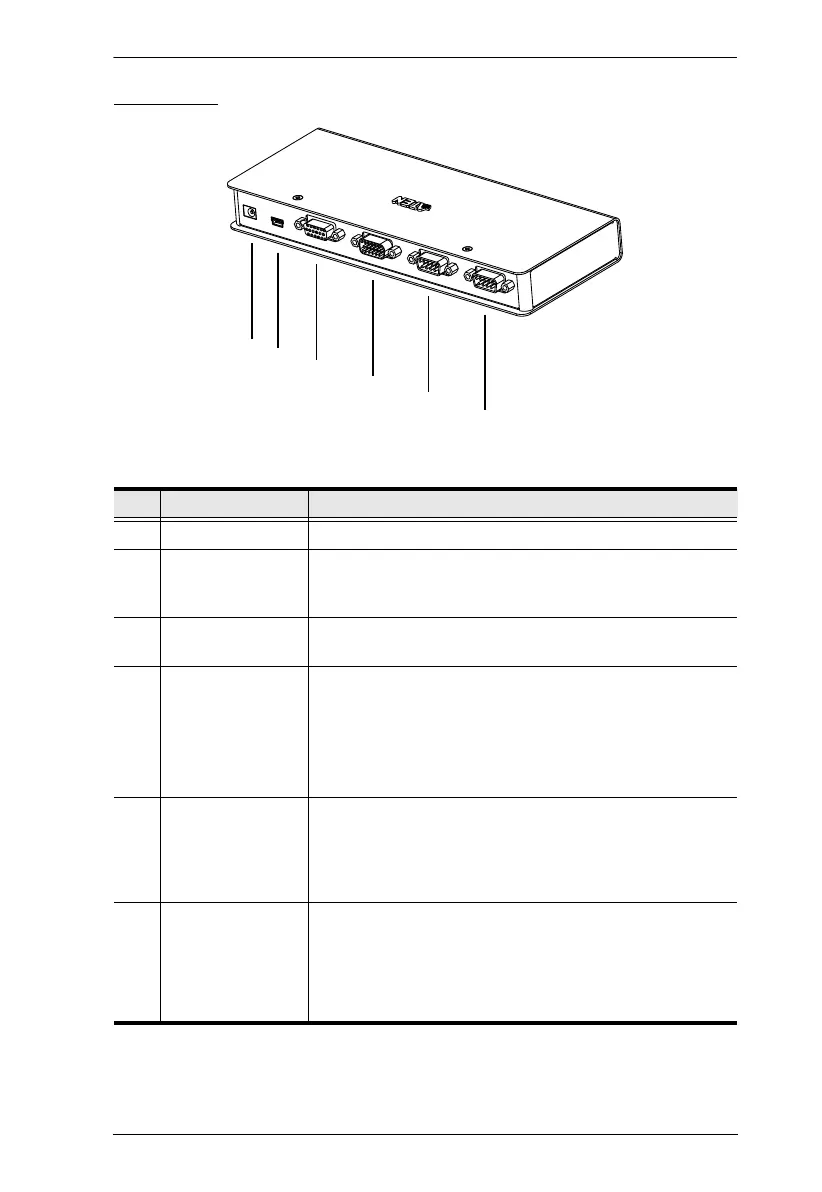

Rear View
No. Component Description
1 Power Jack The power adapter cable plugs in here.
2 Virtual Media Port The cable that connects the CN8000 to a USB port on your
server or KVM switch plugs in here. See Virtual Media,
page 85, for virtual media details.
3 PC/KVM Port The KVM cable (supplied with this package) that links the
CN8000 to your server or KVM switch plugs in here.
4 Console Port The CN8000 can be accessed via a local console as well
as over the Net. The cable for the local console (keyboard,
monitor, and mouse) plugs in here. The console can use
either a PS/2 or USB keyboard and mouse. Each
connector is color coded and marked with an appropriate
icon to indicate itself.
5PON Port This port is made available for use with a Power over the
NET™ remote power management module. If you connect
a PON device, its cable plugs in here. Refer to the User
Manual that came with the PON device for operation
details.
6 RS-232 Port This serial port is provided for:
1. Serial console management (see Console
Management, page 51 for details); or
2. Out-of-band modem operation (see OOBC, page 54 for
details).
1
2
4
3
5
6

ATEN CN8000 Specifications

General

Dimensions (WxDxH)	81 x 200 x 25 mm
Product color	Black
Power consumption (typical)	6.3 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 50 °C
Storage relative humidity (H-H)	0 - 80 %
DC-in jack	Yes
Ethernet LAN (RJ-45) ports	1
Motherboard chipset	-
Built-in speaker(s)	No

Weight and Dimensions

Depth	200 mm
Width	81.5 mm
Height	25 mm
Weight	490 g
