GasSens Gas Detection System Section 1 - Overview
O & M Manual
A14-RK, 8/06 1 - 14
Multipoint systems supplied in “Large” type enclosures use a 65 watt power supply located in
the top of the enclosure. This power supply is designed to power up to 12 of the A14 receiver
modules. Figure 1-8 shows typical wiring for this type of system.

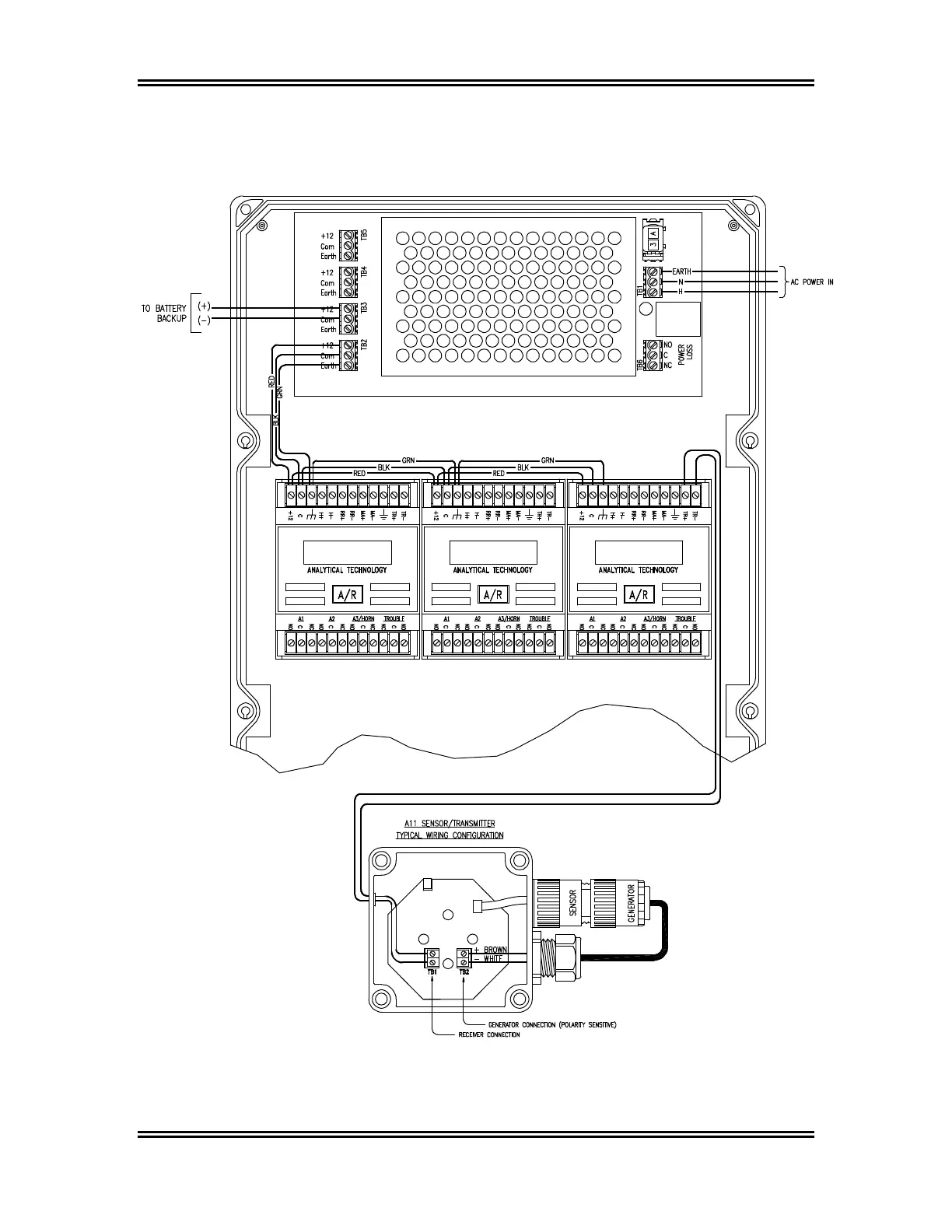

Figure 1-8: 65W Power Supply to A11 Wiring Diagram (ATI-0544)
