GasSens Gas Detection System Section 5 - A11-10 Br
2
Sensor/Transmitter
O & M Manual
Revision E, 10/15 5 - 3

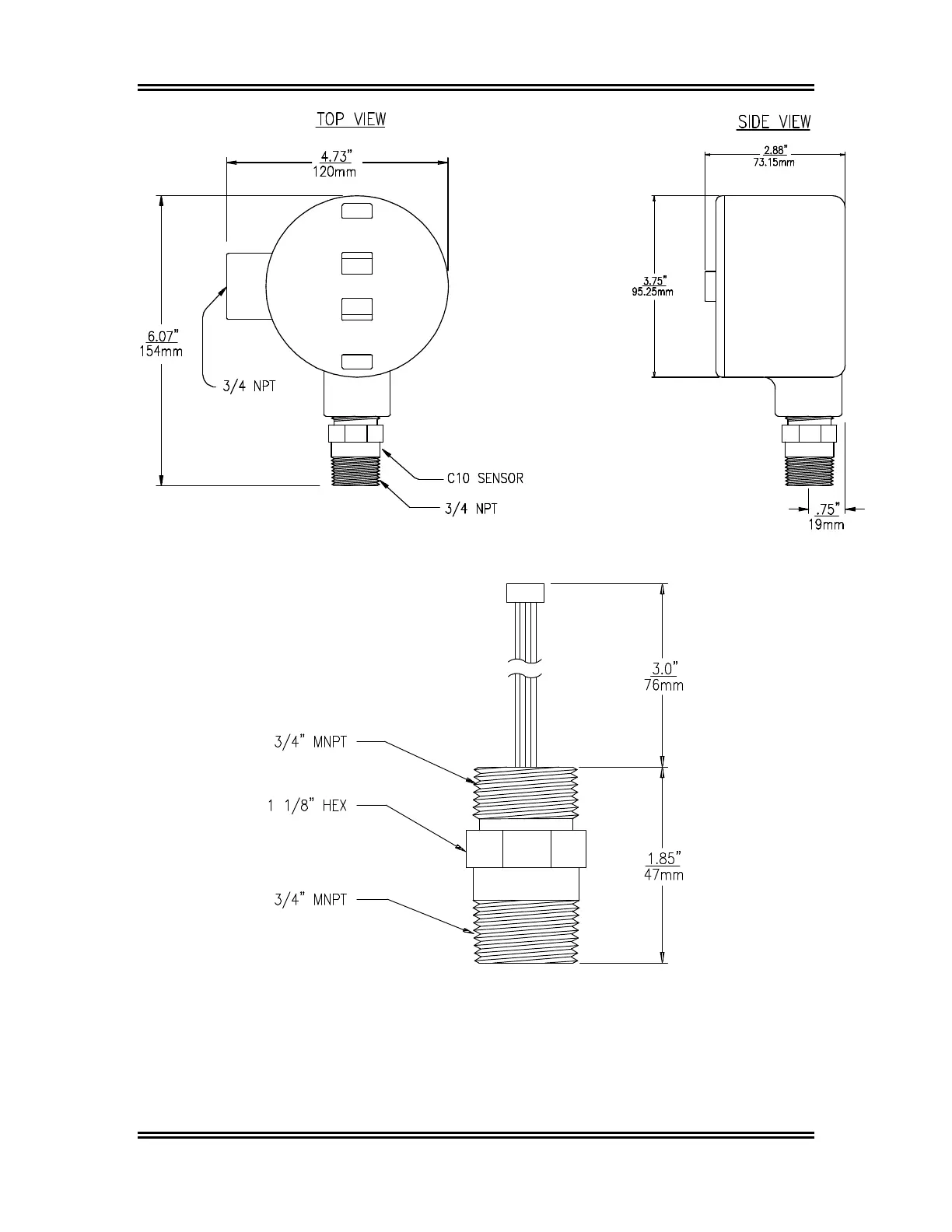

Figure 5-2: Explosion-Proof Sensor/Transmitter Dimensions (ATI-046, ATI-0170)
