Overview
To reduce the risk of serious injury or death to
yourself or others, read the Safety instructions
section found on the previous pages of this
manual before operating the machine.
Design and function
Cobra TTe is designed for tie tamping and can also
be used for medium demolition of material such as
asphalt.
The petrol breaker is designed for vertical use only.
No other use is permitted.
The machine can be operated with Alkylat petrol
with 2 stroke oil 2% (50:1), which is a petrol that is
better for the environment, the motor, and the
operator's health.
To choose the correct working tool, check the tool
shank dimension specified on the machine, and
see the spare parts list.

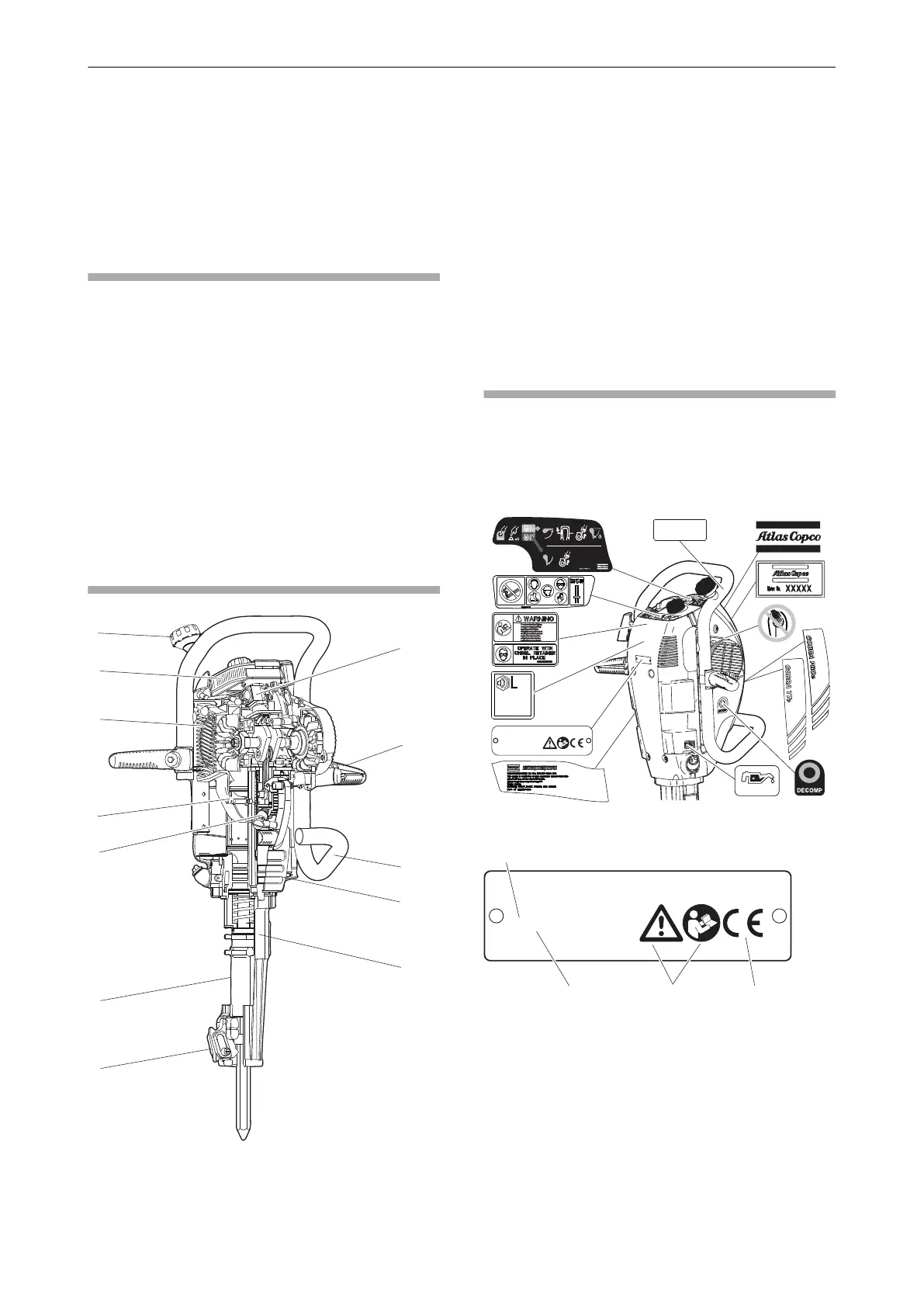

Main parts
A. Fuel filler cap
B. Carburettor
C. Air filter
D. Fan cover / Cooling air inlet
E. Throttle lever
F. Fuel tank
G. Silencer
H. Breaker housing
I. Decompression valve
J. Spark plug
K. Tool chuck
L. Tool retainer
Labels
The machine is fitted with labels containing
important information about personal safety and
machine maintenance. The labels must be in such
condition that they are easy to read. New labels
can be ordered from the spare parts list.
IMP OIL
WA
xxx
dB
GASOLINE MIN 90 OCTANE
OIL MIX 2% (1:50)
Atlas Copco Airpower n.v.
2610 Wilrijk, Belgium
Type:
Ser. No.
EC-approval:
e5*97/68SH3G3*XXXX/XX*XXXX*00
Made in Belgium: XXXX
xxxx
xxxxx.xxxxxx
xxxx-xx-xx
Data plate
Atlas Copco Airpower n.v.
2610 Wilrijk, Belgium
Type:
Ser. No.
EC-approval:
e5*97/68SH3G3*XXXX/XX*XXXX*00
Made in Belgium: XXXX
A
B
C D
A. Machine type
B. Serial number
C. The warning symbol together with the book
symbol means that the user must read the
safety and operating instructions before the
machine is used for the first time.
D. The CE symbol means that the machine is EC-
approved. See the EC Declaration of
COBRA TTe Safety and operating instructions
© Atlas Copco Airpower | 9800 1629 01 | 2018-01-01
Original instructions
11
