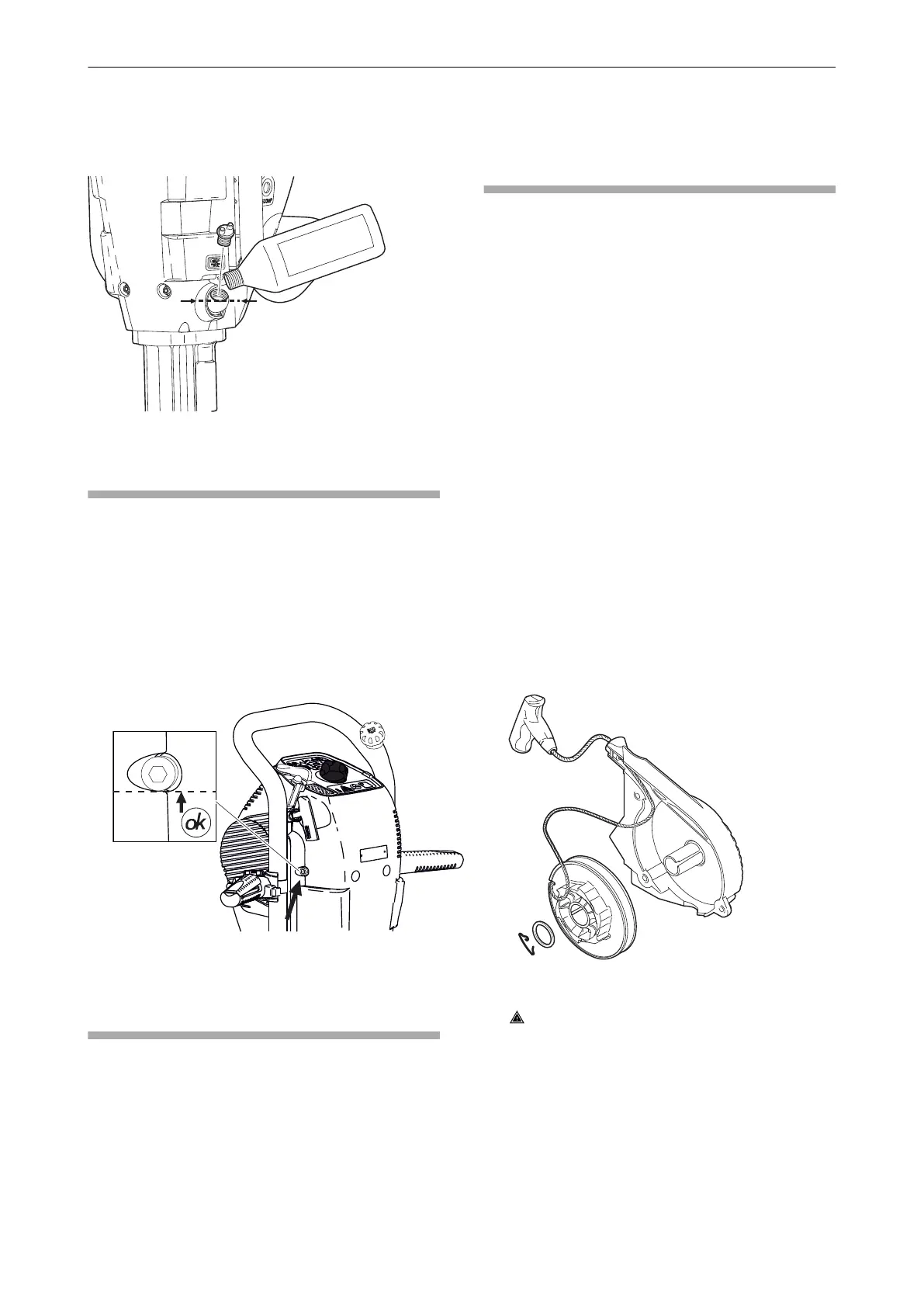

performing the oil check. The oil level must be at
the same height as the filling pipe. When filling,
check that the sealing is undamaged and tighten
properly.
Use only Atlas Copco IMPACT-OIL.
Every month
Gearbox oil level check
1. The level in the gearbox is checked by
unscrewing the oil plug using the spark plug
wrench.
2. Fill the oil using an oil can to avoid spilling. The
oil level is correct when it reaches the bottom of
the filling hole when the machine is standing
upright. The volume of the gearbox is 0.1 litre.
Use only Atlas Copco IMPACT-OIL.
3. When finished filling, screw back the oil plug
with a torque of 2 Nm.
Service
With continuous use of operation, leave the
machine for service according to the following
service interval:
•
3 months of continuous use
•
6 months of continuous use
•
12 months of continuous use
Service must for safety reasons be performed by
authorised personnel at an authorised workshop.
Repair
Replacing the starter cord
Removing the old starter cord
1. Remove the starting mechanism.
2. Pull out about 40 cm (16 in.) of the cord.
3. Place the starter cord in the recess (A) in the
pulley.
4. Rotate the pulley until all tension is released.
5. Remove the lock ring and lift out the pulley
complete with spring and starter cord.
Fitting a new starter cord
6.
WARNING Spring tension
The starter spring may cause personal injury by
striking the operator or other persons.
►
Wear impact resistant eye protection with
side protection and gloves.
Place the knot on the starter spring in the
recess on the inside of the pulley and wind in
the starter spring (anti-clockwise).
Safety and operating instructions COBRA TTe
18 © Atlas Copco Airpower | 9800 1629 01 | 2018-01-01
Original instructions
