44 2920 7090 00
Instruction book
3.5 Cable sizes
Starter Cable size mm²
LF 2 and LF 3 DOL 2.5
LF 5 and LF 7 DOL 4
LF 7 Y/D 4
LF 10 Y/D 6

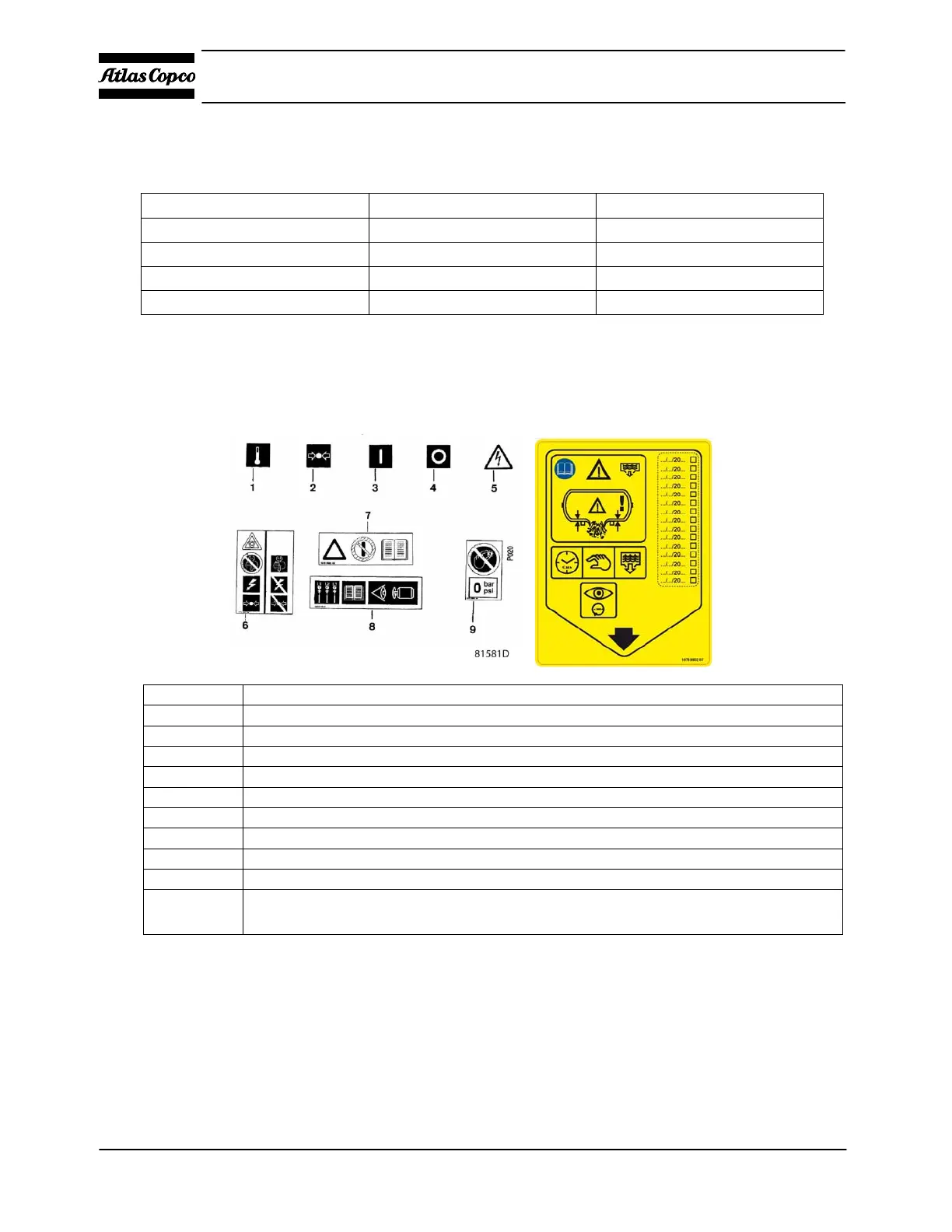

3.6 Pictographs
10
Reference Designation
1
Temperature
2
Pressure
3
On
4
Off
5
Warning: voltage
6
Switch off voltage and depressurize before maintenance or repair
7
Read Instruction book before starting
8
Consult Instruction book for correct rotation direction
9
Do not adjust switch if it is depressurized
10
Drain label - drain out the tank daily - annually have the thickness of the tank walls
checked by a competent body, recording the date of the service task on the label.
