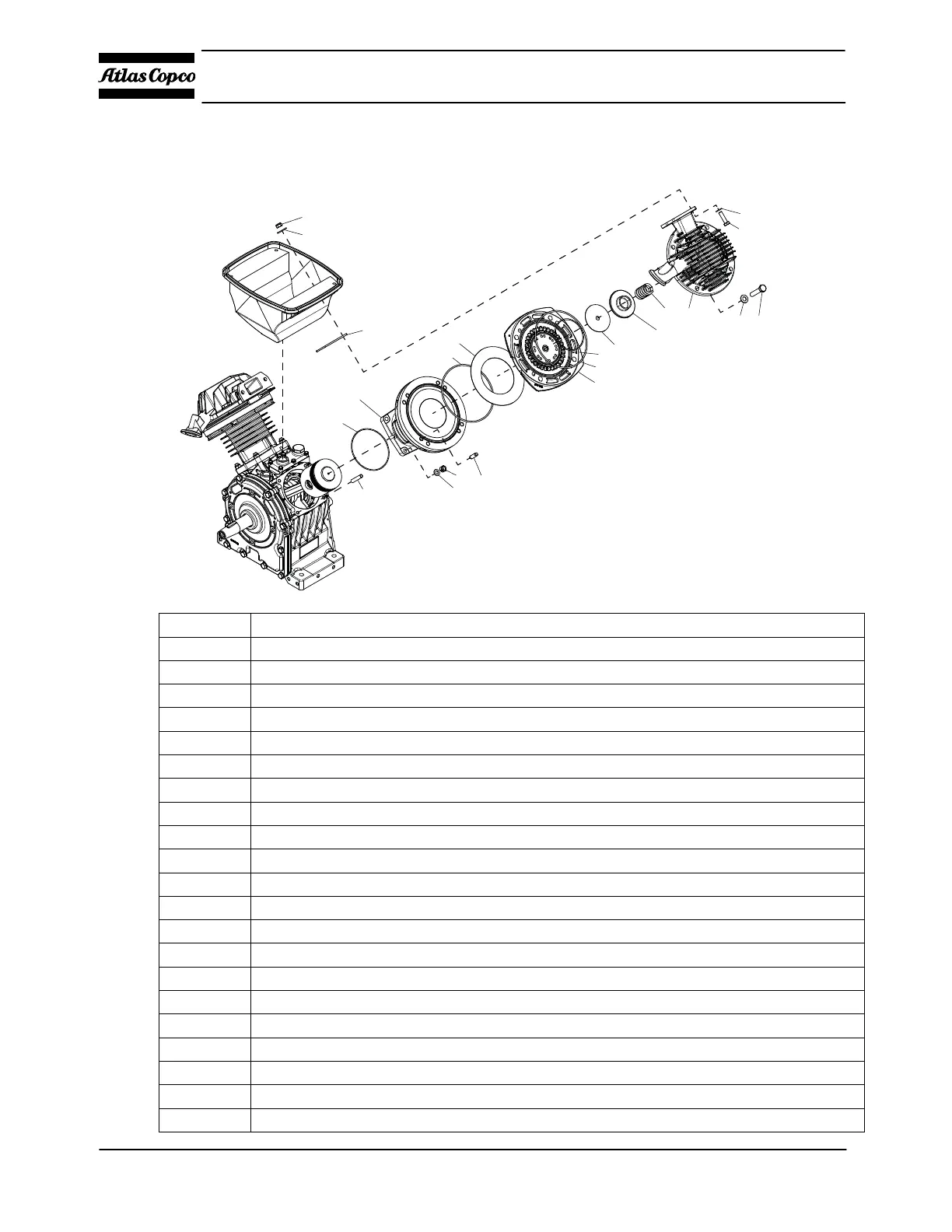

Atlas Copco LF 10 User Manual

52 2920 7090 00
Instruction book
It is highly recommended to replace the valve discs, O-rings and gaskets if disassembling the cylinder
heads.
Cylinder heads, low pressure variants
10
9
7
6
5
4
3
2
11
12
13
1
16
15
17
18
20
19
21
8
14
14
81615D
Reference Description
1 Pin
2 Suction disc
3 Seat
4 O-ring
5 Delivery disc
6 Valve guard
7 Spring
8 Head
9 Bolt
10 Washer
11 Stud
12 Washer
13 Nut
14 O-ring
15 Cylinder
16 O-ring
17 Gasket
18 Bolt
19 Washer
20 Washer
21 Nut
