LUM12 PR EN Service instructions
© Atlas Copco Industrial Technique AB - 9836 927100 00
15

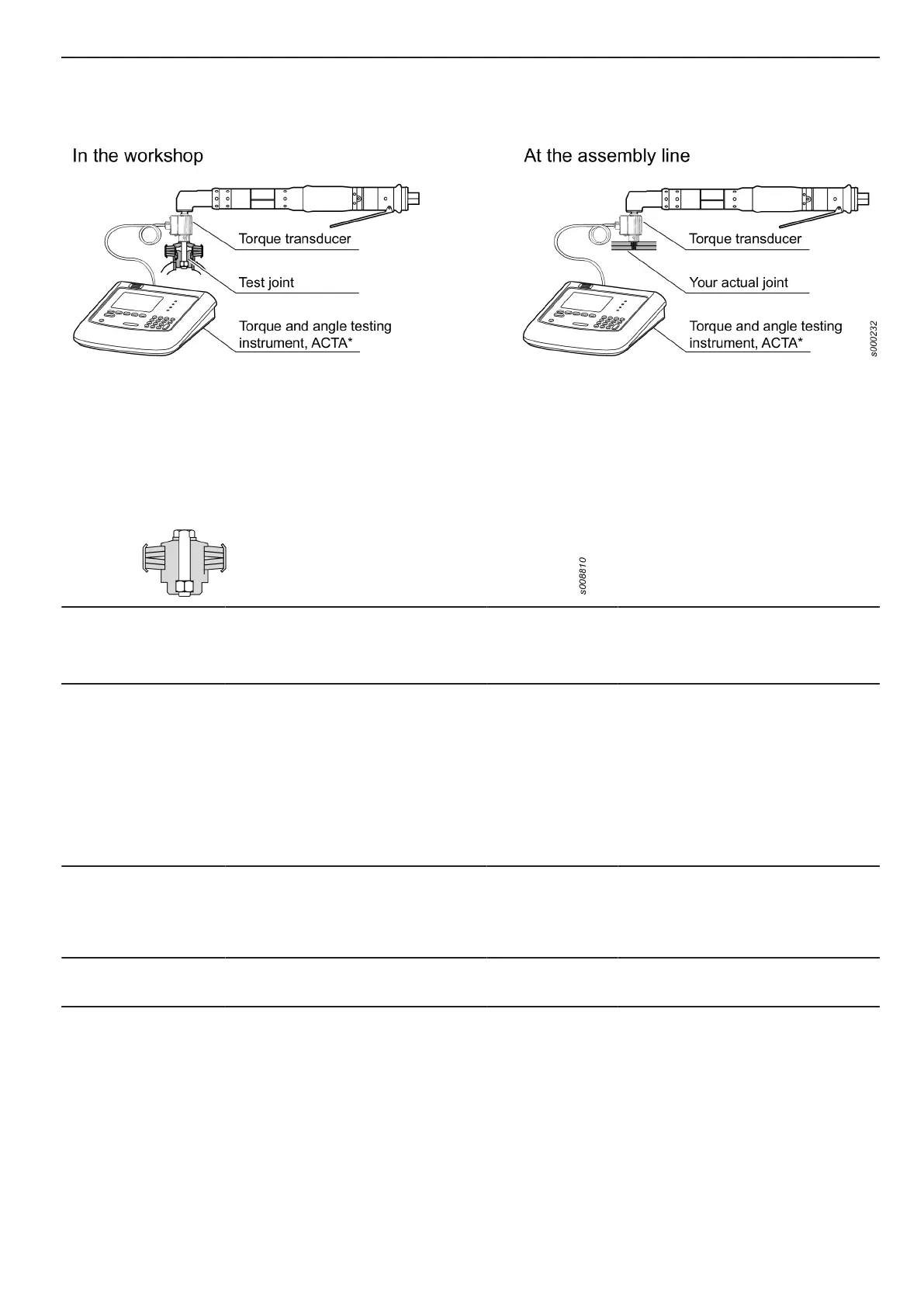

Testing of tightening torque
Torque and angle testing instrument
ACTA* 3000/ 4000. For further informatiom, please see our main catalogue or
separate leaflet.
Testjoint and Transducer
Select testjoint and transducers according to maximum torque of your tool
Test joints - High torque range
Bolt size
Torque range
Nm Ordering No.
Torque rate
Nm/rev.
Degrees at
rated
capacity Service kit*
M8 15 4080 0788 91 10 540 4080 0788 80
M10 30 4080 0789 91 24 450 4080 0789 80
M12 60 4080 0790 91 40 540 4080 0790 80
M14 90 4080 0791 91 60 540 4080 0791 80
M16 200 4080 0866 90 200 360 4080 0865 80
M20 400 4080 0868 90 400 360 4080 0867 80
M30 800 4080 0876 92 800 360 4080 0867 80
* Including 2x bolts, 2x nuts, 2x washers
In-line torque transducers – Torque models
Model Drive Hex inch
Drive Square
inch
Rated capacity
Nm
ft lb Ordering No
IRTT 5-I06 ¼ 5 4 8092 1129 05
IRTT 20-I06 ¼ 20 15 8092 1129 10
IRTT 20-06 ¼ 20 15 8092 1129 15
IRTT 25-10 3/8 25 18 8092 1129 20
IRTT 75-10 3/8 75 55 8092 1129 25
IRTT 180-13 ½ 180 133 8092 1129 30
IRTT 500-20 ¾ 500 369 8092 1129 35
IRTT 750-25 1 750 553 8092 1129 40
