Service instructions EN LUM12 PR
16
© Atlas Copco Industrial Technique AB - 9836 927100 00
Model Drive Hex inch
Drive Square
inch
Rated capacity
Nm
ft lb Ordering No
IRTT 1400-25 1 1400 1033 8092 1129 45
In-line torque transducers – Torque/angle models
Model Drive Hex inch
Drive Square
inch
Rated capacity
Nm
ft lb Ordering No
IRTT 2A-I06 ½ 2 1.5 8092 1130 01
IRTT 5A-I06 ¼ 5 4 8092 1130 06
IRTT 20A-I06 ¼ 20 15 8092 1130 11
IRTT 20A-06 ¼ 20 15 8092 1130 16
IRTT 25A-10 3/8 25 18 8092 1130 21
IRTT 75A-10 3/8 75 55 8092 1130 26
IRTT 180A-13 ½ 180 133 8092 1130 31
IRTT 500A-20 ¾ 500 369 8092 1130 36
IRTT 750A-25 1 750 553 8092 1130 41
IRTT 1400A-25 1 1400 1033 8092 1130 46
IRTT 3000A-38 1½ 3000 3000 8092 1130 51

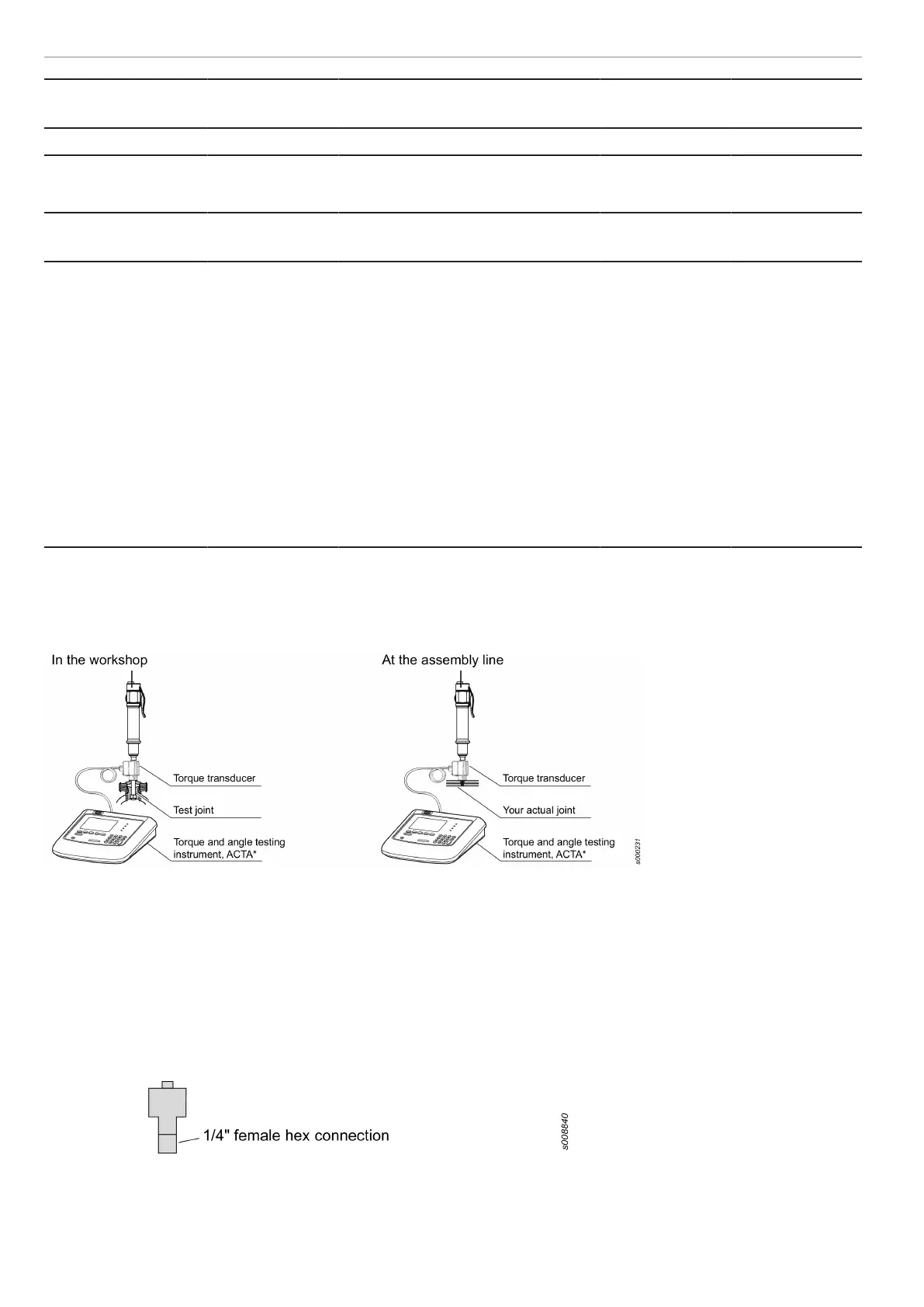

Testing of tightening torque
Torque and angle testing instrument
ACTA* 3000/ 4000. For further informatiom, please see our main catalogue or
separate leaflet.
Testjoint and Transducer
Select testjoint and transducers according to minimum and maximum torque of
your tool.
Lubricate screw and elastic washers with Molykote BR2 Plus.
Soft joints
