Repair instruction No. 170.6/96
PH 5 H, PH 5 F, PH 5 S, PHE 5 S
PAGE
4

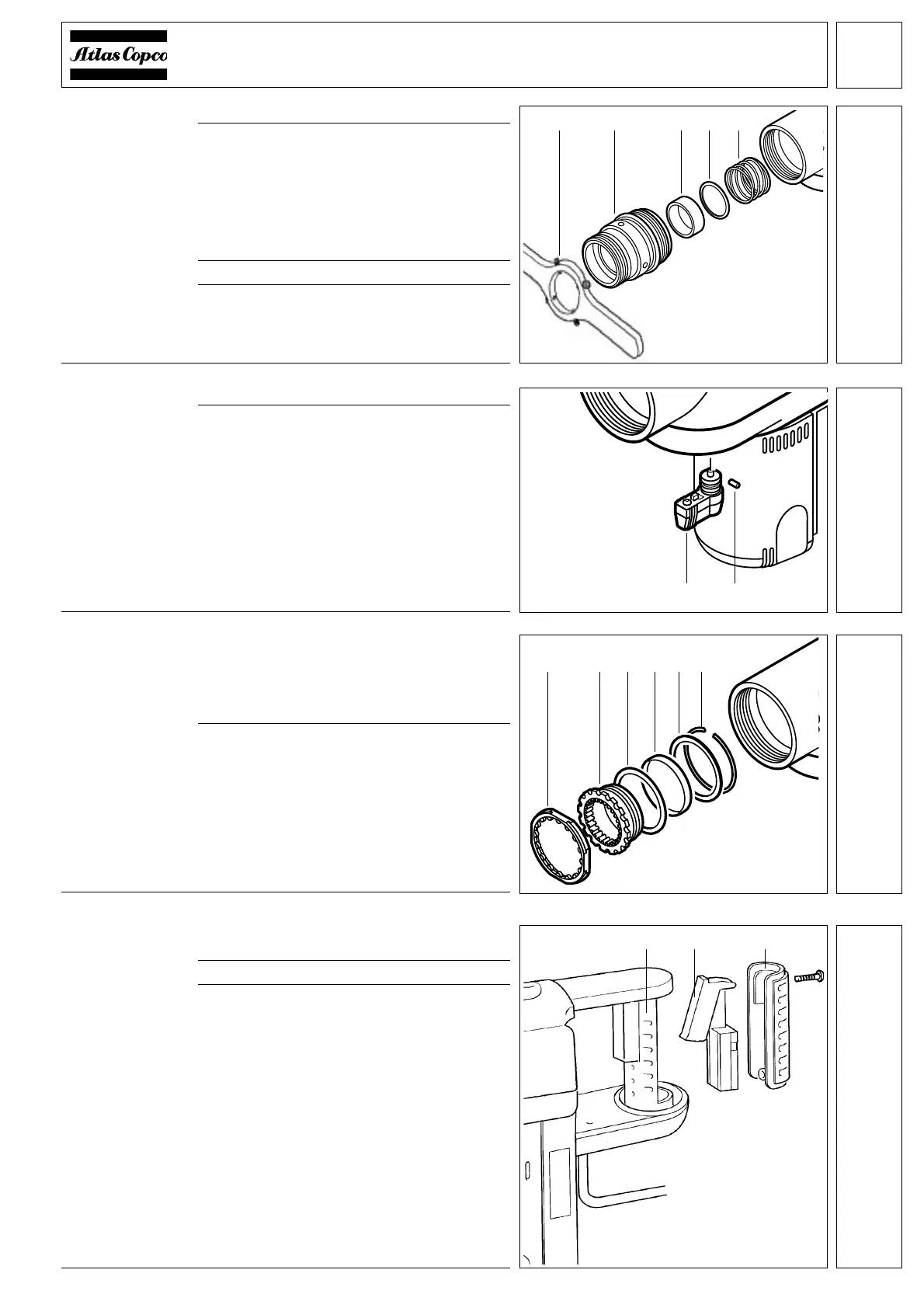

Dismantling the
front bearing
housing
(PH 5 S)
Removing the
switch lever
(change-over
switch hammer
drilling/chiselling
(PH 5 S)
1 Expel the pin (2) with a mandril.
2 Pull out the switch lever (1).
1 Fix the machine between cheeks in a vice.
2 Unscrew the front bearing housing (2) with
service tool no. 9170 3212 00 (1) (left-
handed thread!) and remove it.
☛
If necessary, heat up the top housing
where the front bearing housing is located
with a hot-air blower to soften the screw
locking device.
3 Remove the spring (5) and the disc (4).
4 Press out the ring (3).
12 345
10
12
Dismantling the
roto-stop
(PH 5 S)
1 Remove the following parts from the top
housing by hitting the housing lightly with
a plastic hammer:
- star ring (1)
- star sleeve (2).
2 Detach the circlip (6) from the star
sleeve (2) and remove the rings (3), (4)
and (5).
12345
11
6
Removing the
switch
1 Unscrew and remove the rear handle soft
grip (3).
2 Remove the lead from the switch (2).
3 Remove the switch from the rear handle
front (1).
12 3
1
2
PH 5 S
PHE 5 S
PH 5 S
PHE 5 S
PH 5 S
PHE 5 S
