5
INSTRUCTION MANUAL
LEADING PARTICULARS
GENERAL DESCRIPTION
The QAS108 is an AC generator, built for continuous running
at sites where no electricity is available or as stand-by in
cases of interruption of the mains.
The generator operates at 50 Hz, 230 V in line-to-neutral
mode and 400 V in line-to-line mode. The rated output is
100 kVA.
The QAS108 generator is driven by a water-cooled turbo
charged diesel engine, manufactured by PERKINS.

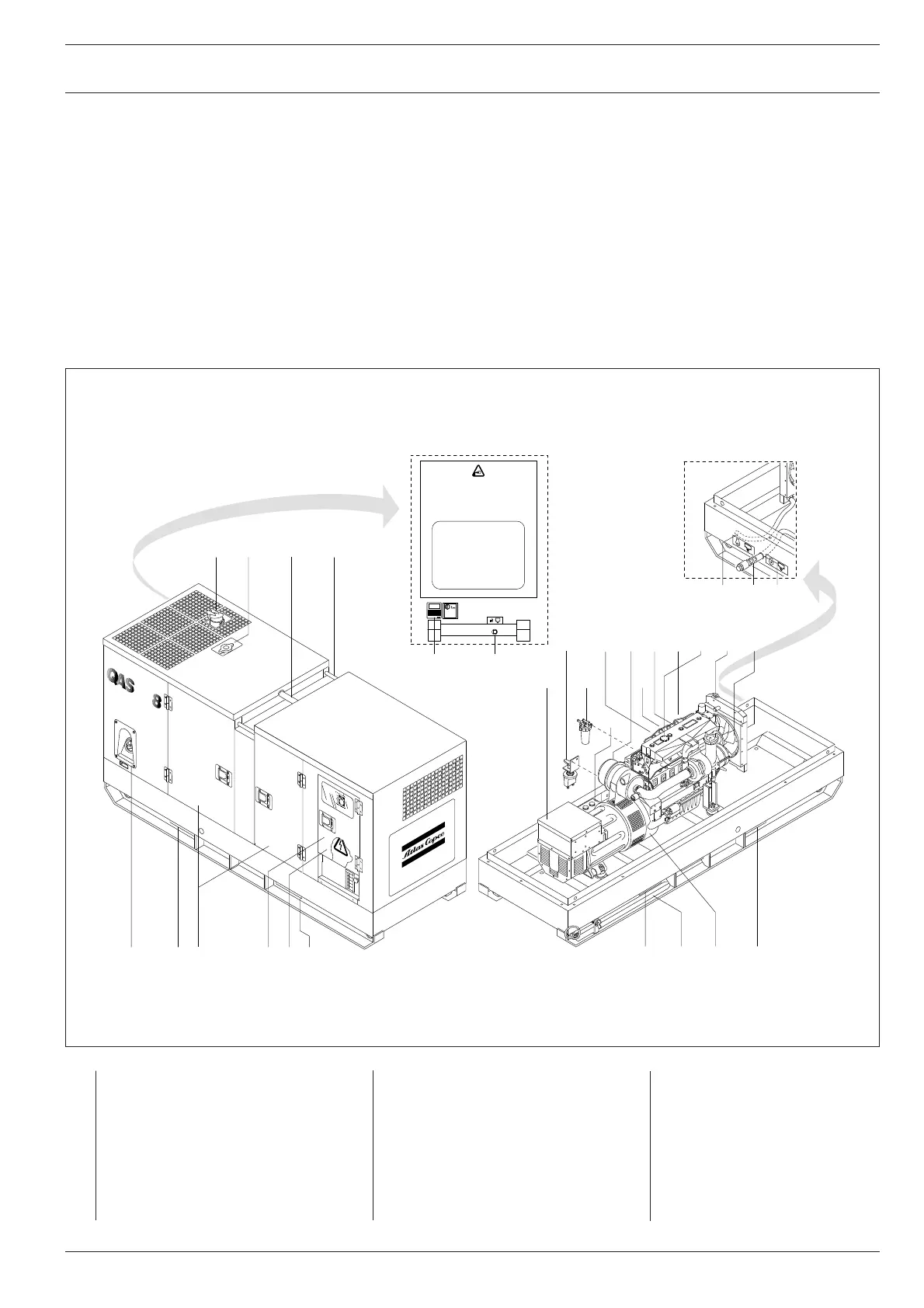

An overview of the main parts is given in the diagram below.
1 Lifting rod
2 Guiding rod
3 Side doors, access to engine and alternator
4 Engine exhaust
5 Data plate
6 Earthing rod
7 Side door, access to control and indicator panel
8 Output terminal board
9 Hole for forklift
A Alternator
AF Air filter
C Coupling
DFO Drain flexible engine oil
DFW Drain flexible cooling water
DH Drain and access hole (in the frame)
DPF Drain plug fuel
E Engine
F Fan
FCF Filler cap fuel
FCO Filler cap engine oil
FCW Filler cap cooling water
FF Fuel filter
FPF Fuel pre-filter
G1 Battery
OF Oil filter
OLD Engine oil level dipstick
S1 Battery switch
0
1
diesel
2
1
DPF
5
ATLAS COPCO AIRPOWER n.v.
1200 Kg
S
1
N
N
N
N
N
Hz
kVA
kW
V
COP
COP
3/N/PE
A
P
V
I
1994
49
400/230
27
34
50
cos phi cl. G2.
MADE BY ATLAS COPCO AIRPOWER n.v. WILRIJK BELGIUM
1615 6945 00
- Y A 3 - 606035 - x x x x x x -
G1
99 6
OLD
C
DFO
OF
4
FCW
FF FCOAF E
F
S1
DFW
A
FCW
DH
39 9
7 8
FCF
100
FPF
