Atlas Copco W2216 User Manual

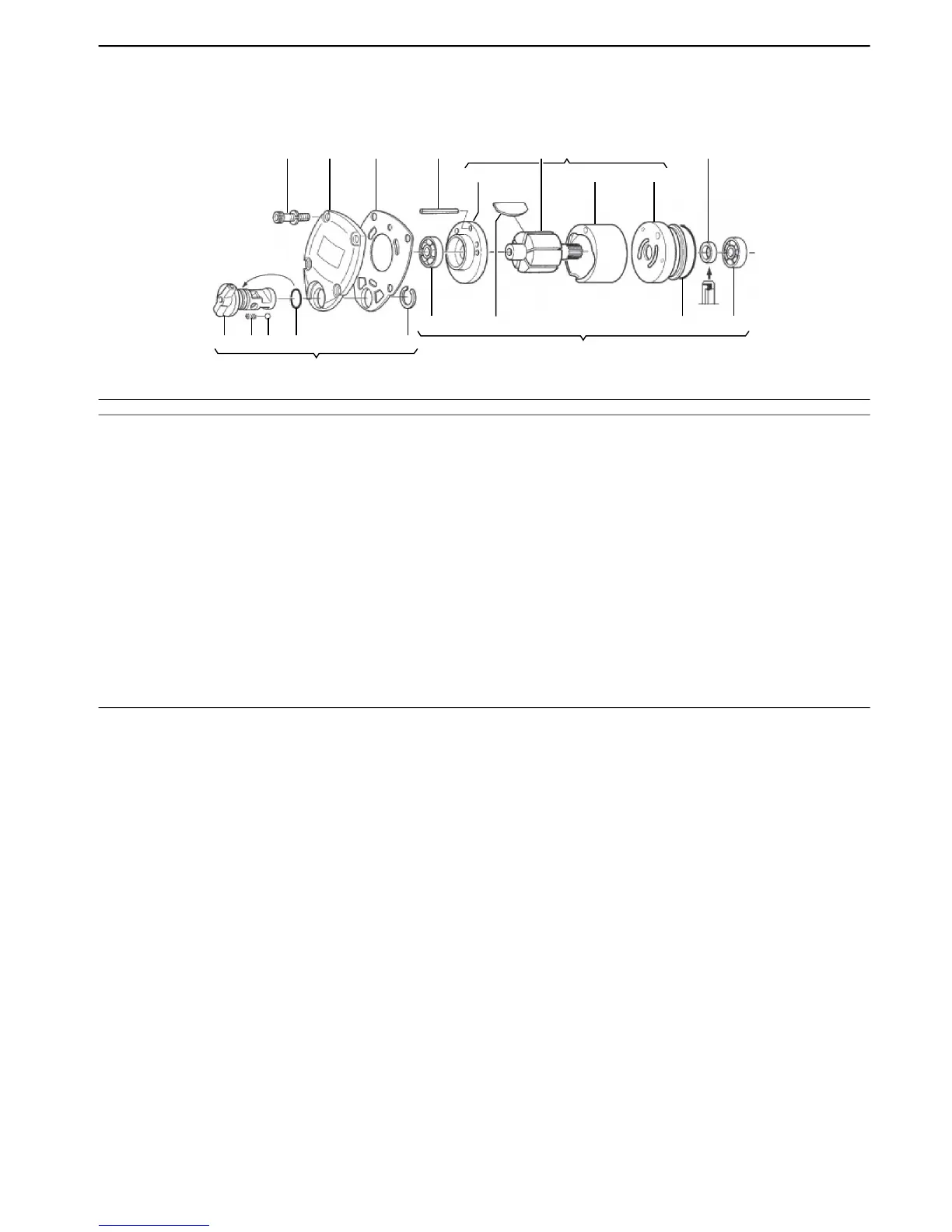

Exploded views/tables
Motor
1
2 3 4 5 6
7 8 9 10 11 12
13 14 15
16
17
18 1819
20
7002160
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Valve kit14112 3001 901(2-6)
Reverse valve1-2
Spring1-3
SteelBall1-4
O-ring1-5
Circlip1-6
5/8" 24UNC, with washerScrew4-7
End cap14112 3001 008
Gasket14112 3001 019
Guide pin14112 0274 0010
Rotor14112 3001 0211
Cylinder kit14112 3001 9112(13-15)
RearEnd plate1-13
Cylinder1-14
FrontEnd plate1-15
Oil seal14112 1312 0016
Motor kit14112 3001 9217(18-20)
Ball bearing2-18
Vane6-19
O-ring1-20
51
© Atlas Copco Tools - 9836 4852 00
Spare part listW2216

Atlas Copco W2216 Specifications

General

Brand	Atlas Copco
Model	W2216
Category	Impact Driver
Language	English
