Atlas Copco W2216 User Manual

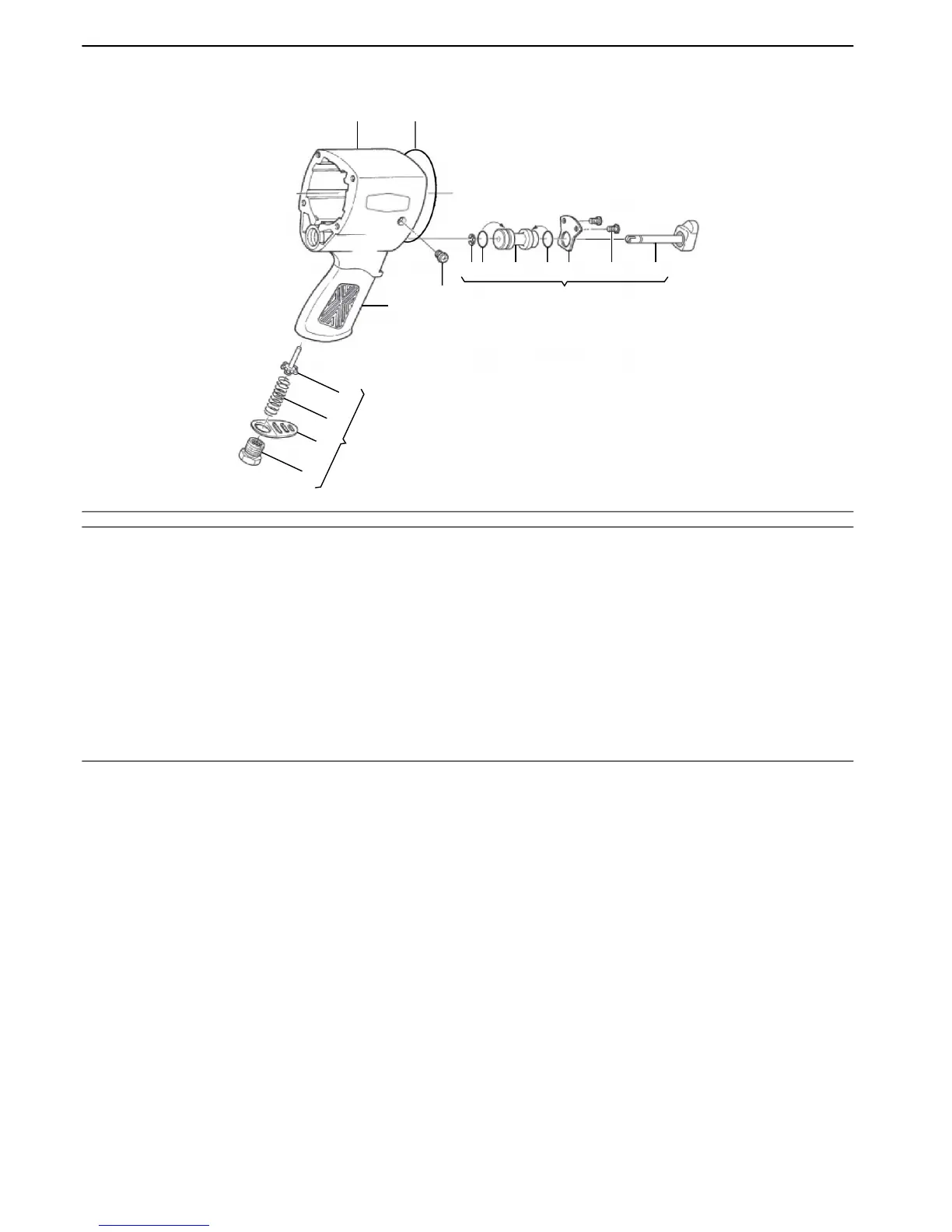

Handle
1 2
3 4
5 6 67 8 9 10
11
12
13
14
15
16
7002170
Remark / Included in Service kitDescriptionQtyOrdering No.Ref. No.
Handle1-1
RedRing1-2
NPTF 1/16-27Oil plug1-3
Trigger kit14112 3001 934(5-10)
Circlip1-5
O-ring2-6
Throttle bushing1-7
Stop cover1-8
Tapping, 3.5x10Screw2-9
Trigger1-10
Rubber cover1-11
Exhaust kit14112 3001 9412(13-16)
Valve stem1-13
Spring1-14
Exhaust deflector1-15
BSPAdapter1-16
© Atlas Copco Tools - 9836 4852 00
52
W2216Spare part list
